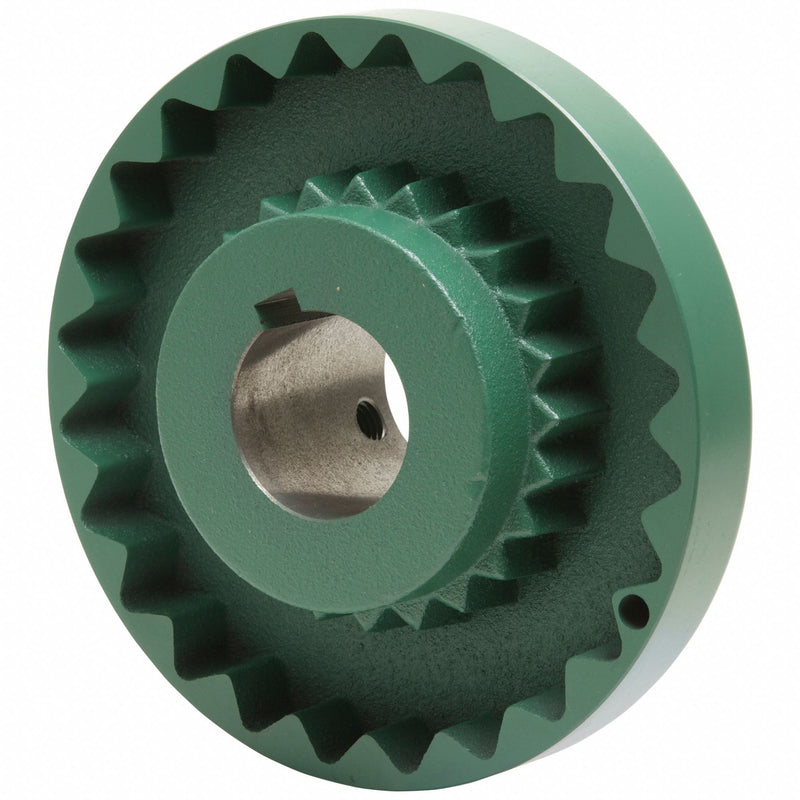

TB Wood's 10S238 Sleeve Coupling Flange, 10 Coupling Size, 3, 600 RPM Max Speed, 7 1/2 in Outside Dia, Inch
UPC: 698672641005 | Harmonization / Schedule B : 8483.60.8000
Country of Origin: Mexico | Shipping Weight: 10.7 lbs
Original price
$246.06
-
Original price
$246.06
Original price
$246.06
$246.06
-
$246.06
Current price
$246.06
Sleeve Coupling Flange, Coupling Size 10, Maximum Speed 3,600 RPM, Maximum Torque 3,735 in-lb, Outside Diameter 7 1/2 in, Bore Type Round Keyed, Hub Diameter 4 3/8 in, Hub Material Cast Iron, Bore Diameter 2 3/8 in, Length through Bore 2 23/32 in, System of Measurement Inch, Hub Body Length 13/16 in, Hub Type Flange Hub, Application Compressors, Conveyors, Motors, Pumps, Bore Tolerance +0.0005 in / +0.0020 in
| Size - Sleeve Couplings | 10 |
|---|---|
| Bore Dia. | 2 3/8 in |
| Outside Dia. | 7.5 in |
| Keyway Size Type | 5/8 in x 5/16 in |
| Hub Dia. (In.) | 7.5 in |
| Keyseat Size (In.) | 5/8 x 5/16 |
| Length through Bore (In.) | 2.72 in |
| Height (In.) | 7.5 in |
| Outside Dia. (In.) | 7.500 |
| Bore Dia. (In.) | 2-3/8 |
| Width (In.) | 2.72 in |
| Length through Bore | 2 23/32 in |
| Screw Thread Size | 3/8"-16 |
| Hub Diameter | 4 3/8 in |
| Keyway Width | 5/8 in |
| Hub Body Length | 13/16 in |
| Coupling Size | 10 |
| Keyway Depth | 5/16 in |
| Outside Diameter | 7 1/2 in |
| Bore Diameter | 2 3/8 in |
| Item - Sleeve Coupling Flanges | Sleeve Coupling Flange |
| Flange Type - Sleeve Couplings | S |
| Bore Type - Couplings | Fixed Bore |
| Ideal For | Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors |
| Material of Construction | cast iron |
| Max. RPM | 3,600 RPM |
| Bushing Required | None |
| Body Style | Type-S Flange Close Coupled |
| Setscrew Location | One Over the Key and One at 90 Degrees |
| Max. Angular Misalignment | 0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves |
| Hub Type | Flange Hub |
| Application | Compressors, Conveyors, Motors, Pumps |
| Weight | 10.5 lb |
| Maximum Torque | 3,735 in-lb |
| System of Measurement | Inch |
| Bore Tolerance | +0.0005 in / +0.0020 in |
| Hub Material | Cast Iron |
| For Misalignment Type | Angular, Parallel |
| Resistance Properties | Chemical Resistant, Oil Resistant |
| Maximum Speed | 3,600 RPM |
| Bore Type | Round Keyed |
| Included Screws | (2) Set Screws |
| Features | 4-way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration |
| Set Screw Location | One Over the Key and One at 90 Degrees |
| Country of Origin | Mexico |
