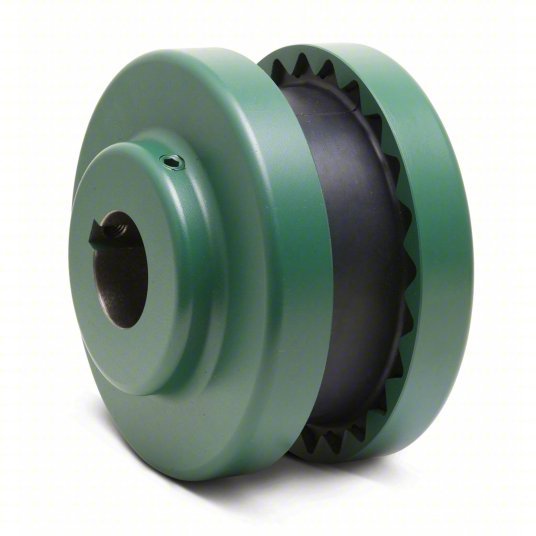

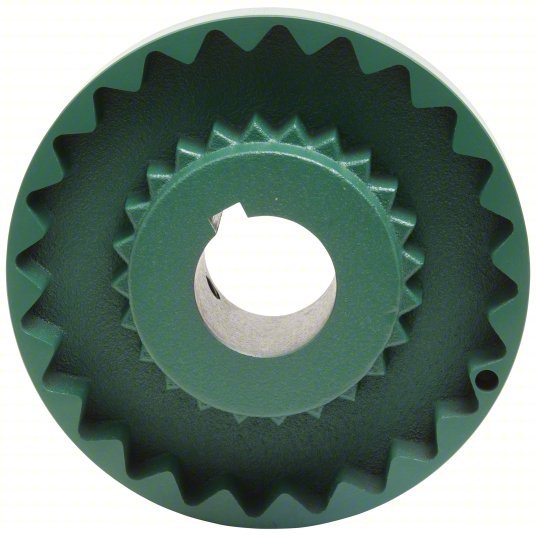

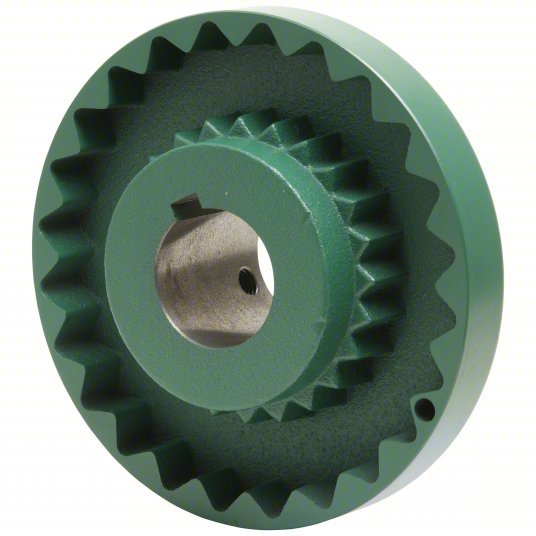

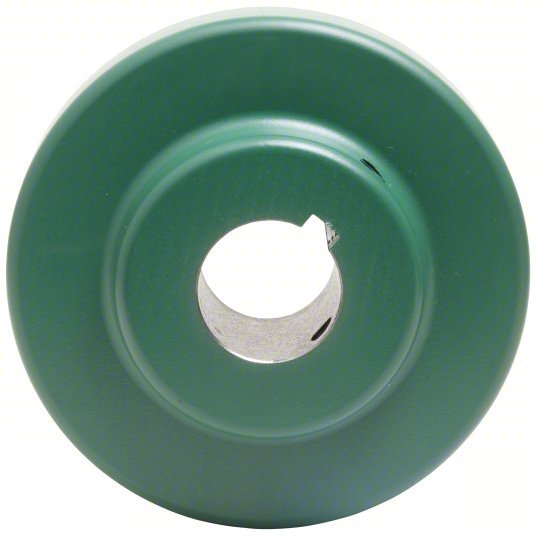

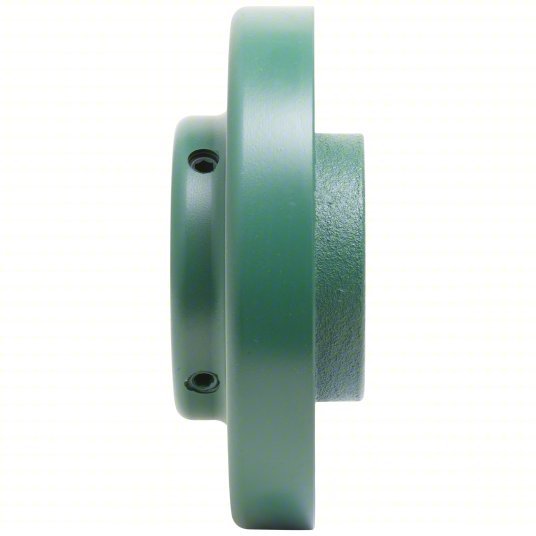

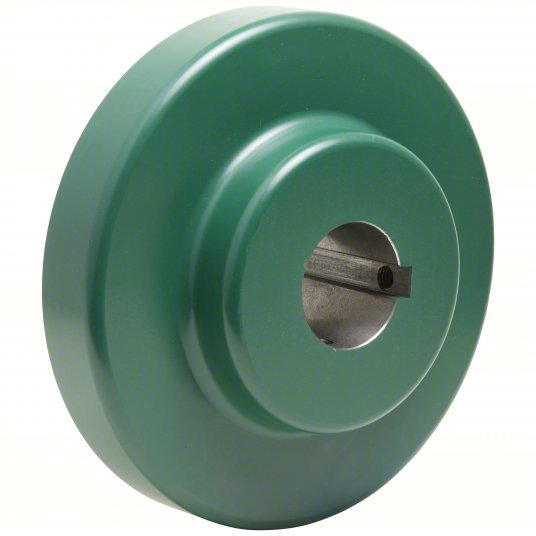

TB Wood's 11S178 Sleeve Coupling Flange 11 Coupling Size, 3,600 RPM Max Speed, 8 5/8 in Outside Dia, Inch

Sleeve Coupling Flange, Coupling Size 11, Maximum Speed 3,600 RPM, Maximum Torque 5,890 in-lb, Outside Diameter 8 5/8 in, Bore Type Round Keyed, Hub Diameter 5 1/4 in, Hub Material Cast Iron, For Bushing Size Not Applicable, Bore Diameter 1 7/8 in, Length through Bore 3 7/16 in, System of Measurement Inch, Hub Body Length 1 1/8 in, Hub Type Flange Hub, Application Compressors, Conveyors, Motors, Pumps, Bore Tolerance +0.0005 in / +0.0015 in

Flange Type - Sleeve Couplings	S
Bore Type - Couplings	Fixed Bore
Item	Sleeve Coupling Flange
Bushing Required	None
Setscrew Location	One Over the Key and One at 90 Degrees
Max. RPM	3,600 RPM
Material of Construction	cast iron
Body Style	Type-S Flange Close Coupled
Ideal For	Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
Max. Angular Misalignment	0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
Application	Compressors, Conveyors, Motors, Pumps
Weight	16.6 lb
Hub Type	Flange Hub
Included Screws	(2) Set Screws
Hub Material	Cast Iron
Set Screw Location	One Over the Key and One at 90 Degrees
Bore Tolerance	+0.0005 in / +0.0015 in
Bore Type	Round Keyed
Features	4-way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration
System of Measurement	Inch
Maximum Speed	3,600 RPM
For Misalignment Type	Angular, Parallel
Maximum Torque	5,890 in-lb
Resistance Properties	Chemical Resistant, Oil Resistant

Size - Sleeve Couplings	11
Bore Dia.	1 7/8 in
Outside Dia.	8.625 in
Keyway Size Type	1/2 in x 1/4 in
Keyseat Size (In.)	1/2 x 1/4
Outside Dia. (In.)	8.625
Hub Dia. (In.)	8.625 in
Height (In.)	8.625 in
Bore Dia. (In.)	1-7/8
Length through Bore (In.)	3.44 in
Width (In.)	3.44 in
Length through Bore	3 7/16 in
Outside Diameter	8 5/8 in
Screw Thread Size	3/8"-16
Hub Diameter	5 1/4 in
Coupling Size	11
Bore Diameter	1 7/8 in
Keyway Width	1/2 in
Hub Body Length	1 1/8 in
Keyway Depth	1/4 in
