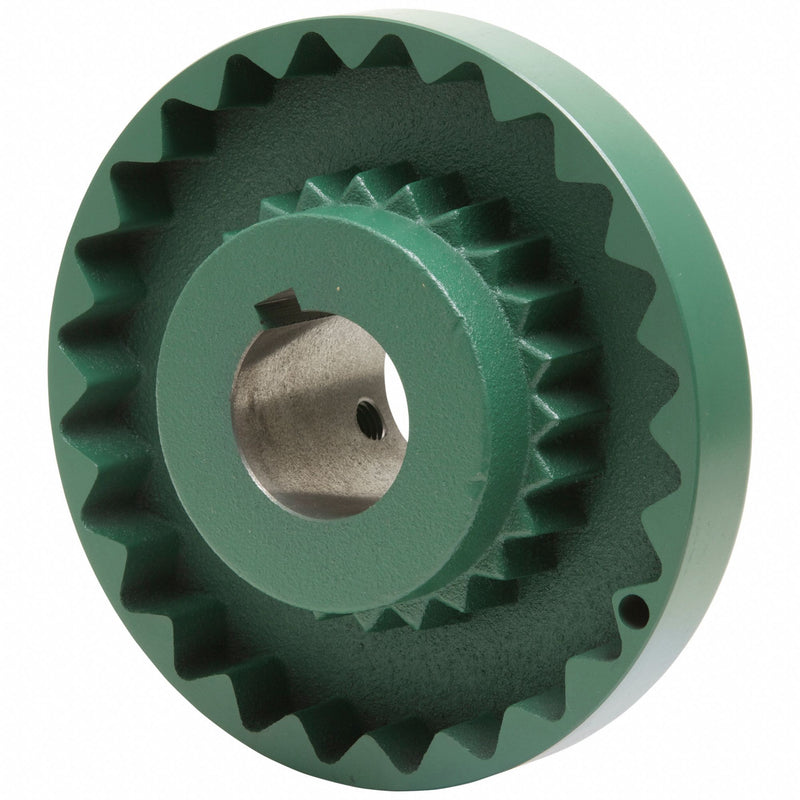

TB Wood's 8S178 Sleeve Coupling Flange, 8 Coupling Size, 4, 500 RPM Max Speed, 5 29/64 in Outside Dia, Inch
UPC: 698672640596 | Harmonization / Schedule B : 8483.60.8000
Country of Origin: Mexico | Shipping Weight: 4.13 lbs
Original price
$129.46
-
Original price
$129.46
Original price
$129.46
$129.46
-
$129.46
Current price
$129.46
Sleeve Coupling Flange, Coupling Size 8, Maximum Speed 4,500 RPM, Maximum Torque 1,475 in-lb, Outside Diameter 5 29/64 in, Bore Type Round Keyed, Hub Diameter 3 1/4 in, Hub Material Cast Iron, Bore Diameter 1 7/8 in, Length through Bore 2 3/32 in, System of Measurement Inch, Hub Body Length 3/4 in, Hub Type Flange Hub, Application Compressors, Conveyors, Motors, Pumps, Bore Tolerance +0.0005 in / +0.0015 in
| Size - Sleeve Couplings | 8 |
|---|---|
| Bore Dia. | 1 7/8 in |
| Outside Dia. | 5.45 in |
| Keyway Size Type | 1/2 in x 1/4 in |
| Hub Dia. (In.) | 5.45 in |
| Keyseat Size (In.) | 1/2 x 1/4 |
| Outside Dia. (In.) | 5.450 |
| Height (In.) | 5.45 in |
| Bore Dia. (In.) | 1-7/8 |
| Width (In.) | 2.09 in |
| Length through Bore (In.) | 2.09 in |
| Length through Bore | 2 3/32 in |
| Hub Diameter | 3 1/4 in |
| Outside Diameter | 5 29/64 in |
| Bore Diameter | 1 7/8 in |
| Keyway Depth | 1/4 in |
| Coupling Size | 8 |
| Screw Thread Size | 3/8"-16 |
| Hub Body Length | 3/4 in |
| Keyway Width | 1/2 in |
| Item - Sleeve Coupling Flanges | Sleeve Coupling Flange |
| Flange Type - Sleeve Couplings | S |
| Bore Type - Couplings | Fixed Bore |
| Setscrew Location | One Over the Key and One at 90 Degrees |
| Max. Angular Misalignment | 0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves |
| Bushing Required | None |
| Max. RPM | 4,500 RPM |
| Body Style | Type-S Flange Close Coupled |
| Material of Construction | cast iron |
| Ideal For | Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors |
| Weight | 4.4 lb |
| Application | Compressors, Conveyors, Motors, Pumps |
| Hub Type | Flange Hub |
| Hub Material | Cast Iron |
| Resistance Properties | Chemical Resistant, Oil Resistant |
| Maximum Speed | 4,500 RPM |
| Maximum Torque | 1,475 in-lb |
| Bore Type | Round Keyed |
| Set Screw Location | One Over the Key and One at 90 Degrees |
| Included Screws | (2) Set Screws |
| Features | 4-way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration |
| Bore Tolerance | +0.0005 in / +0.0015 in |
| System of Measurement | Inch |
| For Misalignment Type | Angular, Parallel |
| Country of Origin | Mexico |
