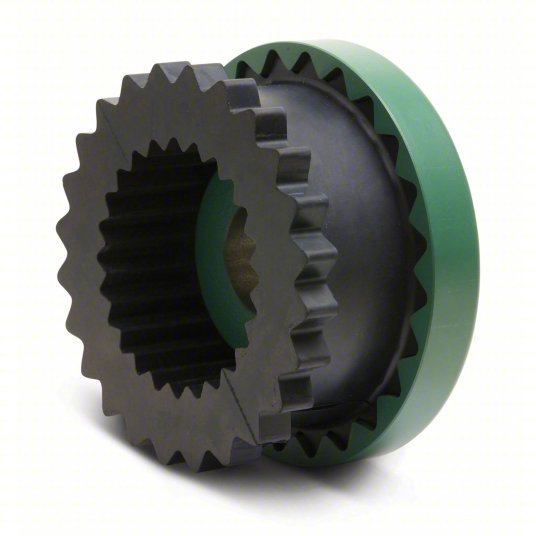

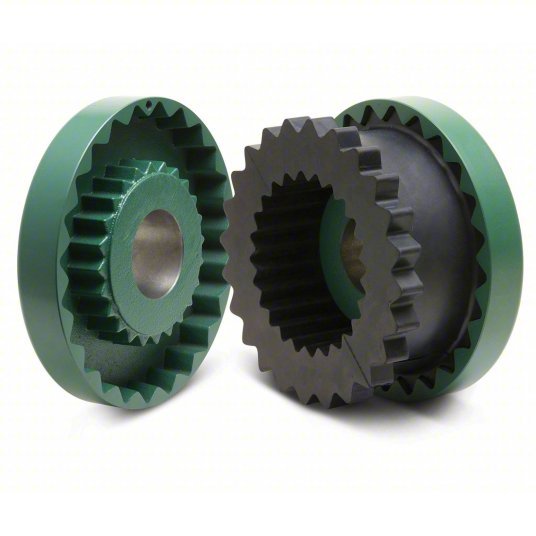

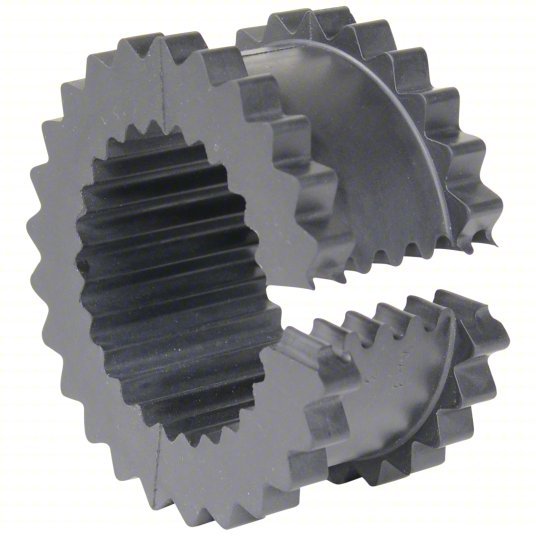

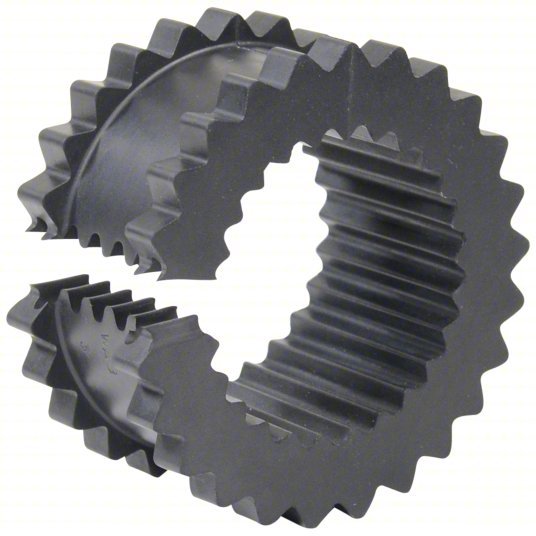

TB Wood's 9JS Sleeve Coupling Insert 9 Coupling Size, 3,750 RPM Max Speed, 2,340 in-lb Rated Torque

Sleeve Coupling Insert, Coupling Size 9, Maximum Speed 3,750 RPM, Maximum Torque 2,340 in-lb, Outside Diameter 6 in, Insert Construction 1-Piece Split, Angular Misalignment 1 Degrees , Horsepower @ 100 RPM 3.7 hp, Insert Material EPDM, Insert Width 3 in, Parallel Misalignment 0.025 in, System of Measurement Inch, Torsional Stiffness 6,875 in-lb/rad, Application Blowers, Compressors, Conveyors, Mixers, Motors, Pumps, Maximum Operating Temperature 275 Degrees F

Flange Type - Sleeve Couplings	JES
Insert Design - Couplings	One-Piece Split
Material - Inserts	EPDM Rubber
Rated Torque	2,340 in-lb
Max. RPM	3,750 RPM
HP Rating @ 100 RPM	3.71 hp
Body Style	9JES
Item	Sleeve Coupling Insert
Insert Material	EPDM
HP Rating @ 1200 RPM	44.55 hp
Insert Design	One-Piece Split
Item - Sleeve Coupling Inserts	Sleeve Coupling Insert
HP Rating @ 3600 RPM	133.66 hp
HP Rating @ 1800 RPM	66.83 hp
Application	Blowers, Compressors, Conveyors, Mixers, Motors, Pumps
Operating Temp.	-30 Degrees to 275 Degrees F
Horsepower @ 100 RPM	3.7 hp
System of Measurement	Inch
Parallel Misalignment	0.025 in
Resistance Properties	Chemical Resistant, Oil Resistant
Horsepower @ RPM	134 hp @3,600 RPM, 67 hp @1,800 RPM
Maximum Speed	3,750 RPM
For Misalignment Type	Angular, Parallel
Torsional Stiffness	6,875 in-lb/rad
Minimum Operating Temperature	-30 Degrees F
Angular Misalignment	1 Degrees
Features	4-Way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration
Maximum Torque	2,340 in-lb
Maximum Operating Temperature	275 Degrees F
Weight	1.46 lb
