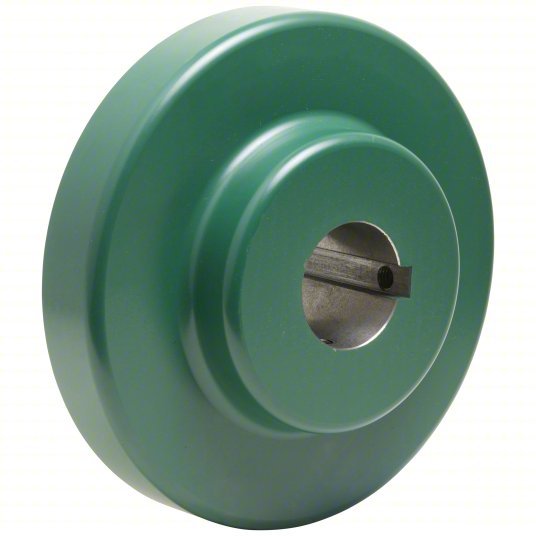

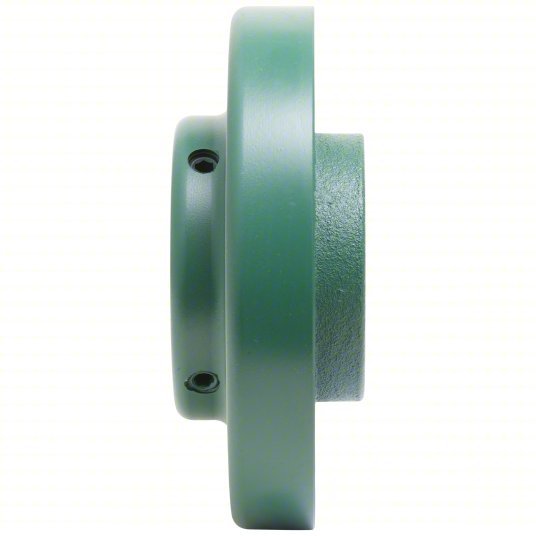

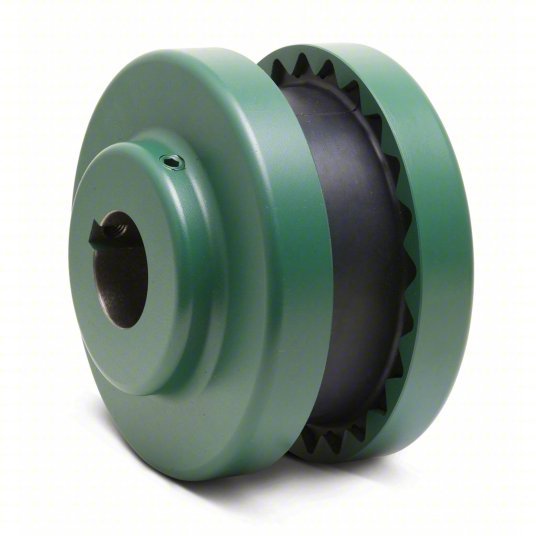

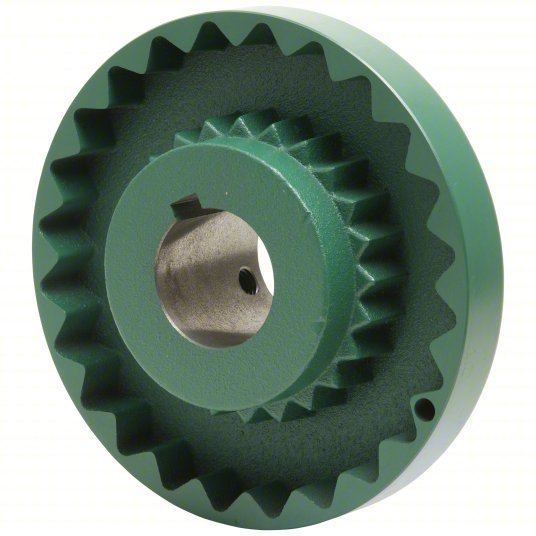

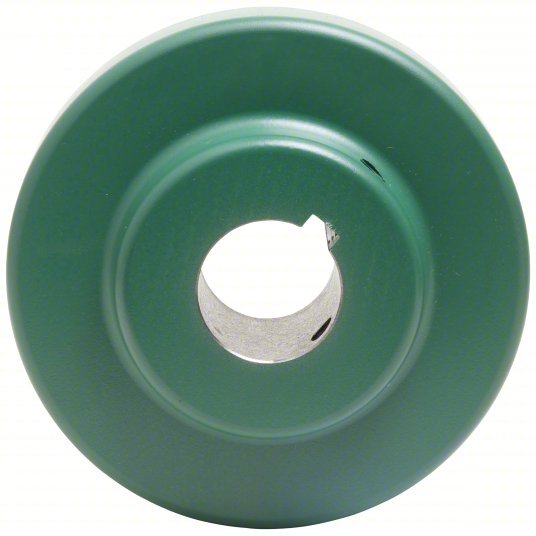

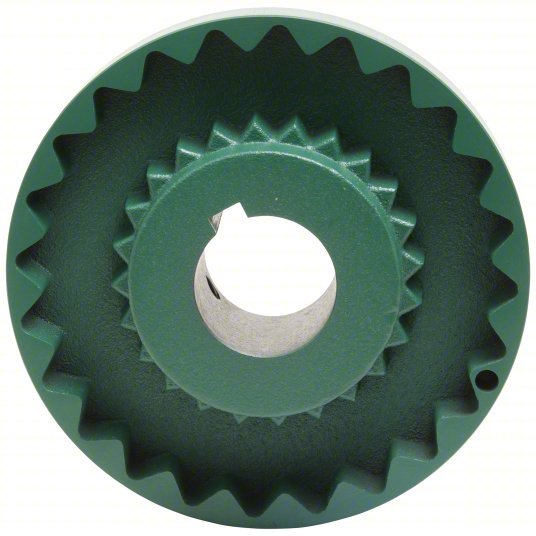

TB Wood's 9S218 Sleeve Coupling Flange 9 Coupling Size, 3,750 RPM Max Speed, 6 11/32 in Outside Dia, Inch

Sleeve Coupling Flange, Coupling Size 9, Maximum Speed 3,750 RPM, Maximum Torque 2,340 in-lb, Outside Diameter 6 11/32 in, Bore Type Round Keyed, Hub Diameter 3 5/8 in, Hub Material Cast Iron, For Bushing Size Not Applicable, Bore Diameter 2 1/8 in, Length through Bore 2 13/32 in, System of Measurement Inch, Hub Body Length 25/32 in, Hub Type Flange Hub, Application Compressors, Conveyors, Motors, Pumps, Bore Tolerance +0.0005 in / +0.0020 in

Flange Type - Sleeve Couplings	S
Bore Type - Couplings	Fixed Bore
Bushing Required	None
Setscrew Location	One Over the Key and One at 90 Degrees
Ideal For	Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
Max. RPM	3,750 RPM
Material of Construction	cast iron
Max. Angular Misalignment	0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
Body Style	Type-S Flange Close Coupled
Item	Sleeve Coupling Flange
Application	Compressors, Conveyors, Motors, Pumps
Hub Type	Flange Hub
Weight	6.8 lb
Maximum Speed	3,750 RPM
Bore Tolerance	+0.0005 in / +0.0020 in
Set Screw Location	One Over the Key and One at 90 Degrees
Resistance Properties	Chemical Resistant, Oil Resistant
Features	4-way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration
System of Measurement	Inch
Maximum Torque	2,340 in-lb
Included Screws	(2) Set Screws
Hub Material	Cast Iron
Bore Type	Round Keyed
For Misalignment Type	Angular, Parallel
