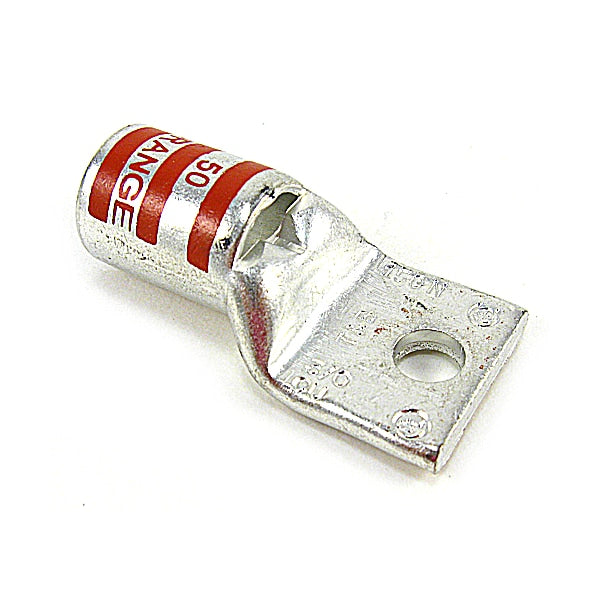

Thomas & Betts 54165-TB Compression Lug, Stranded Wire Type, 1/2 in Stud Size, Std, Copper
UPC: | Harmonization / Schedule B : 8535.90.8020
Country of Origin: Mexico | Shipping Weight: 0.09 lbs
Original price
$33.66
-
Original price
$33.66
Original price
$33.66
$33.66
-
$33.66
Current price
$33.66
Compression Lug, Barrel Size Standard, Color Code Orange, Die Code 50, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Maximum 3/0 AWG, Inspection Hole Yes, Material Copper, Maximum Voltage 35 kV, Standards CSA Certified, UL Listed, Number of Holes 1, For Wire Type Stranded
| For Conductor Material | Copper |
|---|---|
| Material | Copper |
| Tongue Angle | Straight |
| Inspection Hole | Yes |
| Die Code | 50 |
| Color Code | Orange |
| Standards | CSA Certified, UL Listed |
| Peep Hole | Yes |
| Connector Type | Standard Barrel |
| Finish | Tin-Plated |
| For Wire Type | Stranded |
| Maximum Voltage | 35 kV |
| Die Color | Orange |
| B (inches) | 1.25 |
| Number of Studs | 1 |
| Barrel Shape | Standard |
| C (inches) | 0.92 |
| F (inches) | 0.5 |
| A (inches) | 2.35 |
| E (inches) | 0.63 |
| Marking | Standard |
| D (inches) | 0.13 |
| Hole Shape | Round |
| Connecting angle | 180° (horizontal) |
| Insulation | None |
| Insulated | No |
| Number of mounting holes | 1 |
| Voltage Rating | 35 kV |
| Surface protection | Tinned |
| Number of Holes | 1 |
| Country of Origin | Mexico |
