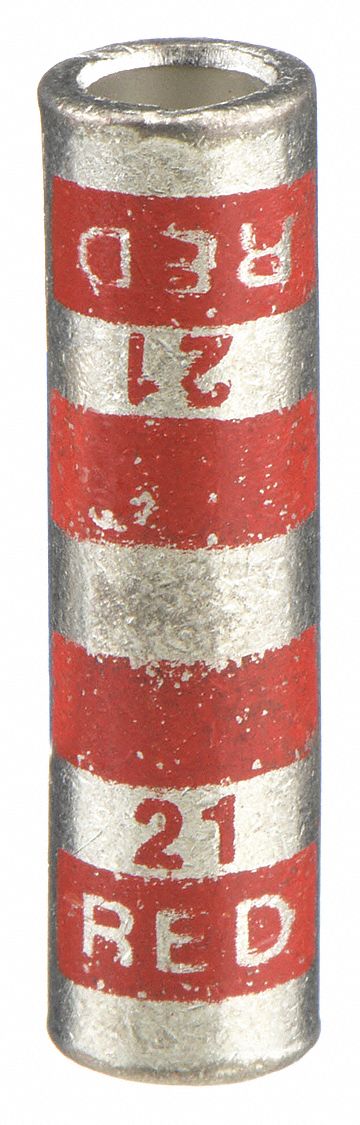

Thomas & Betts 54504 Open Barrel Splice, 8 AWG Wire Size, Red Code, 1 in, Copper Barrel, 21 Die
UPC: | Harmonization / Schedule B : 8536.90.4000
Country of Origin: Mexico | Shipping Weight: 0.1 lbs
Original price
$7.05
-
Original price
$7.05
Original price
$7.05
$7.05
-
$7.05
Current price
$7.05
Open Barrel Splice, Barrel Finish Tin Plated, Barrel Size Standard, Color Code Red, Die Code 21, For Conductor Material Copper, For Wire Type Class G, H, I, K, M, Material Copper, Maximum Voltage 35 kV, Maximum Wire Size 8 AWG, Number of Crimps 1, Overall Length 1 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.27 in
| Maximum Wire Size | 8 AWG |
|---|---|
| Minimum Wire Size | 8 AWG |
| Outside Dia. | 0.27 in |
| Length | 1 in |
| Overall Length | 1 in |
| Barrel Size | Standard |
| Maximum Wire Insulation Diameter | 0.27 in |
| Barrel Outside Diameter | 0.27 in |
| For Minimum Wire Size - Solid | 8 AWG |
| For Maximum Wire Size - Solid | 8 AWG |
| Wire Rope Length | 1 in |
| Type | Splice |
| Color | Red |
| Insulation Material | None |
| Maximum Voltage | 35 kV |
| Maximum Operating Temperature | 194 Degrees F |
| RoHS Compliant | Yes |
| Die Code | 21 |
| Material | Copper |
| Standards | CSA Certified, UL Listed |
| For Wire Type | Class G, H, I, K, M |
| Number of Crimps | 1 |
| Special Features | Easy To Insulate and Provide a Low-Resistance Connection of High Quality and Low Installed Cost, Two-Way Connectors Provide High Pullout Values |
| Maximum Conductors | 1 |
| For Conductor Material | Copper |
| Compatible with Product Type | Copper Conductor |
| Seam Style | Seamless |
| Features | Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost. |
| Finish | Tin Plated |
| Application | Applications certified to 600 V and recommended up to 35 kV¥ |
| Termination Style | Crimp |
| Color Code | Red |
| Contact Material | Copper |
| Barrel Finish | Tin Plated |
| Contact Finish | Tin |
| Country of Origin | Mexico |
