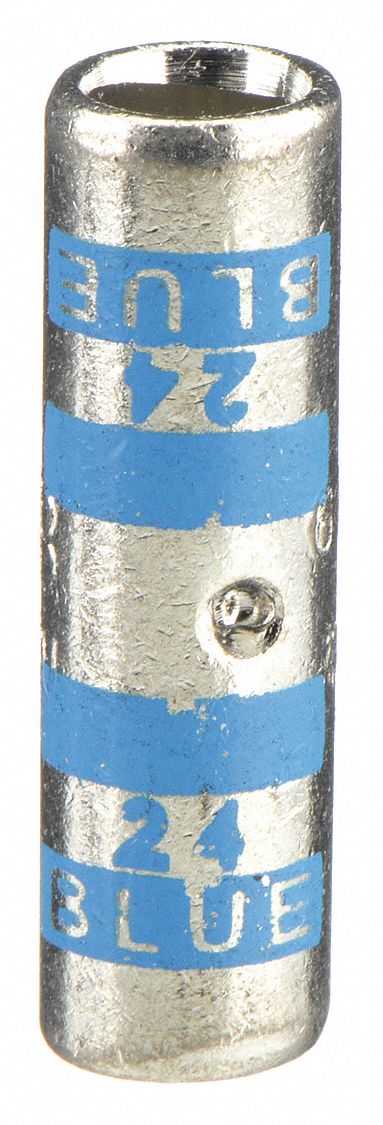

Thomas & Betts 54505 Open Barrel Splice, 6 AWG Wire Size, Blue Code, 1 in, Copper Barrel, 24 Die
UPC: | Harmonization / Schedule B : 8536.90.4000
Country of Origin: Mexico | Shipping Weight: 0.1 lbs
Original price
$11.73
-
Original price
$11.73
Original price
$11.73
$11.73
-
$11.73
Current price
$11.73
Open Barrel Splice, Barrel Finish Tin Plated, Barrel Size Standard, Color Code Blue, Die Code 24, For Conductor Material Copper, For Wire Type Class G, H, I, K, M, Material Copper, Maximum Voltage 35 kV, Maximum Wire Size 6 AWG, Number of Crimps 1, Overall Length 1 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.3 in
| Maximum Wire Size | 6 AWG |
|---|---|
| Minimum Wire Size | 6 AWG |
| Outside Dia. | 0.3 in |
| Length | 1 in |
| Overall Length | 1 in |
| Barrel Size | Standard |
| Maximum Wire Insulation Diameter | 0.3 in |
| Barrel Outside Diameter | 0.3 in |
| For Maximum Wire Size - Solid | 6 AWG |
| For Minimum Wire Size - Solid | 6 AWG |
| Wire Rope Length | 1 in |
| MFR # | 54505 |
| Zoro # | G3108253 |
| UPC # | - |
| Country of Origin | Mexico |
| Type | Splice |
| Color | Blue |
| Insulation Material | None |
| Maximum Voltage | 35 kV |
| Maximum Operating Temperature | 194 Degrees F |
| RoHS Compliant | Yes |
| Material | Copper |
| Standards | CSA Certified, UL Listed |
| Die Code | 24 |
| Maximum Conductors | 1 |
| Special Features | Easy To Insulate and Provide a Low-Resistance Connection of High Quality and Low Installed Cost, Two-Way Connectors Provide High Pullout Values |
| Compatible with Product Type | Copper Conductor |
| Number of Crimps | 1 |
| For Conductor Material | Copper |
| For Wire Type | Class G, H, I, K, M |
| Seam Style | Seamless |
| Features | Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost. |
| Finish | Tin Plated |
| Application | Applications certified to 600 V and recommended up to 35 kV¥ |
| Contact Finish | Tin |
| Termination Style | Crimp |
| Contact Material | Copper |
| Barrel Finish | Tin Plated |
| Color Code | Blue |
| Country of Origin | Mexico (subject to change) |
