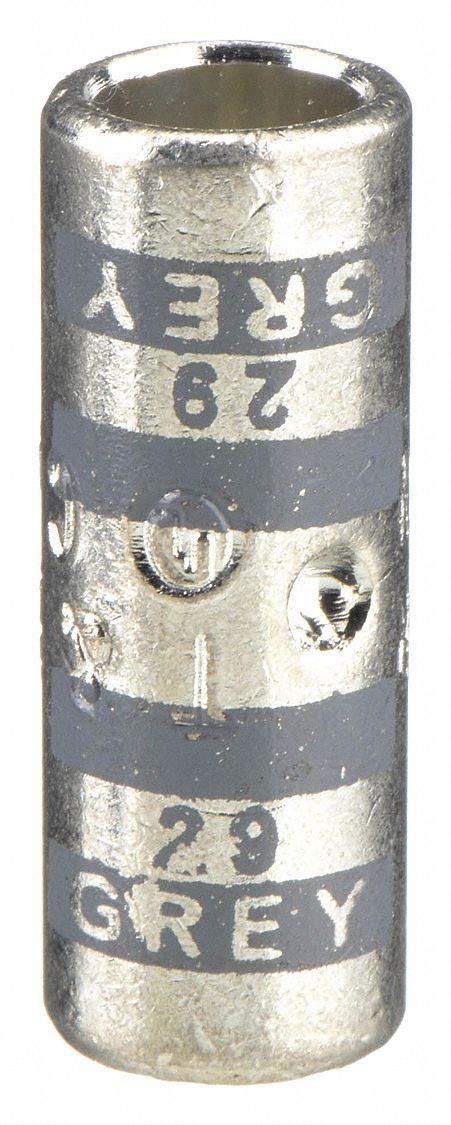

Thomas & Betts 54506 Open Barrel Splice, 4 AWG Wire Size, Gray Code, 1 in, Copper Barrel, 29 Die
UPC: | Harmonization / Schedule B : 8536.90.4000
Country of Origin: Mexico | Shipping Weight: 0.1 lbs
Original price
$14.03
-
Original price
$14.03
Original price
$14.03
$14.03
-
$14.03
Current price
$14.03
Open Barrel Splice, Barrel Finish Tin Plated, Barrel Size Standard, Color Code Gray, Die Code 29, For Conductor Material Copper, For Wire Type Class G, H, I, K, M, Material Copper, Maximum Voltage 35 kV, Maximum Wire Size 4 AWG, Number of Crimps 1, Overall Length 1 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.37 in
| Maximum Wire Size | 4 AWG |
|---|---|
| Minimum Wire Size | 4 AWG |
| Length | 1 in |
| Outside Dia. | 0.37 in |
| Overall Length | 1 in |
| Maximum Wire Insulation Diameter | 0.37 in |
| Barrel Outside Diameter | 0.37 in |
| Barrel Size | Standard |
| For Minimum Wire Size - Solid | 4 AWG |
| For Maximum Wire Size - Solid | 4 AWG |
| Wire Rope Length | 1 in |
| Type | Splice |
| Color | Gray |
| Insulation Material | None |
| Maximum Voltage | 35 kV |
| Maximum Operating Temperature | 194 Degrees F |
| RoHS Compliant | Yes |
| Material | Copper |
| Die Code | 29 |
| Standards | CSA Certified, UL Listed |
| Maximum Conductors | 1 |
| Special Features | Easy To Insulate and Provide a Low-Resistance Connection of High Quality and Low Installed Cost, Two-Way Connectors Provide High Pullout Values |
| For Conductor Material | Copper |
| Compatible with Product Type | Copper Conductor |
| Number of Crimps | 1 |
| Seam Style | Seamless |
| For Wire Type | Class G, H, I, K, M |
| Features | Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost. |
| Finish | Tin Plated |
| Application | Applications certified to 600 V and recommended up to 35 kV¥ |
| Contact Finish | Tin |
| Color Code | Gray |
| Barrel Finish | Tin Plated |
| Termination Style | Crimp |
| Contact Material | Copper |
| Country of Origin | Mexico |
