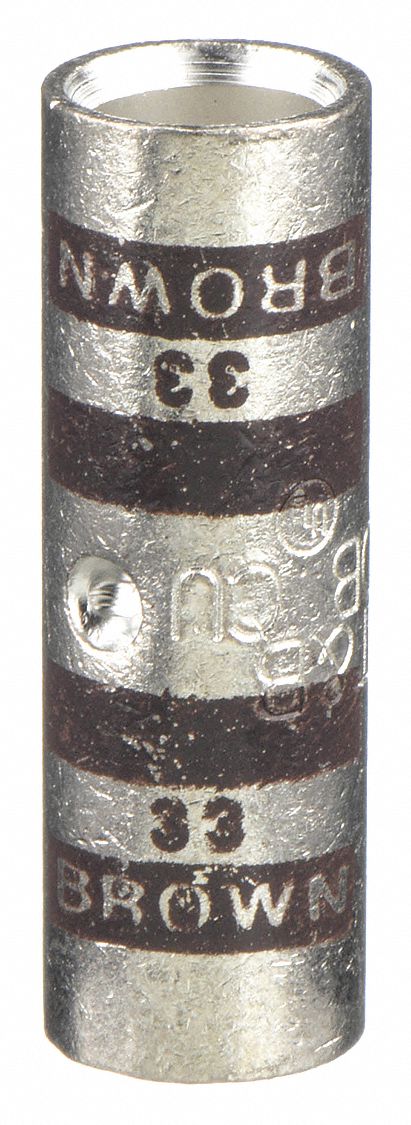

Thomas & Betts 54507 Open Barrel Splice, 2 AWG Wire Size, Brown Code, 1.25 in, Copper Barrel, 33 Die
UPC: | Harmonization / Schedule B : 8536.90.4000
Country of Origin: Mexico | Shipping Weight: 0.1 lbs
Original price
$19.02
-
Original price
$19.02
Original price
$19.02
$19.02
-
$19.02
Current price
$19.02
Open Barrel Splice, Barrel Finish Tin Plated, Barrel Size Standard, Color Code Brown, Die Code 33, For Conductor Material Copper, For Wire Type Class G, H, I, K, M, Material Copper, Maximum Voltage 35 kV, Maximum Wire Size 2 AWG, Number of Crimps 1, Overall Length 1.25 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.41 in
| Maximum Wire Size | 2 AWG |
|---|---|
| Minimum Wire Size | 2 AWG |
| Length | 1.25 in |
| Outside Dia. | 0.41 in |
| Overall Length | 1.25 in |
| Barrel Outside Diameter | 0.41 in |
| Barrel Size | Standard |
| Maximum Wire Insulation Diameter | 0.41 in |
| For Maximum Wire Size - Solid | 2 AWG |
| For Minimum Wire Size - Solid | 2 AWG |
| Wire Rope Length | 1.25 in |
| MFR # | 54507 |
| Zoro # | G1689441 |
| UPC # | - |
| Country of Origin | Mexico |
| Type | Splice |
| Color | Brown |
| Insulation Material | None |
| Maximum Voltage | 35 kV |
| Maximum Operating Temperature | 194 Degrees F |
| RoHS Compliant | Yes |
| Material | Copper |
| Standards | CSA Certified, UL Listed |
| Die Code | 33 |
| For Wire Type | Class G, H, I, K, M |
| Seam Style | Seamless |
| Compatible with Product Type | Copper Conductor |
| Maximum Conductors | 1 |
| For Conductor Material | Copper |
| Number of Crimps | 1 |
| Special Features | Easy To Insulate and Provide a Low-Resistance Connection of High Quality and Low Installed Cost, Two-Way Connectors Provide High Pullout Values |
| Features | Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost. |
| Application | Applications certified to 600 V and recommended up to 35 kV¥ |
| Finish | Tin Plated |
| Contact Material | Copper |
| Contact Finish | Tin |
| Termination Style | Crimp |
| Color Code | Brown |
| Barrel Finish | Tin Plated |
| Country of Origin | Mexico (subject to change) |
