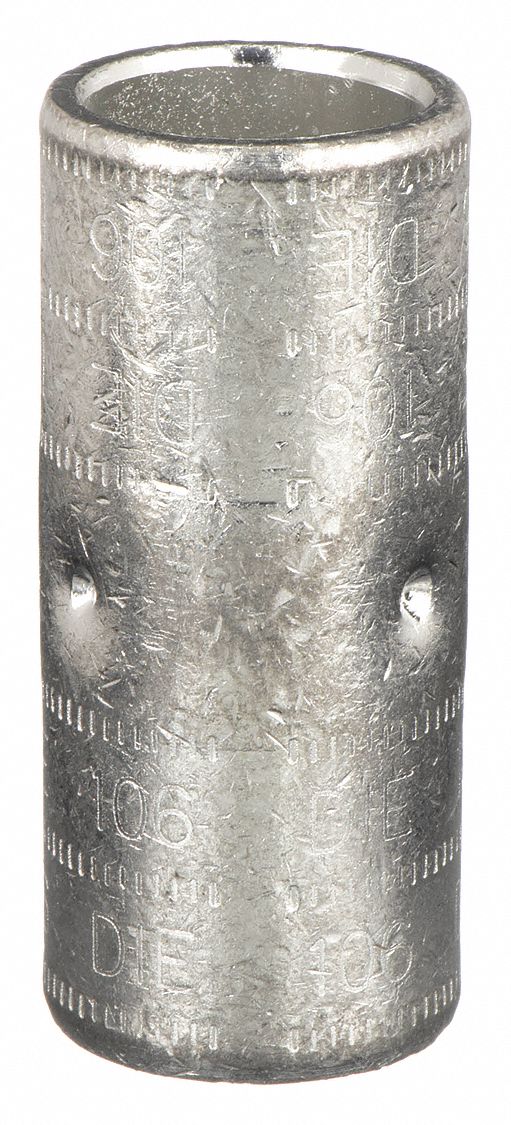

Thomas & Betts 54523-TB Open Barrel Splice, 750 kcmil Wire Size, Black Code, 3 in, Copper Barrel, 106 Die
UPC: | Harmonization / Schedule B : 8536.90.4000
Country of Origin: Mexico | Shipping Weight: 0.48 lbs
Original price
$76.09
-
Original price
$76.09
Original price
$76.09
$76.09
-
$76.09
Current price
$76.09
Open Barrel Splice, Barrel Finish Tin Plated, Barrel Size Standard, Color Code Black, Die Code 106, For Conductor Material Copper, For Wire Type Class G, H, I, K, M, Material Copper, Maximum Voltage 35 kV, Maximum Wire Size 750 kcmil, Number of Crimps 2, Overall Length 3 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 1.3 in
| Maximum Wire Size | 750 kcmil |
|---|---|
| Minimum Wire Size | 750 kcmil |
| Length | 3 in |
| Outside Dia. | 1.3 in |
| Overall Length | 3 in |
| Maximum Wire Insulation Diameter | 1.3 in |
| Barrel Outside Diameter | 1.3 in |
| Barrel Size | Standard |
| For Minimum Wire Size - Solid | 750 kcmil |
| For Maximum Wire Size - Solid | 750 kcmil |
| For Minimum Wire Size - Stranded | 750 kcmil |
| For Maximum Wire Size - Stranded | 750 kcmil |
| Wire Rope Length | 3 in |
| Type | Splice |
| Color | Black |
| Insulation Material | None |
| Maximum Voltage | 35 kV |
| Current | 750 A |
| Maximum Operating Temperature | 194 Degrees F |
| RoHS Compliant | Yes |
| Standards | CSA Certified, UL Listed |
| Die Code | 106 |
| Material | Copper |
| Seam Style | Seamless |
| For Wire Type | Class G, H, I, K, M |
| For Conductor Material | Copper |
| Number of Crimps | 2 |
| Special Features | Easy To Insulate and Provide a Low-Resistance Connection of High Quality and Low Installed Cost, Two-Way Connectors Provide High Pullout Values |
| Maximum Conductors | 1 |
| Compatible with Product Type | Copper Conductor |
| Features | Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost. |
| Finish | Tin Plated |
| Sleeve form | Short |
| Application | Applications certified to 600 V and recommended up to 35 kV¥ |
| Maximum Tap Conductors | 1 |
| Maximum Run Conductors | 1 |
| Contact Finish | Tin |
| Color Code | Black |
| Contact Material | Copper |
| Termination Style | Crimp |
| Barrel Finish | Tin Plated |
| Country of Origin | Mexico |
