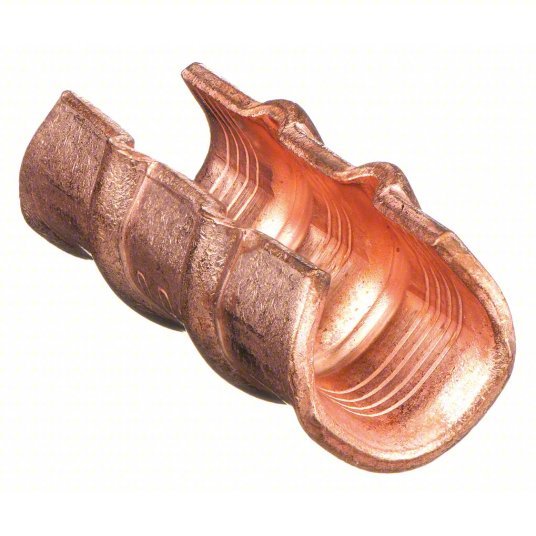

Thomas & Betts 54735 C Tap 1 AWG For Max Run Wire Size, 45 Die

Thomas & Betts 54735 C Tap 1 AWG For Max Run Wire Size, 45 Die

$15.27 - $15.27
$15.27
$15.27 - $15.27
$15.27
C Tap, Color Code Black, Die Code 45, For Conductor Material Copper, For Maximum Equal Wire Size 1 AWG (Main), 3 AWG (Branch), For Minimum Equal Wire Size 12 AWG (Branch), 3 AWG (Main), For Maximum Tap Wire Size 3 AWG, For Minimum Tap Wire Size 12 AWG, For Maximum Run Wire Size 1 AWG, For Minimum Run Wire Size 3 AWG, Material Copper, Maximum Voltage 600 V, Finish Plain, Standards UL E9809, Termination Style Crimp
Material Copper
Color Code Black
Description/Special Features Ideal for Pigtailing, 2-way Splicing or Tapping to an Unbroken Continuous Main, 600V Applications
Standards UL E9809
Die Code 45
Material of Construction Wrought Copper
Wire Range Branch 3 to 12 AWG, Main 3 to 1 AWG
Item C Tap
Maximum Voltage 600 V
Compatible Installation Tool Model Number 13455, 13462, 13474, 13477, 6TON45, TBM6245
Compatible with Product Type Crimping Die
Special Features Positive, All-Around Compression With Low Resistance and High Pull-Out Values
Termination Style Crimp
For Conductor Material Copper
Finish Plain
Surface Finishing Plain
Product Type C-Tap
Voltage Rating 600 V
Special Functions Positive, all-around compression with low resistance and high pull-out values.
UPC 786210547350
Features Positive, all-around compression with low resistance and high pull-out values.; Ideal for pigtailing, 2-way splicing or tapping to an unbroken continuous main.; Heavy reinforcing ribs help locate compression dies and strengthen compressed joint
