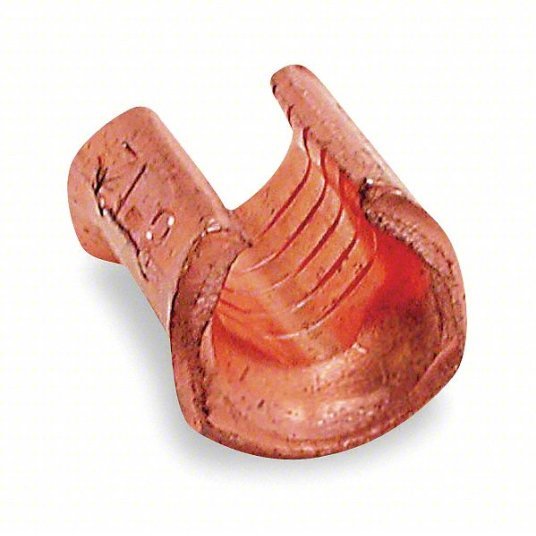

Thomas & Betts 54745 C Tap 2/0 AWG For Max Run Wire Size, 54 Die

Thomas & Betts 54745 C Tap 2/0 AWG For Max Run Wire Size, 54 Die

$17.27 - $17.27
$17.27
$17.27 - $17.27
$17.27

C Tap, Color Code Purple, Die Code 54, For Conductor Material Copper, For Maximum Equal Wire Size 1 AWG (Branch), 2/0 AWG (Main), For Minimum Equal Wire Size 1 AWG (Main), 12 AWG (Branch), For Maximum Tap Wire Size 1 AWG, For Minimum Tap Wire Size 12 AWG, For Maximum Run Wire Size 2/0 AWG, For Minimum Run Wire Size 1 AWG, Material Copper, Maximum Voltage 600 V, Finish Plain, Standards UL E9809, Termination Style Crimp

Material Copper
Color Code Purple
Wire Range Branch 1 to 12 AWG, Main 2/0 to 1 AWG
Die Code 54
Material of Construction Wrought Copper
Description/Special Features Ideal for Pigtailing, 2-way Splicing or Tapping to an Unbroken Continuous Main, 600V Applications
Item C Tap
Standards UL E9809
Special Features Positive, All-Around Compression With Low Resistance and High Pull-Out Values
Finish Plain
Maximum Voltage 600 V
For Conductor Material Copper
Compatible with Product Type Crimping Die
Termination Style Crimp
Compatible Installation Tool Model Number 13456, 13463, 13475, 13477, 6TON54, TBM6254
Product Type C-Tap
Surface Finishing Plain
Special Functions Positive, all-around compression with low resistance and high pull-out values.
