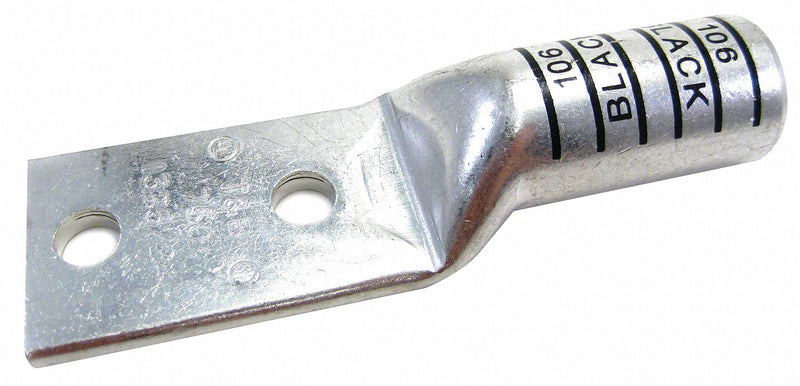

Thomas & Betts 54880BE Compression Lug, For 750 kcmil, Stranded Wire, 1/2 in Stud Size, Long, Copper Barrel
UPC: 786210898117 | Harmonization / Schedule B : 8536.90.4000
Country of Origin: Mexico | Shipping Weight: 1.0 lbs
Original price
$143.30
-
Original price
$143.30
Original price
$143.30
$143.30
-
$143.30
Current price
$143.30
Compression Lug, Barrel Size Long, Color Code Black, Die Code 106, Tongue Angle Straight, Tongue Width 0.27 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Maximum 750 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL E9809, Number of Holes 2, Barrel Outside Diameter 1.33 in, Connector Type Straight Barrel, Contact Finish Tin, For Wire Size 750 kcmil
| For Wire Size | 750 kcmil |
|---|---|
| For Stud Size | 1/2 in |
| Barrel Size | Long |
| Tongue Width | 0.27 in |
| Length | 6.2" |
| Width | 1.94" |
| Cable Size | 750 kcmil |
| Barrel Length | Long |
| Length (Straight Wireway) | 2.89 in |
| Barrel Outside Diameter | 1.33 in |
| Tongue Length | 3 in |
| For Stranded Copper Wire Size - Maximum | 750 kcmil |
| Hole Size | 0.5 in |
| Overall Length | 6.2 in |
| Overall Width | 1.94 in |
| Wire Rope Length | 6.2 in |
| For Conductor Material | Copper |
| Material | Copper |
| Tongue Angle | Straight |
| Inspection Hole | No |
| Die Code | 106 |
| Color Code | Black |
| Standards | CSA Certified, UL E9809 |
| Plate Material | Electro Tin |
| Connector Type | Long Barrel |
| Peep Hole | No |
| Construction | Wrought Copper |
| Tongue Style | Standard |
| Hole Center to End | 0.48 in |
| Hole Center to Center | 1.75 in |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| For Wire Type | Stranded |
| Contact Finish | Tin |
| Termination Style | Crimp |
| Maximum Voltage | 35 kV |
| Color | Black |
| Voltage Rating | 35 kV |
| Product Name | ELECTRICAL TERMINAL |
| Product Type | Long Barrel |
| Surface protection | Tinned |
| Insulation | None |
| Number of mounting holes | 2 |
| Insulated | No |
| Connecting angle | 180° (horizontal) |
| Number of Holes | 2 |
| Country of Origin | Multiple |
