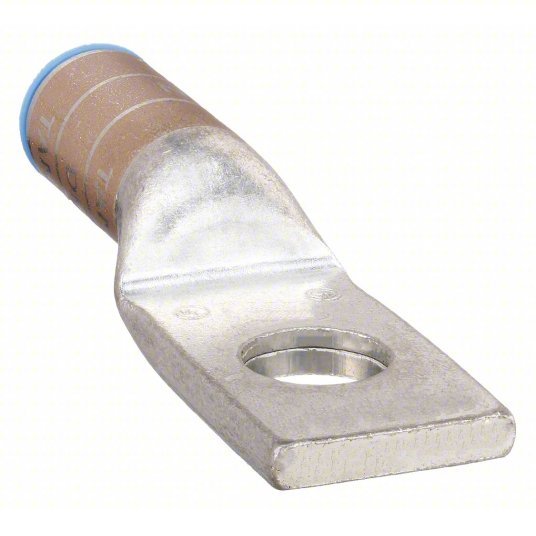

Thomas & Betts 60129 One Hole Lug Compress Connector, 1/0 AWG

Thomas & Betts 60129 One Hole Lug Compress Connector, 1/0 AWG

$31.95 - $31.95
$31.95
$31.95 - $31.95
$31.95
One-Hole Lug Compression Connector, Barrel Size Long, Color Code Tan, Die Code 50, Tongue Angle Straight, Tongue Width 0.88 in, For Conductor Material Aluminum, For Stud Size 5/16 in, Inspection Hole No, Hole Center to Center Not Applicable, Material Aluminum, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards UL Listed, Number of Holes 1, Barrel Outside Diameter 0.62 in, Connector Type Straight Barrel, Contact Finish Tin, For Stranded Aluminum Wire Size - Maximum 1/0 AWG
Connector Type Long Barrel
Material Electro-Tin Plated High-Conductivity Wrought Aluminum
Color Code Tan
Peep Hole No
Die Code 50
Hole Center to End 0.44 in
Plate Material Tin
Item One-Hole Lug Compression Connector
Tongue Style Standard
Hole Center to Center Not Applicable
Standards UL Listed
For Conductor Material Aluminum
For Wire Type Solid, Stranded
Inspection Hole No
Tongue Angle Straight
Maximum Voltage 35 kV AC
Contact Finish Tin
Termination Style Crimp
Color Tan
Product Type Long Barrel
Voltage Rating 35 kV
Product Name LUG TERMINAL
Standard UL E9809
Insulation None
Number Of Holes 1
