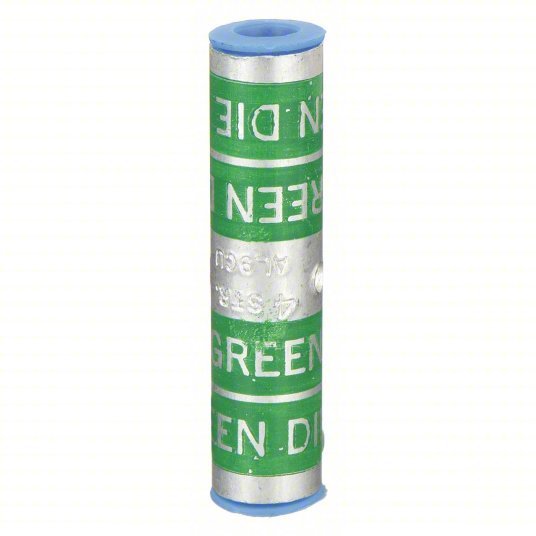

Thomas & Betts 60512 Long-Barrel Splice, Green Color, 4 AWG Max Wire Size
Original price
$14.47
-
Original price
$14.47
Original price
$14.47
$14.47
-
$14.47
Current price
$14.47
Long-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Green, Die Code 37, For Conductor Material Aluminum, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size 4 AWG, Maximum Wire Size 4 AWG, Number of Crimps 2, Overall Length 1.81 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.46 in
| Material | Copper |
| Color Code | Green |
| Color | Green |
| Die Code | 37 |
| Standards | CSA Certified, UL Listed |
| Wire Gauge | 4 AWG |
| Voltage Rating | 35 kV |
| RoHS Compliant | Yes |
| Seam Style | Seamless |
| Maximum Operating Temperature | 194 Degrees F |
| Special Features | For Aluminum and Copper Concentric Conductors and Compact Code Aluminum Strandings |
| For Conductor Material | Aluminum |
| Contact Material | Aluminum |
| Compatible with Product Type | Copper Conductor |
| For Wire Type | Stranded |
| Termination Style | Crimp |
| Contact Finish | Tin |
| Barrel Finish | Tin Plated |
| Number of Crimps | 2 |
| Maximum Voltage | 35 kV |
| Maximum Conductors | 1 |
| Features | For aluminum and copper concentric conductors and compact code aluminum strandings.; Connectors supplied with T&B Oxide inhibitor compound in wire bore.; Permits aluminum conductors to be spliced to copper or aluminum conductors.; Application Tools: TBM5, TBM5S, TBM6, TBM6S, TBM8, TBM8S |
| Surface Finishing | Tin-Plated |
| Temperature Range | 90°C |
| Product Name | ELECTRICAL TERMINAL |
| Number of Batteries | 0 |
| Special Functions | For aluminum and copper concentric conductors and compact code aluminum strandings. |
| Product Type | Aluminum Splice |
| Useful for stranded conductors | Yes |
| Insulation | None |
| Temperature Rating | 90 C |
| Standard | UL E9809 |
