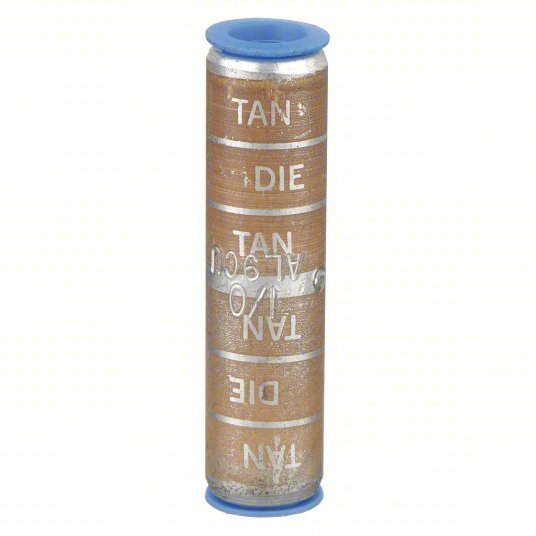

Thomas & Betts 60530 Long-Barrel Splice, Tan Color, 1/0 AWG Max Wire Size
Original price
$26.30
-
Original price
$26.30
Original price
$26.30
$26.30
-
$26.30
Current price
$26.30
Long-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Tan, Die Code 50, For Conductor Material Aluminum, Copper, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size 1/0 AWG, Maximum Wire Size 1/0 AWG, Number of Crimps 2, Overall Length 2.38 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.62 in
| Material | Copper |
| Color Code | Tan |
| Standards | CSA Certified, UL Listed |
| Die Code | 50 |
| Wire Gauge | 1/0 AWG |
| Contact Finish | Tin |
| Barrel Finish | Tin Plated |
| Termination Style | Crimp |
| For Wire Type | Stranded |
| Maximum Voltage | 35 kV |
| Seam Style | Seamless |
| Compatible with Product Type | Copper Conductor |
| Number of Crimps | 2 |
| Special Features | For Aluminum and Copper Concentric Conductors and Compact Code Aluminum Strandings |
| Maximum Conductors | 1 |
| For Conductor Material | Aluminum, Copper |
| Maximum Operating Temperature | 194 Degrees F |
| RoHS Compliant | Yes |
| Contact Material | Aluminum |
