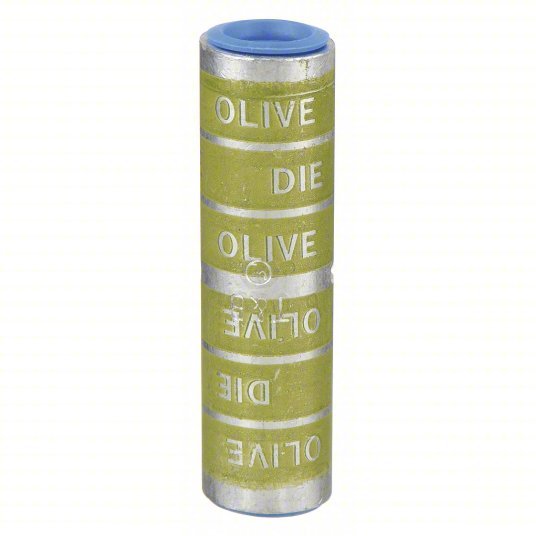

Thomas & Betts 60536 Long-Barrel Splice, Olive Color, 2/0 AWG Max Wire Size
Original price
$32.79
-
Original price
$32.79
Original price
$32.79
$32.79
-
$32.79
Current price
$32.79
Long-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Olive, Die Code 54, For Conductor Material Aluminum, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size 2/0 AWG, Maximum Wire Size 2/0 AWG, Number of Crimps 2, Overall Length 2.5 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.7 in
| Material | Copper |
| Color Code | Olive |
| Color | Olive |
| Standards | CSA Certified, UL Listed |
| Die Code | 54 |
| Wire Gauge | 2/0 AWG |
| Voltage Rating | 35 kV |
| Maximum Conductors | 1 |
| For Conductor Material | Aluminum |
| Maximum Voltage | 35 kV |
| Barrel Finish | Tin Plated |
| Special Features | For Aluminum and Copper Concentric Conductors and Compact Code Aluminum Strandings |
| Contact Finish | Tin |
| Number of Crimps | 2 |
| Maximum Operating Temperature | 194 Degrees F |
| Contact Material | Aluminum |
| RoHS Compliant | Yes |
| Compatible with Product Type | Copper Conductor |
| Termination Style | Crimp |
| For Wire Type | Stranded |
| Seam Style | Seamless |
| Features | For aluminum and copper concentric conductors and compact code aluminum strandings.; Connectors supplied with T&B Oxide inhibitor compound in wire bore.; Permits aluminum conductors to be spliced to copper or aluminum conductors.; Application Tools: TBM5, TBM5S, TBM6, TBM6S, TBM8, TBM8S |
| Temperature Range | 90°C |
| Product Name | ELECTRICAL SPLICE |
| Surface Finishing | Tin-Plated |
| Number of Batteries | 0 |
| Special Functions | For aluminum and copper concentric conductors and compact code aluminum strandings. |
| Product Type | Aluminum Splice |
| Standard | UL E9809 |
| Temperature Rating | 90 C |
