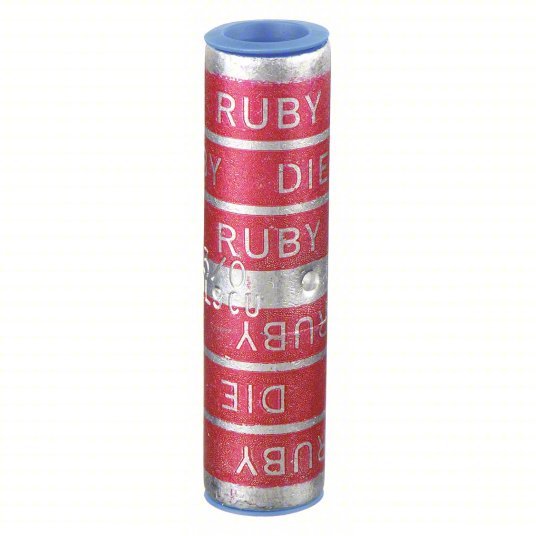

Thomas & Betts 60542 Long-Barrel Splice, Ruby Color, 3/0 AWG Max Wire Size

Thomas & Betts 60542 Long-Barrel Splice, Ruby Color, 3/0 AWG Max Wire Size

$36.99 - $36.99
$36.99
$36.99 - $36.99
$36.99
Long-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Ruby, Die Code 60, For Conductor Material Aluminum, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size 3/0 AWG, Maximum Wire Size 3/0 AWG, Number of Crimps 2, Overall Length 2.81 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.77 in
Material Copper
Color Code Ruby
Color Ruby
Wire Gauge 3/0 AWG
Die Code 60
Standards CSA Certified, UL Listed
Voltage Rating 35 kV
Compatible with Product Type Copper Conductor
Maximum Conductors 1
Contact Material Aluminum
Special Features For Aluminum and Copper Concentric Conductors and Compact Code Aluminum Strandings
For Conductor Material Aluminum
Maximum Operating Temperature 194 Degrees F
RoHS Compliant Yes
Contact Finish Tin
Termination Style Crimp
Barrel Finish Tin Plated
Seam Style Seamless
For Wire Type Stranded
Number of Crimps 2
Maximum Voltage 35 kV
Features For aluminum and copper concentric conductors and compact code aluminum strandings.; Connectors supplied with T&B Oxide inhibitor compound in wire bore.; Permits aluminum conductors to be spliced to copper or aluminum conductors.; Application Tools: TBM5, TBM5S, TBM6, TBM6S, TBM8, TBM8S
Special Functions For aluminum and copper concentric conductors and compact code aluminum strandings.
Product Type Aluminum Splice
Insulation Material None
Number of Batteries 0
Surface Finishing Tin Plated
Temperature Range 90°C
Product Name ELECTRICAL SPLICE
Type of connection End connector
Voltage level Up to 35 kV
Standard UL E9809
AWG-range 3/0-3/0
Temperature Rating 90 C
