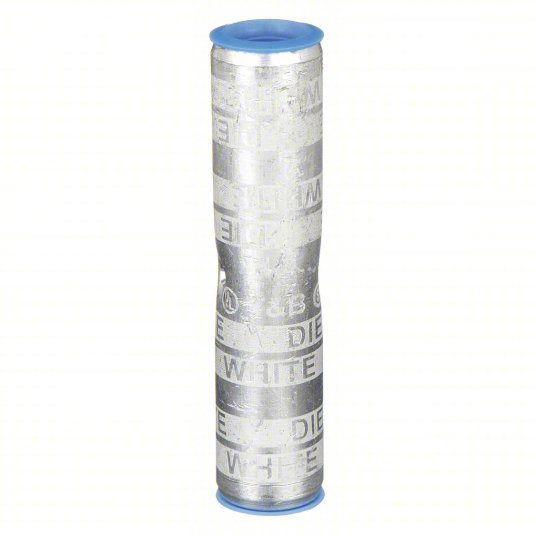

Thomas & Betts 60548 Long-Barrel Splice White Color, 4/0 AWG Max Wire Size
Original price
$40.60
-
Original price
$40.60
Original price
$40.60
$40.60
-
$40.60
Current price
$40.60
Long-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code White, Die Code 66, For Conductor Material Aluminum, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size 4/0 AWG, Maximum Wire Size 4/0 AWG, Number of Crimps 2, Overall Length 3.66 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.86 in
| Material | Copper |
| Color Code | White |
| Color | White |
| Standards | CSA Certified, UL Listed |
| Wire Gauge | 4/0 AWG |
| Die Code | 66 |
| Voltage Rating | 35 kV |
| Contact Finish | Tin |
| RoHS Compliant | Yes |
| Maximum Conductors | 1 |
| For Wire Type | Stranded |
| Barrel Finish | Tin Plated |
| Contact Material | Aluminum |
| Special Features | For Aluminum and Copper Concentric Conductors and Compact Code Aluminum Strandings |
| Number of Crimps | 2 |
| Maximum Voltage | 35 kV |
| Maximum Operating Temperature | 194 Degrees F |
| For Conductor Material | Aluminum |
| Termination Style | Crimp |
| Seam Style | Seamless |
| Compatible with Product Type | Copper Conductor |
| Features | For aluminum and copper concentric conductors and compact code aluminum strandings.; Connectors supplied with T&B Oxide inhibitor compound in wire bore.; Permits aluminum conductors to be spliced to copper or aluminum conductors.; Application Tools: TBM5, TBM5S, TBM6, TBM6S, TBM8, TBM8S |
| Number of Batteries | 0 |
| Temperature Range | 90°C |
| Surface Finishing | Tin-Plated |
| Product Name | ELECTRICAL SPLICE |
| Special Functions | For aluminum and copper concentric conductors and compact code aluminum strandings. |
| Product Type | Aluminum Splice |
| Standard | UL E9809 |
| Temperature Rating | 90 C |
| Insulation | None |
