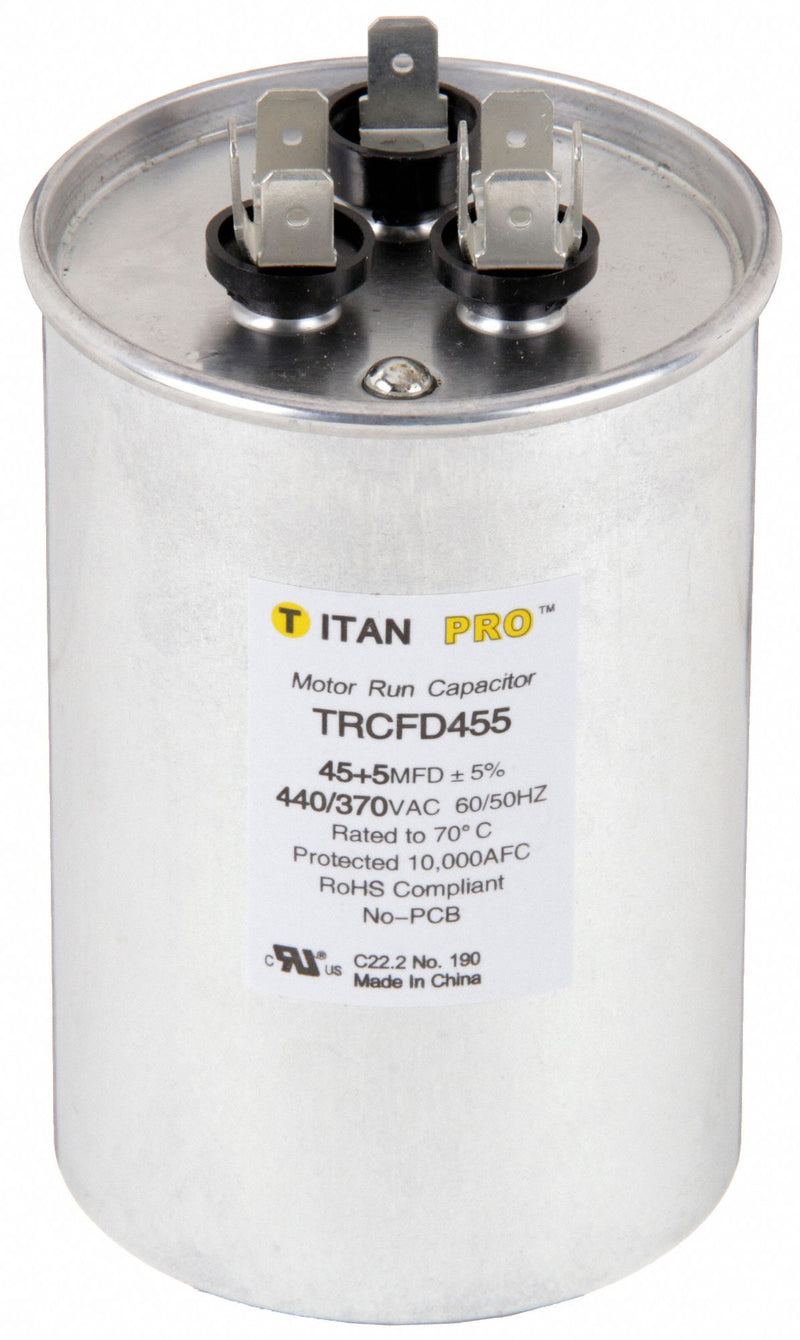

Titan Pro TRCFD455 Motor Dual Run Capacitor, Round, 440/370V AC, 45/5 MFD, 2 1/2 in Overall Dia, Aluminum
UPC: | Harmonization / Schedule B : 8532.10.0000
Country of Origin: China | Shipping Weight: 0.7 lbs
Original price
$22.44
-
Original price
$22.44
Original price
$22.44
$22.44
-
$22.44
Current price
$22.44
Motor Dual Run Capacitor, Dual Run Capacitor, Round, 440/370V AC, Microfarad Rating 45/5 MFD, Overall Height 4 1/4 in, Case Material Aluminum
| Overall Height | 4 1/4 in |
|---|---|
| Overall Width | 2 1/2 in |
| Case Height | 3 3/4 in |
| Diameter | 2 1/2 in |
| Overall Depth | 2 1/2 in |
| Terminal Tab Width | 1/4 in |
| Motor Capacitor Type | Motor Dual Run Capacitor |
| Microfarad Rating | 45/5 MFD |
| Capacitor Voltage | 440/370V AC |
| Capacitor Shape | Round |
| Case Material | Aluminum |
| Temp. Range | -40 Degrees to 70 Degrees C |
| Terminal Type | 1/4 in Male Quick-Connect |
| Hz | 60/50 |
| EIA UL Base | A |
| Cover Material | Steel |
| Standards | IEC 60252-1:2001 |
| For Use With | Electric Motors |
| Voltage | 440/370V AC |
| Number of Pieces | 1 |
| Number of Terminals | 3 |
| EIA Tolerance Code | A |
| Terminal Designations | Standard |
| Connection Type | Quick Connect |
| Min. Temperature | -40 Degrees C |
| Terminal Gender | Male |
| Frequency | 60/50 Hz |
| Max. Temperature | 70 Degrees C |
| Capacitor Voltage (Merch) | 440V AC |
| Country of Origin | China |
