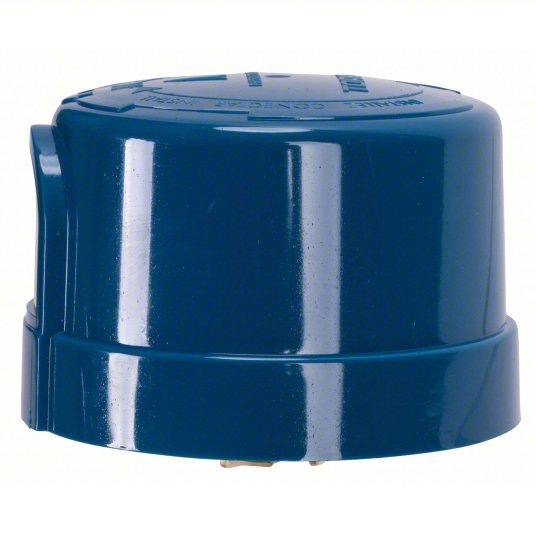

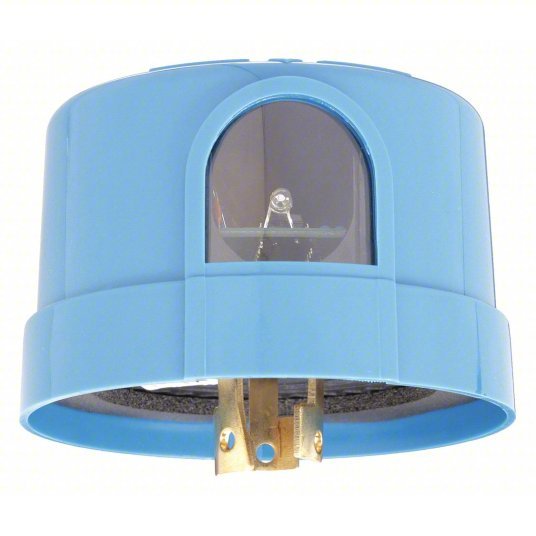

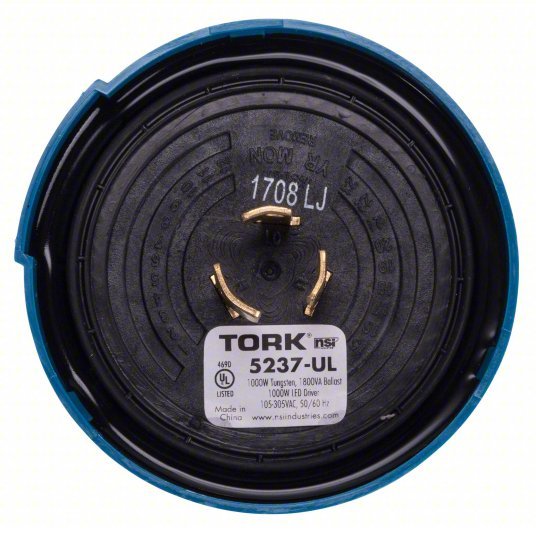

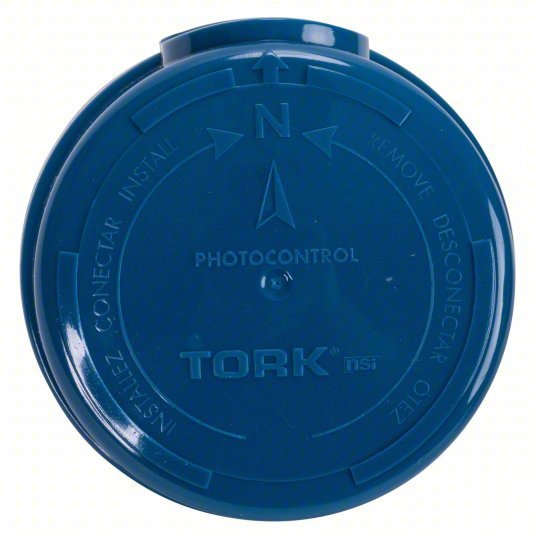

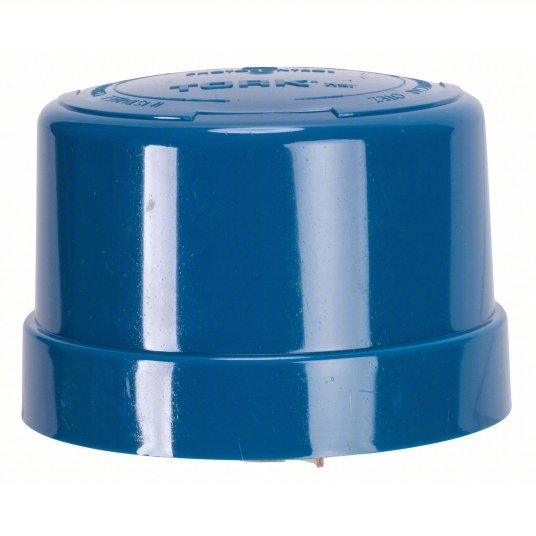

Tork 5237-UL Photocontrol 120 to 277V AC, 1,000 W Max. Watt, 8.3 A Max. Incandescent Amps, 1.5, 1.5, Turn-Lock
Original price
$35.08
-
Original price
$35.08
Original price
$35.08
$35.08
-
$35.08
Current price
$35.08
Photocontrol, Mounting Turn-Lock, Voltage 120 to 277V AC, Max. Wattage 1,000, Max. Incandescent Amps 8.3 A, Max. Ballast Amps 15 A, 1.5 Foot Candles On, 1.5 Foot Candles Off, Color Blue, Temp. Range -40 Degrees to 158 Degrees F, Length 3 3/16 in, Width 3 3/16 in, Depth 2 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards California Title 24 Compliant, cUL, UL
| Mounting | Turn-Lock |
| For Use With | LED Lamp Drivers for Street, Highway and other pole mounted lighting |
| Voltage | 120 to 277V AC |
| Max. Wattage | 1,000 |
| Max. Incandescent Amps | 8.3 A |
| Max. Ballast Amps | 15 A |
| Foot Candles On | 1.5 |
| Foot Candles Off | 1.5 |
| Color | Blue |
| Temp. Range | -40 Degrees to 158 Degrees F |
| Setting | Dusk to Dawn |
| Housing Material | Polycarbonate |
| Standards | California Title 24 Compliant, cUL, UL |
| Contact Form | SPST |
| Enclosure Type | Raintight |
| Description/Special Features | LED Rated, Third Party Listed for LED Lighting |
| Accessory Type | Photocontrol |
| Standard | cULus |
| Power Consumption | 1 Watt Average At 120 V |
| Application | Local Utility-Street-Highway Lighting Control |
| Type | Utility Grade Electronic With Fail On Mode |
| Supply Voltage | 105-305 VAC |
| Operating Temperature | -40 to + 158 F |
| Enclosure | Polypropylene |
| Timing Range | 3-5 Second Delay |
| Sensor Type | Molded Sealed IR |
| Sensitivity | Turn On Is 1.5fc - Off-On Ratio Is 1.5:1 Average |
| Frequency Rating | 50-60 Hz |
