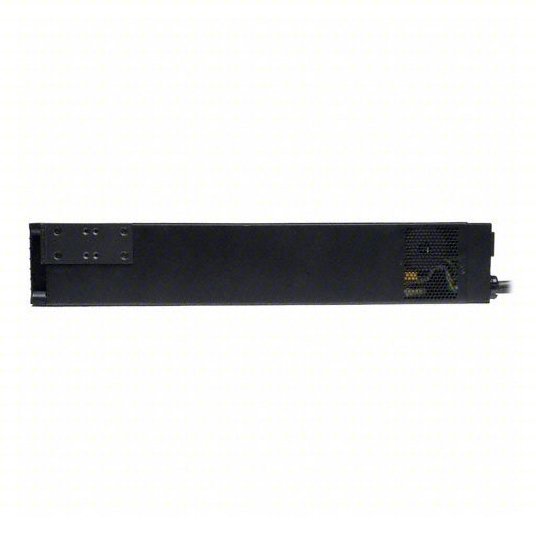

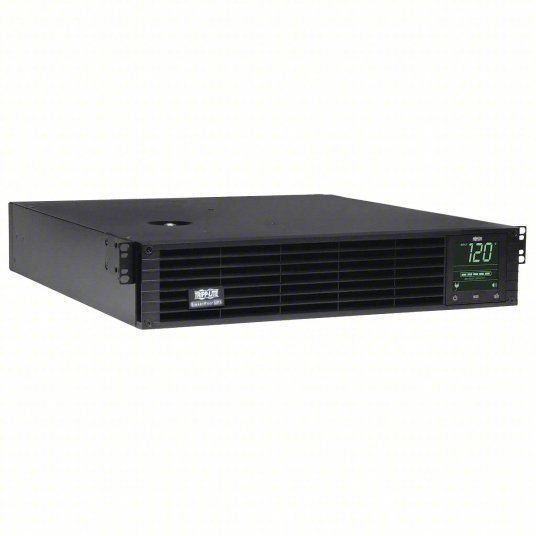

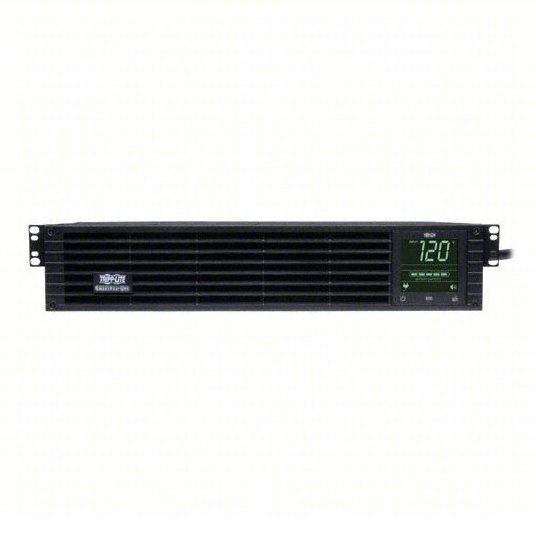

Tripp Lite SM3000RMXL2UTAA Smart UPS, Line Interactve, Rack/Towr, 3kVA
Original price
$2,552.92
-
Original price
$2,552.92
Original price
$2,552.92
$2,552.92
-
$2,552.92
Current price
$2,552.92
Smart UPS, Line Interactive, Power Rating 3 kVA, Wattage 2.88 kW, Input Voltage 120V AC, Output Voltage 120V AC, Backup Time (Half/Full Load) 10 min/3 min, Mounting Rack/Tower, Outlet Type UPS/Surge, Number of Outlets 9, Medical Grade No, NEMA Receptacle Configuration 5-20R, L5-30R, NEMA Plug Configuration L5-30P, Automatic Volts Regulation Yes, Fax/Modem Line Protection No, Transfer Time 2 msec from Battery to Line, 5 msec from Line to Battery, Width 18 in, Depth 19 in, Height 4 in
| UPS Type | Line Interactive |
| VA Rating - UPS Systems | 3.0 kVA |
| Watts - UPS Systems | 2.88 kW |
| Input Voltage - UPS Systems | 120V AC |
| Output Voltage - UPS Systems | 120V AC |
| Backup Time (Half/Full Load) | 10 min/3 min |
| Outlet Type - UPS Systems | UPS/Surge |
| Number of Outlets | 9 |
| Medical Grade | No |
| Includes | 4-Post Installation Kit, PowerAlert Software with USB, Serial and EPO Cables |
| Fax/Modem Line Protection | No |
| Power Rating | 3kVA |
| Outlet Type | UPS/Surge |
| Ports | DB9 Serial, EPO, SNMP/Web Slot, USB (HID Enabled) |
| Mounting - UPS Systems | Rack/Tower |
| Mounting | Rack/Tower |
| Hz | 60 Hz |
| Special Features | Advanced AVR Corrects Brownouts and Overvoltages, Pure Sine Wave Output, Extended Runtime w/BP48V242Utaa, BP48V60Rt3Utaa |
| Transfer Time | 2 msec from Battery to Line, 5 msec from Line to Battery |
| Standards | CSA, ENERGY STAR Qualified, FCC Part 15 Category A (EMI), NOM, ROHS (Restriction of Hazardous Substances), TAA Compliant, UL 1778 |
| NEMA Plug Configuration | L5-30P |
| Input Current | 24 A |
| Item | Smart UPS |
| Output Voltage | 120VAC |
| NEMA Receptacle Configuration | 5-20R, L5-30R |
| Automatic Volts Regulation | Yes |
| Phase | 1 |
| Footnotes | 3,4,7,8,9 |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Display Type | LCD |
| Input Voltage | 120VAC |
| Watts | 2.88kW |
| Green Certification or Other Recognition | UL1778 (USA)CSA (Canada)NOM (Mexico)FCC Part 15 Category A (EMI)TAA Compliant, RoHS |
| Wattage | 2.88 kW |
| Voltage | 120 |
| Capacity - Batteries | 3000 VA/2880 W |
| Backup/Run Time (Full Load) | 3 Minute/10 Minute |

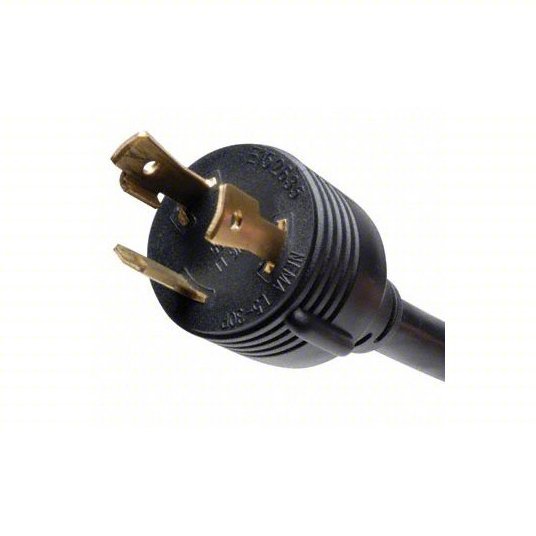

| Input Connection | 10 ft Cord with NEMA L5-30P Plug |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Output Receptacles | (8) 5-15/20R; (1) L5-30R |
| High Availability UPS Features | Hot swappable batteries |
| Frequency Compatibility | 60 Hz |
| Audible Alarm | Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions |
| Nominal Input Voltage(s) Supported | 120V AC |
| High Voltage Transfer to Battery Power (Setpoint) | 145 |
| Internal UPS Replacement Battery Cartridge | RBC58-2U |
| Half Load Runtime (min.) | 10 min. (1440w) |
| Low Voltage Transfer to Battery Power (Setpoint) | 83 |
| Full Load Runtime (min.) | 3 min. (2880w) |
| Network Management Cards | SNMPWEBCARD ; TLNETCARD ; WEBCARDLX |
| PowerAlert Software | For local monitoring via the UPS™s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| AC Mode BTU / Hr. (Full Load) | 409 |
| Output AC Waveform (AC Mode) | Pure Sine wave |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Output Voltage Regulation (Battery Mode) | +/-5% |
| Output kVA Capacity (kVA) | 3 |
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions |
| AC Suppression Response Time | Instantaneous |
| Alarm Cancel Operation | Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available |
| Nominal Output Voltage(s) Supported | 110V; 115V; 120V |
| Audible Noise | 45 dBA maximum, front side 1m |
| Input Phase | Single-Phase |
| Cooling Method | Fan |
| Battery Access | Front panel battery access door |
| Communications Cable | USB, DB9 and EPO cabling included |
| UPS Input Connection Type | L5-30P |
| Power Factor | 0.96 |
| Severe Undervoltage Correction | Input voltages between 83 and 95 are boosted by 24% |
| EMI / RFI AC Noise Suppression | Yes |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM ) |
| Output kW Capacity (kW) | 2.88 |
| UPS AC Suppression Joule Rating | 570 |
| Communications Interface | USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface |
| Recommended Electrical Service | 30A 120V |
| Included Mounting Accessory Description | Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm) |
| Output Watt Capacity (Watts) | 2880 |
| Overvoltage Correction | Input voltages between 127 and 145 are reduced by 12% |
| Expandable Battery Runtime | Extended runtime supported via optional external battery packs |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Individually Controllable Load Banks | Yes |
| Switches | 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions |
| Rated input current (Maximum Load) | 24A |
| Expandable Runtime | Yes |
| Battery Replacement Description | Hot-swappable, replaceable batteries |

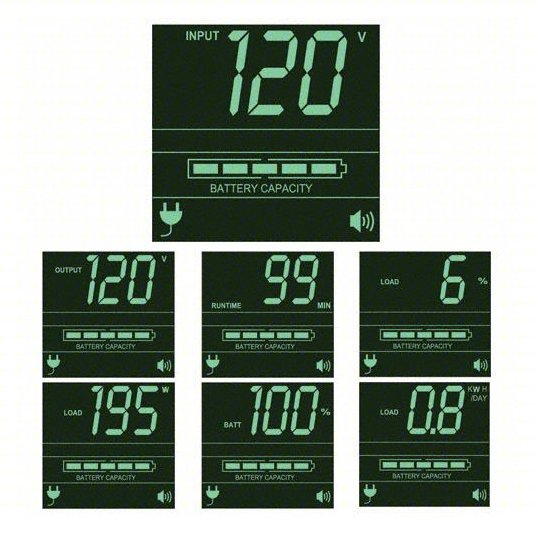

| Front Panel LCD Display | Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options) |
| UPS Certifications | Meets FCC Part 15 Category A (EMI); TAA Compliant; Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) |
| Relative Humidity | 0 to 95%, non-condensing |
| Primary Form Factor | Rackmount |
| Load Management Receptacles | Two switchable single outlet 5-15/20R load banks |
| UPS Housing Material | Steel |
| Undervoltage Correction | Input voltages between 108 and 96 are boosted by 12% |
| Output Voltage Regulation (Line Mode) | +6%, -14% |
| DC System Voltage (VDC) | 48 |
| External Battery Pack Compatibility | BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible) |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145 |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Output Circuit Breakers | Two 20A output breakers protect 4 5-15/20R outlets each |
| Nominal Voltage Details | 120v nominal output in battery mode |
| Battery Recharge Rate (Included Batteries) | Less than 5 hours from 10 to 90% |
| Output Volt Amp Capacity (VA) | 3000 |
| Battery Mode BTU / Hr. (Full Load) | 1736 |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Product Name | SM3000RMXL2UTAA 3000VA Rack-mountable Line Interactive UPS TAA Compliant |
| TAA Compliant | Yes |
| Typical Battery Recharge Time | 5 Hour |
| Product Line | SmartPro |
| Product Type | Line-interactive UPS |
| Form Factor | Rack-mountable |

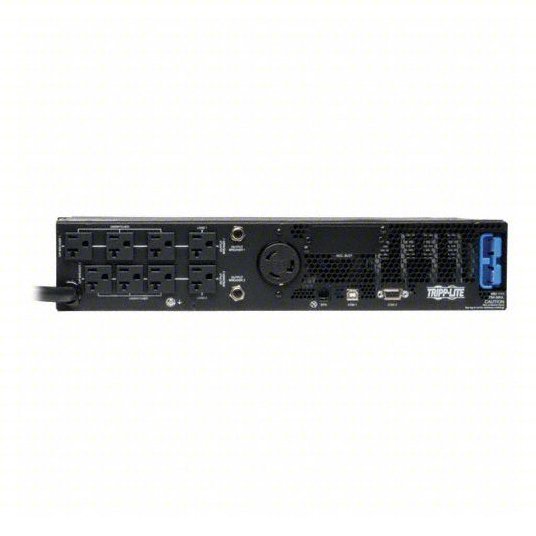

| Receptacle Detail | 1 x NEMA L5-30R, 8 x NEMA 5-15/20R |
| Backup/Run Time (Half Load) | 10 Minute |
| Hot Swappable | Yes |
| Certifications & Standards | UL1778 (USA), CSA (Canada), NOM (Mexico), FCC Part 15 Category A (EMI), TAA Compliant |
| Serial Port | Yes |
| Software Included | PowerAlert auto-shutdown Software |
| Network Management | SNMP Manageable |
| Emergency Power OFF | Yes |
| Plug/Connector Type | NEMA L5-30P |

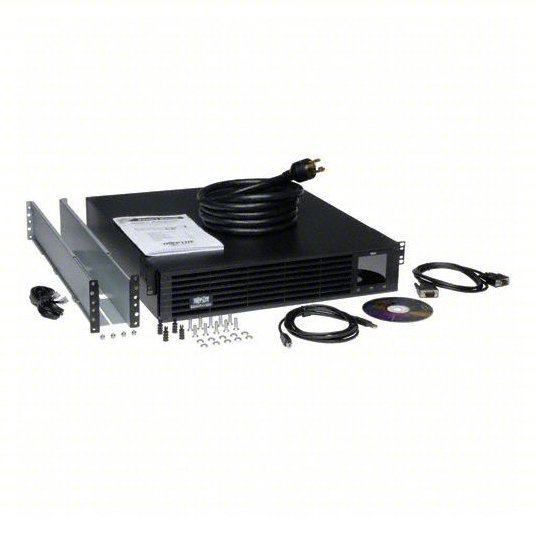

| Package Contents | SmartPro SM3000RMXL2UTAA 3000VA Rack-mountable UPS, PowerAlert Software with USB, DB9 and EPO cabling, 4 x post rackmount installation accessories, Owner's manual with warranty information |
| USB | Yes |
| Load Capacity | 3000 VA/2880 W |
| UPS Applications | Large Network |
| Output Capacity (Watts) | 2880 |
| Battery Mode Heat Dissipation (BTU/Hr) @ Full Load | 1736 |
| Runtime Half Load (min.) | 10 min. (1440W) |
| Product Compliance | FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
| Product Certifications | CSA (Canada); NOM (Mexico); UL 1778 |
| Output Capacity (VA) | 3000 |
| Package Includes | SM3000RMXL2UTAA UPS system;PowerAlert Software with USB, Serial & EPO cabling;4 post rackmount installation kit;Instruction manual |
| Runtime Full Load (min.) | 3 min. (2880W) |
