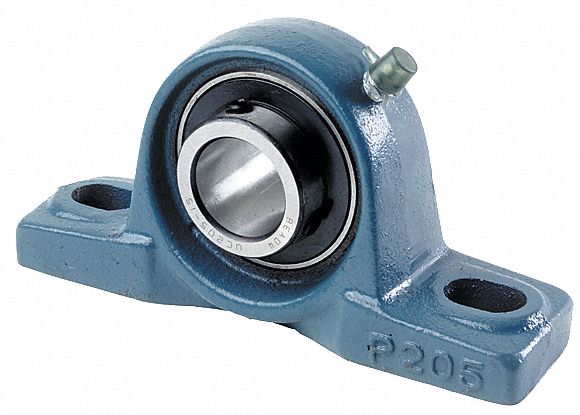

Tritan SBP205-16G Pillow Block Bearing, 1 in Bore, Cast Iron, Set Screws, 1 27/64 in Shaft Ht, 5,000 RPM Grease
UPC: 888569040862 | Harmonization / Schedule B : 8483.20.4040
Country of Origin: China | Shipping Weight: 1.75 lbs
Original price
$47.90
-
Original price
$47.90
Original price
$47.90
$47.90
-
$47.90
Current price
$47.90
Pillow Block Bearing, Base Height 0.59 in, Base Width 1.456 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 27/64 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Included Bearing SB205-16G, Lubricant Material Grease, Maximum Speed 5,000 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 4 1/8 in
| Bore Diameter | 1 in |
|---|---|
| Center Height | 1-27/64 in |
| Mount Hole Center-to-Center Length | 105.00 mm |
| Overall Length | 5.511 in |
| Overall Width | 38.00 mm |
| Overall Height | 2.736 in |
| Dimension E | 2 3/8 in |
| Base Width | 1.456 in |
| Base Height | 0.59 in |
| Mount Hole Center-to-Center Width | 4 1/8 in |
| Mounting Bolt Size | M10 |
| Bore Diameter Tolerance | +/- 0.0007 in |
| Wire Rope Length | 5.511 in |
| System of Measurement | Inch |
| Shaft Locking Type | Set Screw |
| Housing Material | Cast Iron |
| Bearing Material | 52100 Chrome Steel |
| Bearing Insert Type | Ball |
| Bearing Insert Material | Alloy Steel |
| Series | SBP |
| Closure | Double Sealed |
| Temp. Range | -4 to +248° F |
| Bearing Lubrication | Relubricateable |
| Finish | Painted |
| Standards | AFBMA, ISO |
| Resistance Properties | Corrosion-Resistant, Rust-Resistant, Wear-Resistant |
| Maximum Temperature | 250 Degrees F |
| Expansion Type | Fixed |
| Seal Material | Synthetic Rubber |
| Lubricant Material | Grease |
| Minimum Temperature | -40 Degrees F |
| Bore Type | Cylindrical |
| Mount Type | Bolt-Through |
| Lubrication Openings | Grease Fitting |
| Static Radial Load Capacity | 1,764 lbf |
| Dynamic Radial Load Capacity | 3,147 lbf |
| Features | Anti-Rotation Device, Full Cover Metal-Shroud Seals, Grease Fitting for Adding Lubricant, Light Duty Unit, Set Screw Locking, Narrow Inner Ring Bearing, One-Piece Cast Iron Housing, Solid Base, Steel Plate Slingers on Sides for Dust Exclusion |
| Seal Type | Contact |
| Number of Mount Holes | 2 |
| Bearing Material Grade | AISI 52100 |
| CAD Available | Yes |
| Split Housing | Not Split |
| Internal Clearance | C3 |
| Maximum Speed | 5,000 RPM Grease |
| Included Bearing | SB205-16G |
| Country of Origin | China |
