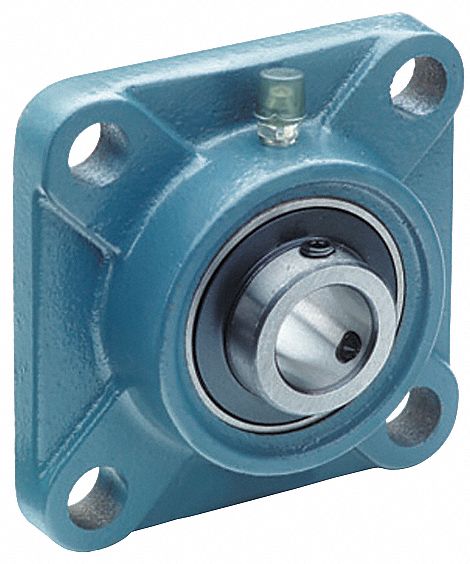

Tritan UCF207-20 4-Bolt Flange Bearing, Radial Ball, 1-1/4 in Bore, Cast Iron, Set Screw Locking
Original price
$77.11
-
Original price
$77.11
Original price
$77.11
$77.11
-
$77.11
Current price
$77.11
4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing UC207-20, Lubricant Material NLGI #2 Equivalent, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 3 5/8 in, Number of Mount Holes 4, Overall Height 4 39/64 in, Overall Length 4 39/64 in
| System of Measurement | Inch |
|---|---|
| Housing Type | Square |
| Number of Mount Holes | 4 |
| Bearing Insert Type | Radial Ball |
| Shaft Locking Type | Set Screw |
| Housing Material | Cast Iron |
| Series | UCF |
| Bearing Insert Material | Steel |
| Standards | AFBMA, ISO Certified |
| Temp. Range | -4 to +248 F |
| Static Load Capacity | 3440 lb |
| Finish | Painted |
| Dynamic Load Capacity | 5770 lb |
| Rolling Element Rows | 1 |
| Bore Type | Cylindrical |
| Features | Anti-Rotation Device, Cast-Iron Housing, Dual Heavy-Duty Slinger Type Contact Seals, Standard Duty Square Flange Unit, Set Screw Locking, Wide Inner Ring Bearing |
| Closure | Double Sealed |
| Bearing Material Grade | 52100 |
| Lubrication Openings | One Zirc Fitting |
| Lubricant Material | NLGI #2 Equivalent |
| Included Bearing | UC207-20 |
| Seal Material | Rubber |
| Expansion Type | Fixed |
| Country of Origin | China |
