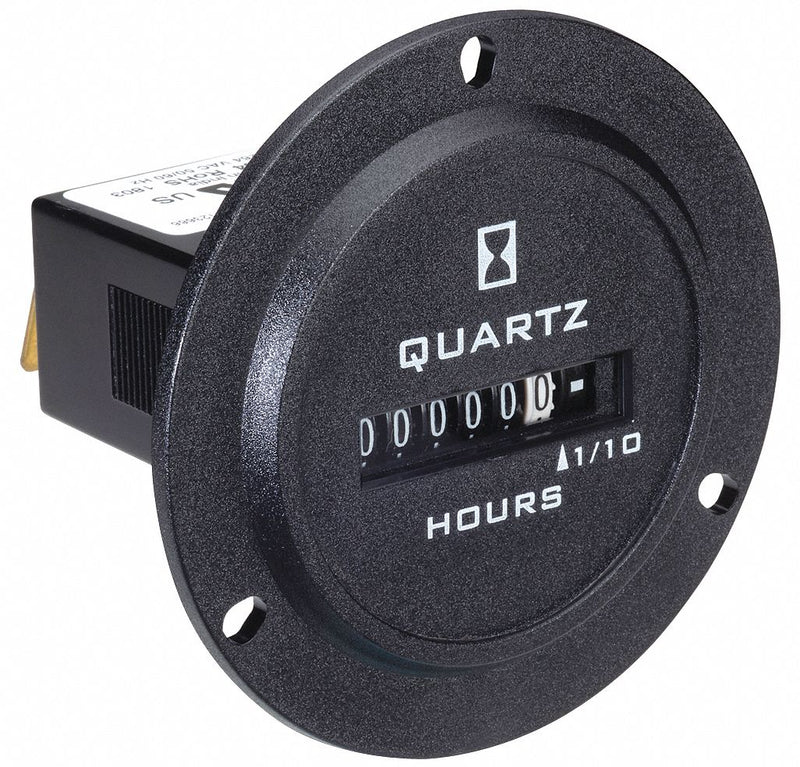

Trumeter 722-0004 Hour Meter, Hour Meters, Front Panel Mounting, Analog, 90 V AC – 264 V AC, Analog, Tenth
UPC: | Harmonization / Schedule B : 9107.00.8000
Country of Origin: India | Shipping Weight: 0.25 lbs
Original price
$56.11
-
Original price
$56.11
Original price
$56.11
$56.11
-
$56.11
Current price
$56.11
Hour Meter, Display Type Electromechanical, Time Range 0 to 99999.9, Bezel Face Size 2.80 in dia, Bezel Face Shape Round, Bezel Face Type Flange Mount, Elapsed Time To 99,999.9, Operating Voltage 120 to 240V AC, Hz 50/60 Hz, Number of Digits 6, Display Units Hours/Tenths, Bezel To Back Length 1.5 in, Ambient Temp. Range -40 Degrees to 185 Degrees F, Material of Construction Black Polymer, Reset Type No Reset, Temp. Range -40 Degrees to 185 Degrees F, Fits 2.0 in dia Panel Opening
| Bezel Face Size | 2.80 in dia |
|---|---|
| Bezel To Back Length | 1.5 in |
| Overall Depth | 2 3/8 in |
| Overall Diameter | 2 3/4 in |
| Cutout Diameter | 2 in |
| Bezel Face Diameter | 2 3/4 in |
| Display Type | Electromechanical |
| Reset Type | No Reset |
| Display Units | Hours/Tenths |
| Number of Digits | 6 |
| Operating Voltage | 120 to 240V AC |
| Time Range | 0 to 99999.9 |
| Bezel Face Shape | Round |
| Bezel Face Type | Flange Mount |
| Temp. Range | -40 Degrees to 185 Degrees F |
| Hz | 50/60 Hz |
| Fits | 2.0 in dia Panel Opening |
| Material of Construction | Black Polymer |
| Ambient Temp. Range | -40 Degrees to 185 Degrees F |
| Elapsed Time To | 99,999.9 |
| Fits Panel Cut Out | 2.00 in dia |
| Mounting Method | 3-Screw |
| Terminal Type | Spade |
| Standards | CE, CUL, RoHS, UKCA, UL |
| Digits | 6 Digits |
| Power Type | Electro-Mechanical |
| Timer Type | Hour Meter |
| Housings | 2-Hole, 3-Hole, Flush Rectangular, SAE Round, Square |
| Certifications | CE, cUL, IP66, NEMA 4 & 12, ROHS, UKCA, UL |
| Input | 90-264V AC |
| Reset Option | Non-Reset |
| Hour Unit Increment | Tenth |
| Counter Display Type | Analog |
| Display Span - Maximum | 99,999.9 |
| Input Voltage - Minimum | 90 V AC |
| Mounting Style | Flange |
| Includes Mounting Hardware | Included |
| Operating Temperature - Maximum | 185 Degrees F |
| Operating Temperature - Minimum | -40 Degrees F |
| Mount Securing Method | 3-Screw |
| Input Voltage - Maximum | 264 V AC |
| NEMA Enclosure Rating | 12, 4 |
| Country of Origin | India |
