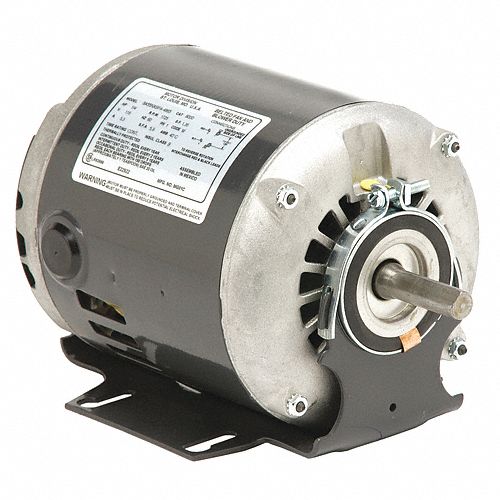

U.s. Motors 4115 Belt Drive Motor, 1 Speed, Open Drip Proof, Cradle Base/Stud Mount, 3/4 hp Horsepower
UPC: | Harmonization / Schedule B : 8501.40.4040
Country of Origin: Mexico | Shipping Weight: 25.0 lbs
Original price
$263.52
-
Original price
$263.52
Original price
$263.52
$263.52
-
$263.52
Current price
$263.52
These single-phase belt-drive HVAC motors are designed to be held in a cradle-base mount with vibration-reducing rings on each end. Also called resilient ring mounts, the cradle suspends the motor and isolates the motor shell from the base to reduce vibration transfer to the driven equipment. Single-phase motors are the most common form of a two-wire AC power supply that consists of one power wire and one neutral wire, often used in electrical outlets in homes.
| Application | Fan/Blower |
|---|---|
| Phase | Single |
| Motor Design | Split-Phase |
| Horsepower | 3/4 hp |
| RPM | 1,725 RPM |
| Number of Speeds | 1 |
| Nameplate Voltage | 115/230V AC |
| Full Load Amps | 11.2/5.6 A |
| Frame Size | 56Y |
| Usable @ 208V | Not Usable at 208V |
| Usable @ 200V | Not Usable at 200V |
| Frequency | 60 Hz |
| Service Factor | 1.25 |
| Motor Thermal Protection | Auto |
| Insulation Class | B |
| Ambient Temperature - Maximum | 40 °C |
| Motor Shaft Rotation | CW/CCW |
| Motor Enclosure Type | Open Drip Proof |
| Mounting Type | Cradle Base; Stud |
| Mounting Position | Horizontal |
| Frame Material | Steel |
| Shaft Diameter | 5/8 in |
| Shaft Length | 1-7/8 in |
| Shaft Design | Flat |
| Bearing Type | Ball |
| Overall Length | 9-13/16 in |
| Length Less Shaft | 7-15/16 in |
| Body Diameter | 6.3 in |
| Weight | 24.7 lb |
| Nominal Efficiency | 69.5 % |
| Standards | CE Certification; CSA; UL |
| Manufacturers Warranty | 1 yr |
| Country of Origin | Mexico |
