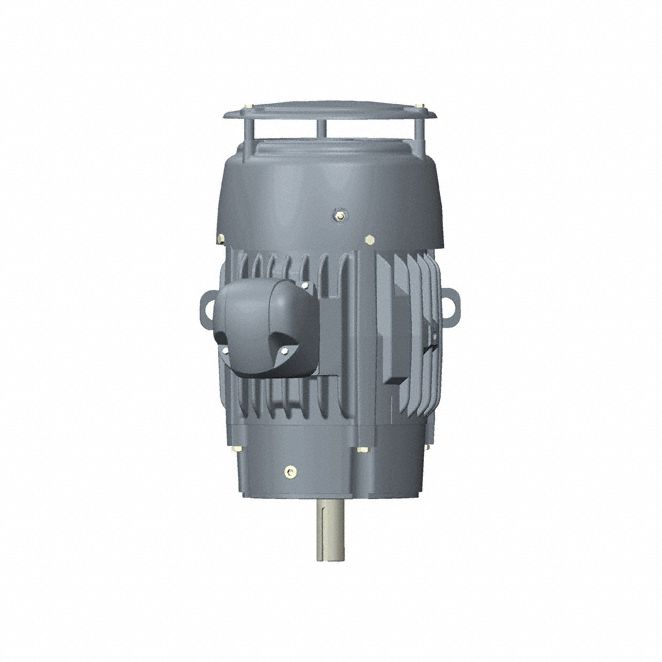

U.s. Motors C125P2FSCR General Purpose Motor, Rigid Base Mount, Totally Enclosed Fan Cooled, 125 hp, 1, 785 RPM
UPC: 786382107390 | Harmonization / Schedule B : 8523.29.5020
Country of Origin: Mexico | Shipping Weight: 1660.0 lbs
Original price
$21,633.06
-
Original price
$21,633.06
Original price
$21,633.06
$21,633.06
-
$21,633.06
Current price
$21,633.06
Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 125 HP, Nameplate RPM 1,785, Frame 444TSC, Voltage 380/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 147.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, 1,701-1,800, CSA Certified, ENERGY cURus
| Length Less Shaft | 38 1/4 in |
|---|---|
| Overall Length | 42 3/4 in |
| Shaft Dia. | 2 3/8 in |
| Shaft Length | 4 1/2 in |
| Frame Size | 444TSC |
| Shaft Diameter | 2 3/8 in |
| Wire Rope Length | 42 3/4 in |
| HP | 125 |
| Nameplate RPM | 1,785 |
| Voltage | 380/460V AC |
| Motor Mounting Type | Rigid Base |
| Full Load Amps | 147.0 A |
| Frame | 444TSC |
| Motor Service Factor | 1.15 |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| RPM Range | 1,701-1,800 |
| Phase | Three |
| No. of Speeds | 1 |
| Motor Application | General Purpose |
| Motor Shaft Rotation | CW/CCW |
| Hz | 60/50 Hz |
| Ins. Class | F |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Nominal Efficiency | 95.4 % |
| Standards | CSA Certified, ENERGY cURus |
| CC Number | CC030A |
| NEMA Design | B |
| Inverter Rated | Yes |
| Motor Thermal Protection | None |
| HP @ 50Hz | 125 |
| Full Load Amps @ 50Hz | 147.0 A |
| Weight | 1,660 lb |
| Duty Cycle | Continuous |
| Service Factor @ 50Hz | 1.15 |
| Voltage @ 50Hz | 380V, 460V |
| Bearing Protection | Double Shields |
| Removable Base | Regreasable |
| RPM @ 50Hz | 1,785/1,475 |
| Inverter Rating | Inverter Rated |
| Frame Material | Steel |
| Mounting Position | Horizontal |
| Nameplate RPM @ 50 Hz | 1,180/980 RPM |
| Application | General Purpose |
| Full Load Current @ 50 Hz | 147.0 A |
| Frequency | 60 Hz |
| Efficiency Rating | NEMA Premium Efficiency |
| Ambient Temperature - Maximum | 40 Degrees C |
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
| Number of Speeds | 1 |
| Full Load Current @ 60 Hz | 147.0 A |
| Insulation Class | F |
| NEMA Design Class | B |
| Nameplate Service Factor @ 60 Hz | 1.15 |
| Bearing Lubrication Type | Regreasable |
| Nameplate Service Factor @ 50 Hz | 1.15 |
| Nameplate Horsepower @ 50 Hz | 125 hp |
| Shaft Design | Keyed |
| Product Type | General Purpose Motor |
| Nameplate Voltage @ 50 Hz | 200V AC, 208V AC, 230V AC, 400V AC, 460V AC |
| Country of Origin | Mexico |
