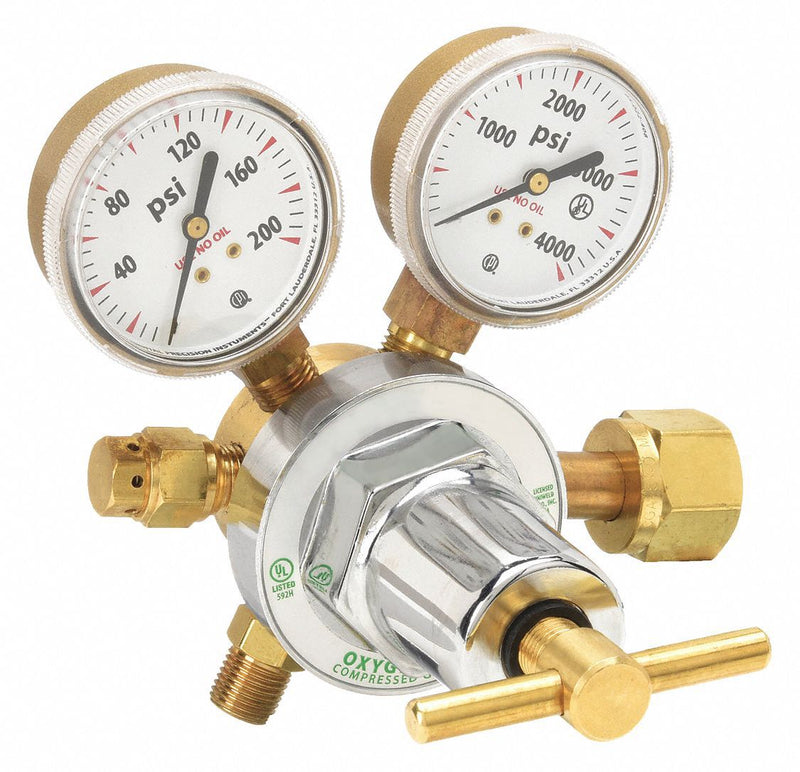

Uniweld RUH8210 Stage Regulator, Single Stage, Oxygen, CGA 540, 0.908-14 Inlet x 9/16-18 Outlet, 5 to 125 psig
Original price
$279.35
-
Original price
$279.35
Original price
$279.35
$279.35
-
$279.35
Current price
$279.35
Stage Regulator, Maximum Gauge Outlet Pressure 4,000 psig, Number of Stages Single Stage, Compatible Gas Type Oxygen, Control Type T-Handle, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.908 In.-14, Outlet Pressure (Maximum) 125 psig, Outlet Connection Gender Male, Outlet Connection Size 9/16 In.-18, Outlet Connection Type UNF, Body Material Brass, Body Finish Polished, Diaphragm Material Neoprene, CGA Number CGA 540, Hose Fitting Size B.
| Outlet Connection Size | 9/16"-18 |
| Gauge Diameter | 2 in |
| Inlet Connection Size | 0.908"-14 |
| Overall Length | 9-7/16" |
| Hose Fitting Size | B |
| CGA Number | CGA 540 |
| Compatible Gas Type | Oxygen |
| Body Material | Polished Brass |
| Number of Stages | Single Stage |
| Outlet Pressure (Maximum) | 125 psig |
| Outlet Pressure (Minimum) | 5 psig |
| Regulator Supply Type | Cylinder |
| Includes | Easy-to-Read 2 in Gauge, Heavy Duty Mechanical Stem Type Seat and Nozzle Assembly, Polished Chrome Bonnet |
| Delivery Pressure Range | 5 to 125 psi |
| Diaphragm Material | Neoprene |
| Gauges Delivery Pressure | 200 psi |
| Regulator Capacity | Medium Duty |
| Supply Pressure Gauge | 0 to 4000 psi |
| Regulator Application | General Purpose |
| Delivery | 5 to 125 psi |
| Application | General Purpose |
| Standards | UL Listed |
| Features | Delrin Bushing for Smooth Flow Adjustment, Fine Mesh Filter Screen Between Inlet and Seat, Porous Metal Inlet Filter (Except CO2 Models), Pressure Relief Device for Low Pressure Gauge Protection Only |
| Duty Rating | Heavy Duty |
| Inlet Pressure (Maximum) | 3,000 psig |
| Outlet Connection Type | UNF |
| Inlet Thread Direction | Right Hand |
| Regulator Series | RUH82 |
| Bonnet Material | Polished Chrome |
| Inlet Connection Gender | Male |
| Outlet Thread Direction | Right Hand |
| Inlet Connection Type | NGO |
| Control Type | T-Handle |
| Maximum Gauge Outlet Pressure | 4,000 psig |
| Body Finish | Polished |
| Outlet Connection Gender | Male |
| Country of Origin | United States |
