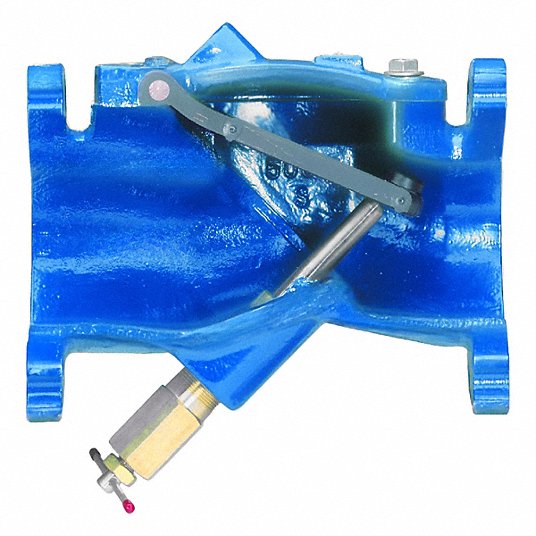

Val-Matic 508ABFK Swing Flex Back Flow ActuatorCheck Valve Swing, Inline Valve Body, 8 in Pipe Size, Std
Original price
$6,290.59
-
Original price
$6,290.59
Original price
$6,290.59
$6,290.59
-
$6,290.59
Current price
$6,290.59
Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Swing Flex, Body Material - Valves Cast Iron, Pipe or Tube Size 8 in, Connection Type Flange x Flange, Cracking Pressure 0.25 psi, Mounting Orientation Horizontal, Vertical, Seal Material Metal, Max. Temp. - Valves 200 Degrees F, Min. Temp. - Valves 33 Degrees F, Max. Water Pressure - Valves 250 psi, Max. Steam Pressure - Valves Not Rated, Seat Material Buna-N, Flow - Valves 2,250 gpm, Full Flow - Valves No
| Connection Type | Flanged | Connection | Flanged |
| Body Material | Cast Iron ASTM A 126 | Max. Temp. - Valves | 200 Degrees F |
| Max. Pressure | 250 psig | Mounting Position | Horizontal |
| Item - Check Valves | Check Valve | Application - Valves | General Purpose |
| Flow Design | Single | Seat Material - Check Valves | Buna-N |
| Max. Steam Pressure - Valves | Not Rated | Seat Material | Buna N |
| Standards | ANSI B16.1 Class 125 | Full Flow - Valves | No |
| Mounting Orientation - Check Valves | Horizontal, Vertical | Body Material - Valves | Cast Iron |
| Seal Material - Check Valves | Metal | Connection Type - Check Valves | Flange x Flange |
| Mechanism and Body Design | Inline Swing Flex | Sub-Category | Iron |
| Max. Water Pressure - Valves | 250 psi | Item | Swing Flex Back Flow Actuator Check Valve |
| Max. Temp. | -70 Degrees to 215 Degrees F | Cracking Pressure - Check Valves | 0.250 psi |
| Flow - Valves | 2250 gpm | Flow | 2250 gpm |
| Max. Water Pressure | 250 psi | Cracking Pressure | 0.25 psi |
| Material of Construction | Cast Iron ASTM A 126 | Min. Temp. - Valves | 33 Degrees F |
| Seal Material | Buna-N | Temp. Range | -32 to 210 Degrees F |
| Mounting Orientation | Horizontal, Vertical | Type | Swing Flex, Back Flow Actuator |
| ANSI Flange Class | Class 125 | Silent Check | Standard |
| 3-A Standard Compliance | Not Rated | Check Mechanism Material | Steel |
| Maximum Pressure - Operating | 250 psi | Operating Temperature - Minimum | 33 Degrees F |
| NSF Certifications for Food and Drinking Water | NSF 61 | For Media | Drinking Water |
| Connection Type - Side 1 | Flange | Connection Type - Side 2 | Flange |
| Operating Temperature - Maximum | 200 Degrees F | Valve Body Style | Inline |
| Check Mechanism | Swing | Vacuum Service Rating | Not Rated |
| Maximum Pressure - Steam | Not Rated | Valve Series | 500A |
