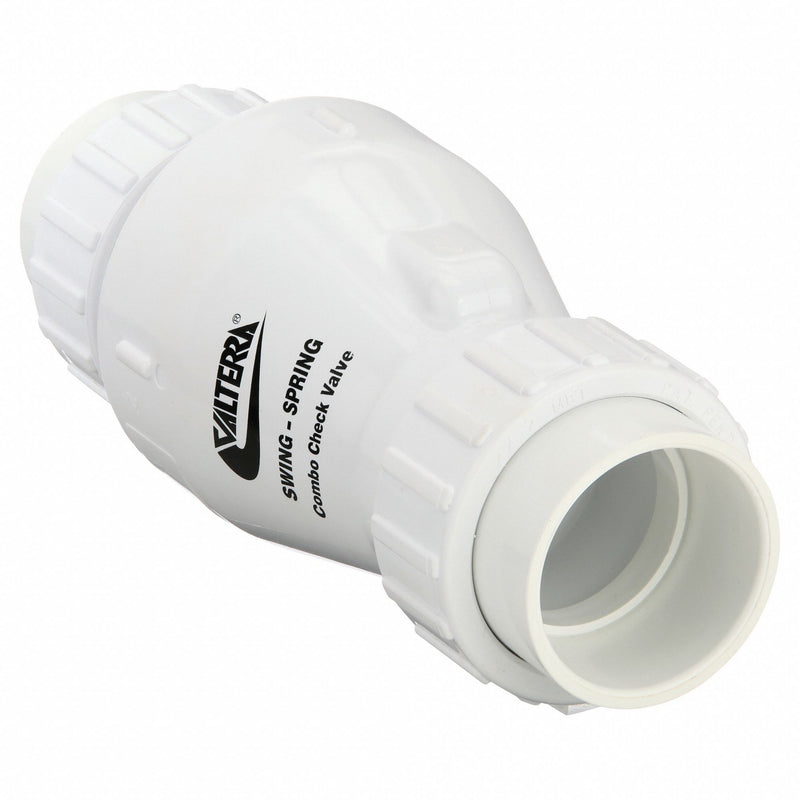

Valterra 200-U20 Check Valve, Swing, Inline Valve Body, 2 in Pipe Size, True Union Socket, PVC, Female, PVC
Original price
$56.11
-
Original price
$56.11
Original price
$56.11
$56.11
-
$56.11
Current price
$56.11
Check Valve, Flow Design Single, Mechanism and Body Design Inline Spring Swing, Body Material PVC, Pipe or Tube Size 2 in, Connection Type Union x Union, Cracking Pressure 0.5 psi, Mounting Orientation Horizontal, Vertical, Seal Material NBR, Max. Temp. 73 Degrees F, Min. Temp. 35 Degrees F, Max. Water Pressure 150 psi, Max. Steam Pressure Not Rated, Seat Material PVC, Spring Material Stainless Steel, Flow 18 gpm
| Connection Type | Union x Union |
| Body Material | PVC |
| Max. Pressure | 150 psi |
| Spring Material | 316 Stainless Steel |
| Seat Material | PVC |
| Cracking Pressure - Check Valves | 0.500 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Min. Temp. - Valves | 35 Degrees F |
| Flow Design | Single |
| Max. Temp. | 73 Degrees F |
| Material of Construction | PVC |
| Max. Steam Pressure - Valves | Not Rated |
| Seal Material | Buna-N |
| Body Material - Valves | PVC |
| Full Flow - Valves | No |
| Cracking Pressure | 0.5 psi |
| Mechanism and Body Design | Inline Spring Swing |
| Seal Material - Check Valves | NBR |
| Seat Material - Check Valves | PVC |
| Spring Material - Check Valves | Stainless Steel |
| Connection Type - Check Valves | Union x Union |
| Sub-Category | PVC |
| Mounting Position | Any |
| Max. Temp. - Valves | 73 Degrees F |
| Max. Water Pressure | 150 psi |
| Application - Valves | General Purpose |
| Flow - Valves | 18.00 gpm |
| Max. Water Pressure - Valves | 150 psi |
| Flow | 18 gpm |
| Mounting Orientation | Horizontal, Vertical |
| Operating Temperature - Minimum | 35 Degrees F |
| Operating Temperature - Maximum | 73 Degrees F |
| Check Mechanism Material | 316 Stainless Steel |
| Valve Body Style | Inline |
| Connection Type - Side 1 | Union Socket |
| Connection Type - Side 2 | Union Socket |
| Maximum Pressure - Steam | Not Rated |
| Maximum Pressure - Operating | 150 psi |
| For Media | General Purpose |
| Connection Gender - Side 2 | Female |
| Check Mechanism | Swing |
| Connection Gender - Side 1 | Female |
| Country of Origin | United States |
