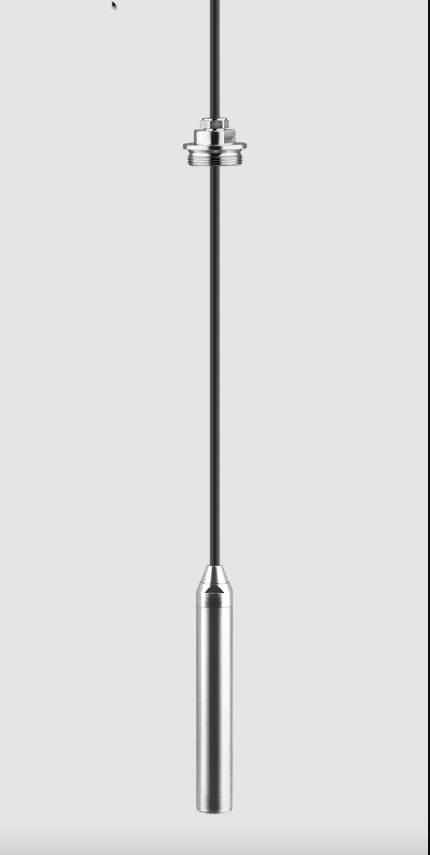

Vegawell 52 WL52.XMGADTD1BD1X Submersible pressure transmitter with ceramic measuring cell
Original price
$2,140.00
-
Original price
$2,140.00
Original price
$2,140.00
$2,140.00
-
$2,140.00
Current price
$2,140.00
| Product name | VEGAWELL 52 |
| Article code | WL52.XMGADTD1BD1X |
| Order code | US90053128 |
| Unit for lengths | Metre / Millimetre |
| Approval directive / Scope | Shipbuilding / World-wide |
| Approval | Ship approval |
| Fastening / Material | Adjustable screw connection for suspension cable G1½ PN3, ISO228-1 / 316L |
| Version / Process temperature | Suspension cable PUR / -20...+80°C |
| Length | individually selectable length (PE/PUR/FEP) |
| Total length | 30.000 m |
| Transmitter material / Diameter | Duplex (1.4462) / 32mm |
| Sealing concept / Wetted seal | Single / FKM (VP2/A) |
| Unit for pressure | bar |
| Measuring range | rel. / 0...+0.2 bar (0...+20 kPa) |
| Electronics | Two-wire 4 ... 20 mA/HART + Four-wire PT100 |
| Address setting | No |
| Accuracy class | 0.20% |
| Customer-specific adjustment | No |
| - Unit | bar |
| - Initial value | 0.000 |
| - Final value | 0.200 |
| Linearization | No |
| Transmitter option | without |
| Customer Tag | without |
| Test certificate | with 5 measurement points |
| Foodstuff/Pharmaceutical certificate | without |
| Additional cleaning procedure | without |
| Certificate / Standard | without |
| Supply certificates | with goods |
| Operating instructions | EN - English |
| Number of operating instructions | 1 |
| Customs tariff number (HS code) | 90261029 |
