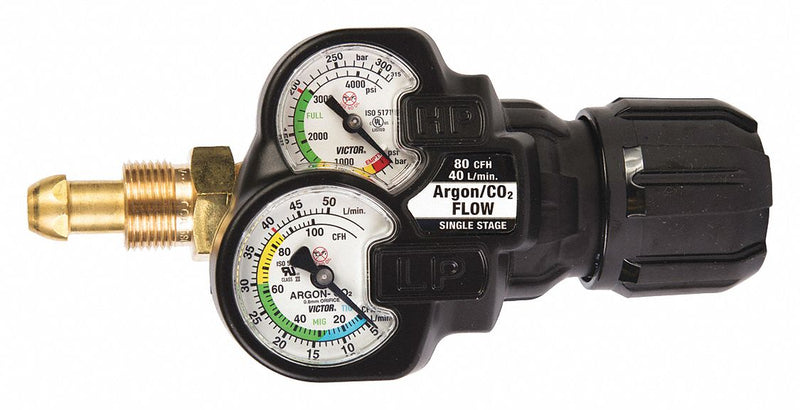

Victor 0781-3641 Gas Flow Gauge Regulator, Argon/CO2, Single Stage, CGA 580 Inlet, 80 cfh
Original price
$332.11
-
Original price
$332.11
Original price
$332.11
$332.11
-
$332.11
Current price
$332.11
Gas Regulator, Compatible Gas Type Argon, Carbon Dioxide, Mounting Type Cylinder, Inlet Connection Gender Female, Inlet Thread Direction Right Hand, Inlet Connection Size 0.825 In.-14, Inlet Connection Type NGO, Maximum Inlet Pressure 4,000 psig, Outlet Pressure (Maximum) 80 psig, Outlet Connection Gender Female, Outlet Connection Size 5/8 In.-18, Outlet Connection Type UNF, Argon Flow Rate (Maximum) 80 scfh, Carbon Dioxide Flow Rate (Maximum) 80 scfh, Number of Stages Single Stage
| Compatible Gas Type | Argon, Carbon Dioxide |
|---|---|
| Body Material | Brass |
| Number of Stages | Single Stage |
| Outlet Pressure (Maximum) | 80 psig |
| Outlet Pressure (Minimum) | 0 psig |
| Regulator Supply Type | Cylinder |
| Diaphragm Material | Neoprene |
| Supply Pressure Gauge | 3,000 psi |
| Delivery Pressure Range | 0 to 40 psi |
| Standards | ASTM G175, CGA E-4, ETL Listed, UL252 |
| Stages | Single Stage |
| Application | Industrial and General Fabrication, Light Fabrication, Repair and Maintenance, Structural Steel Fabrication |
| Duty Rating | Heavy Duty |
| Features | Slam Knob Absorbs Impact in the Event of Cylinder Fall |
| Control Type | Knob |
| Carbon Dioxide Flow Rate (Minimum) | 1 scfh |
| Inlet Connection Gender | Female |
| Outlet Thread Direction | Right Hand |
| Flowmeter Series | Edge 2.0 ESS32 |
| Argon Flow Rate (Minimum) | 1 scfh |
| CGA Number | CGA 580 |
| Outlet Connection Gender | Female |
| Inlet Connection Type | NGO |
| Inlet Thread Direction | Right Hand |
| Product Type | Flow Gauge Regulator |
| Argon Flow Rate (Maximum) | 80 scfh |
| Outlet Connection Type | UNF |
| Maximum Gauge Inlet Pressure | 4,000 psi |
| Carbon Dioxide Flow Rate (Maximum) | 80 scfh |
| Inlet Pressure (Maximum) | 4,000 psig |
| Country of Origin | Mexico |
