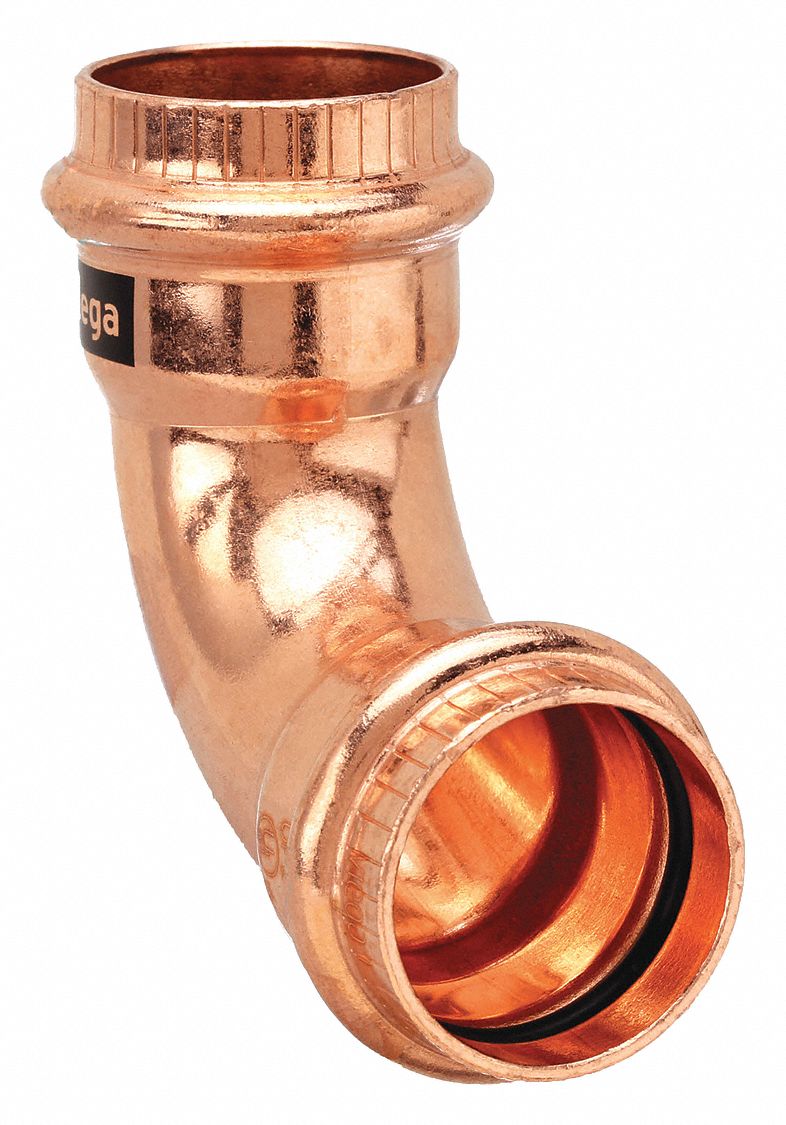

Viega 77037 90 Degree Elbow Copper, Press-Fit x Press-Fit, 1-1/2 in x 1-1/2 in Copper Tube Size
Original price
$59.63
-
Original price
$59.63
Original price
$59.63
$59.63
-
$59.63
Current price
$59.63
Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 1 1/2 in, Fitting Side B Copper Tube Size 1 1/2 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Elbow, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88
| Tube Fitting Material | Copper |
|---|---|
| Specific Fitting Shape | 90 Degrees Elbow |
| Fitting Connection Type | Press x Press |
| Max. Pressure | 200 psi |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Pipe Fitting Connection Type | Press x Press |
| Specific Pipe Fitting Shape | 90 Degrees Elbow |
| Standards | ASTM B75, ASTM B88 |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Fitting Material | Copper |
| Minimum Operating Temperature | 0 Degrees F |
| Maximum Operating Pressure | 200 psi |
| Fitting Side B Connection Type | Press-Fit |
| Maximum Operating Temperature | 250 Degrees F |
| Fitting Shape | 90 Degrees Elbow |
| O-Ring Material | EPDM |
| Application | Potable Water |
| Fitting Side A Connection Type | Press-Fit |
| Fitting Side 1 Connection Type | Press-fit |
| For Media Type | Potable Water |
| Operating Temperature - Maximum | 250 Degrees F |
| Fitting Side 2 Connection Type | Press-fit |
| Operating Pressure - Maximum | 200 psi |
| Operating Temperature - Minimum | 0 Degrees F |
| Connector Type | Coupling |
| Center Stop Type | Dimple Center Stop |
| Restrictions | This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption). |
| Country of Origin | United States |
