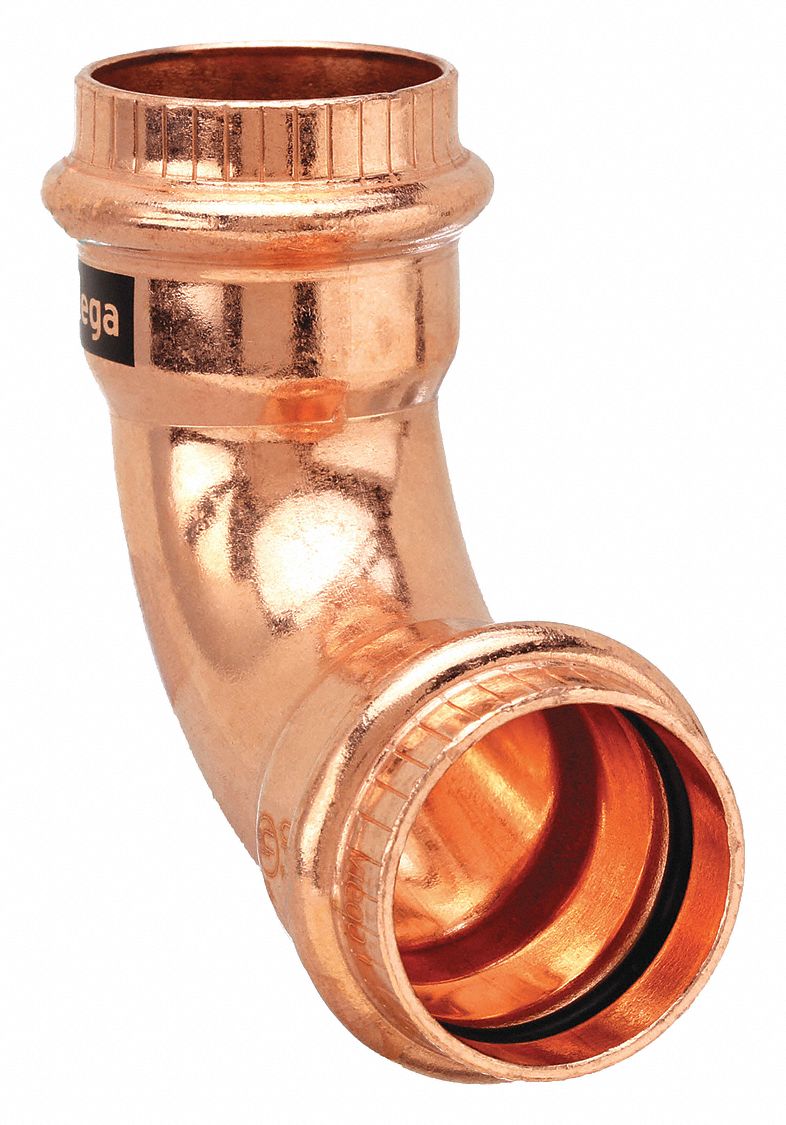

Viega 77042 90 Degree Elbow Copper, Press-Fit x Press-Fit, 2 in x 2 in Copper Tube Size
Original price
$112.16
-
Original price
$112.16
Original price
$112.16
$112.16
-
$112.16
Current price
$112.16
Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 2 in, Fitting Side B Copper Tube Size 2 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Elbow, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88
| Tube Fitting Material | Copper |
|---|---|
| Specific Fitting Shape | 90 Degrees Elbow |
| Fitting Connection Type | Press x Press |
| Specific Pipe Fitting Shape | 90 Degrees Elbow |
| Basic Pipe Fitting Material | Metal |
| Pipe Fitting Connection Type | Press x Press |
| Standards | ASTM B75, ASTM B88 |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Max. Pressure | 200 psi |
| Basic Pipe Fitting Shape | Elbow |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Maximum Operating Pressure | 200 psi |
| Application | Potable Water |
| Minimum Operating Temperature | 0 Degrees F |
| Fitting Material | Copper |
| Fitting Shape | 90 Degrees Elbow |
| Fitting Side A Connection Type | Press-Fit |
| O-Ring Material | EPDM |
| Fitting Side B Connection Type | Press-Fit |
| Maximum Operating Temperature | 250 Degrees F |
| For Media Type | Potable Water |
| Operating Pressure - Maximum | 200 psi |
| Operating Temperature - Minimum | 0 Degrees F |
| Fitting Side 1 Connection Type | Press-fit |
| Operating Temperature - Maximum | 250 Degrees F |
| Fitting Side 2 Connection Type | Press-fit |
| Connector Type | Coupling |
| Center Stop Type | Dimple Center Stop |
| Restrictions | This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption). |
| Country of Origin | United States |
