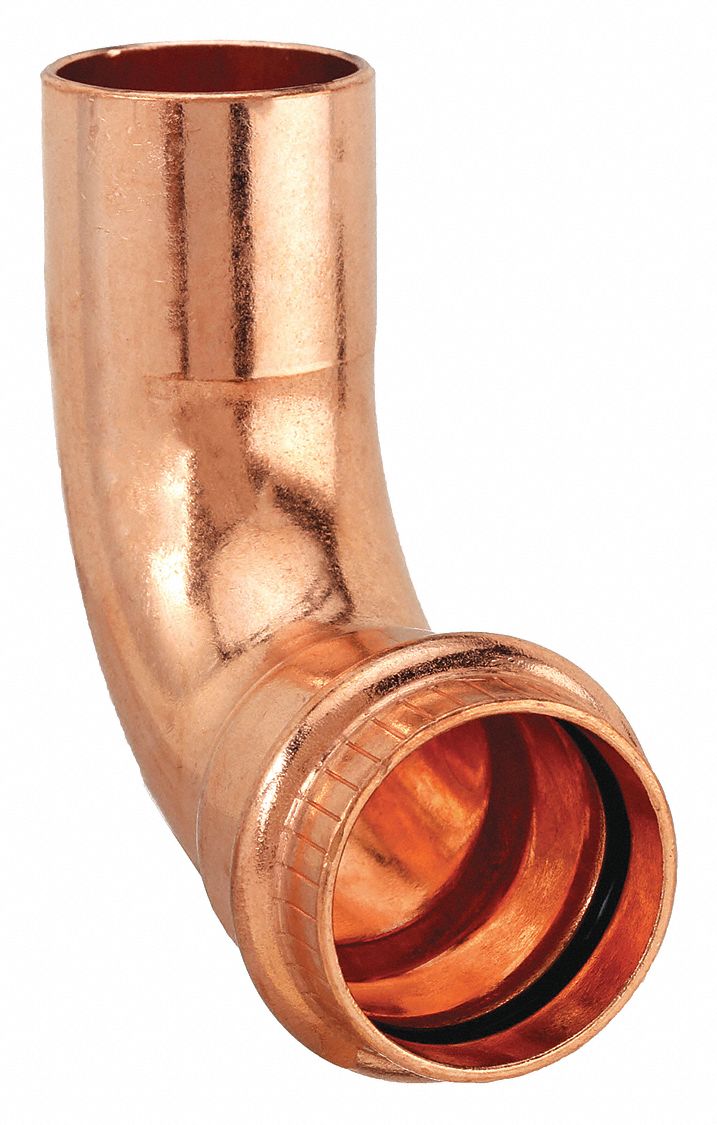

Viega 77057 90 Degree Street Elbow Copper, Press-Fit x FTG, 1 in x 1 in Copper Tube Size
Original price
$18.95
-
Original price
$18.95
Original price
$18.95
$18.95
-
$18.95
Current price
$18.95
Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FTG, Fitting Side A Copper Tube Size 1 in, Fitting Side B Copper Tube Size 1 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Street Elbow Adapter, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88
| Tube Fitting Material | Copper |
|---|---|
| Specific Fitting Shape | 90 Degrees Street Elbow Adapter |
| Fitting Connection Type | Press x Street |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Standards | ASTM B75, ASTM B88 |
| Max. Pressure | 200 psi |
| Basic Pipe Fitting Material | Metal |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Specific Pipe Fitting Shape | 90 Degrees Elbow |
| Basic Pipe Fitting Shape | Elbow |
| Pipe Fitting Connection Type | Press x Street |
| Minimum Operating Temperature | 0 Degrees F |
| Maximum Operating Pressure | 200 psi |
| Fitting Shape | 90 Degrees Elbow |
| Maximum Operating Temperature | 250 Degrees F |
| Fitting Side B Connection Type | FTG |
| O-Ring Material | EPDM |
| Application | Potable Water |
| Fitting Side A Connection Type | Press-Fit |
| Fitting Material | Copper |
| Operating Pressure - Maximum | 200 psi |
| Fitting Side 1 Connection Type | Press-fit |
| Connector Type | Adapter |
| For Media Type | Potable Water |
| Operating Temperature - Maximum | 250 Degrees F |
| Operating Temperature - Minimum | 0 Degrees F |
| Center Stop Type | Dimple Center Stop |
| Fitting Side 2 Connection Type | FTG |
| Restrictions | This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption). |
| Country of Origin | United States |
