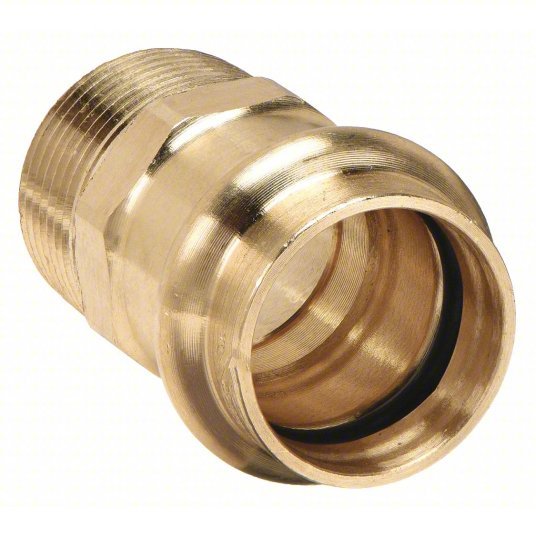

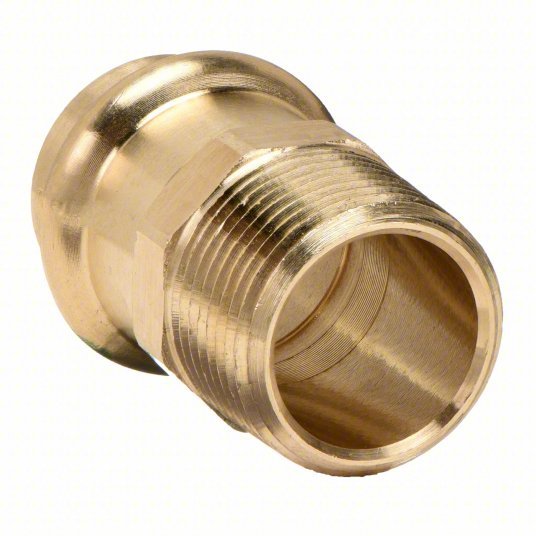

Viega 79235 ProPress Adapter Bronze, Press-Fit x MNPT, 3/4 in Copper Tube Size, 1 in Pipe Size
Original price
$21.39
-
Original price
$21.39
Original price
$21.39
$21.39
-
$21.39
Current price
$21.39
Adapter, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type MNPT, Fitting Side A Copper Tube Size 3/4 in, Fitting Material Bronze, Fitting Side B Pipe Size 1 in, O-Ring Material EPDM, Specific Fitting Shape Straight Adapter, Overall Length 2 3/32 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88
| Item | Adapter |
| Tube Fitting Material | Bronze |
| Specific Fitting Shape | Straight Adapter |
| Fitting Connection Type | Press x Male Pipe Thread |
| Basic Pipe Fitting Shape | Adapter |
| Max. Pressure | 200 psi |
| Specific Pipe Fitting Shape | Adapter |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Basic Pipe Fitting Material | Metal |
| Pipe Fitting Connection Type | Press x Male Pipe Thread |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Standards | ASTM B75, ASTM B88 |
| Fitting Material | Bronze |
| Connection Type | Press-Fit x MNPT |
| Stop and Shape | Straight Adapter |
| Application | Potable Water |
| Maximum Operating Temperature | 250 Degrees F |
| Fitting Side B Connection Type | MNPT |
| Maximum Operating Pressure | 200 psi |
| End Connection Type | Press, Threaded |
| Fitting Shape | Adapter |
| Fitting Side A Connection Type | Press-Fit |
| O-Ring Material | EPDM |
| Minimum Operating Temperature | 0 Degrees F |
