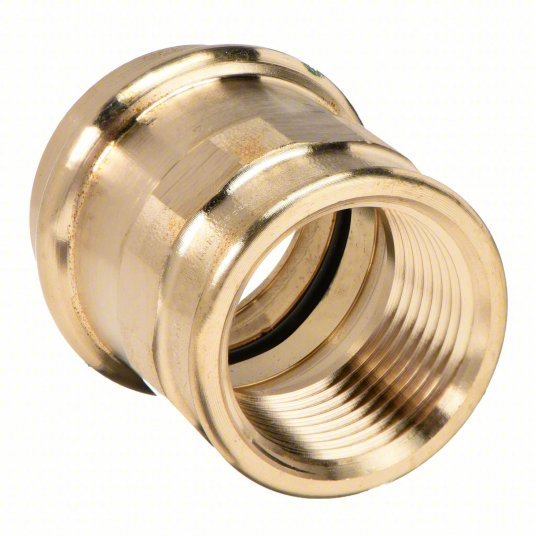

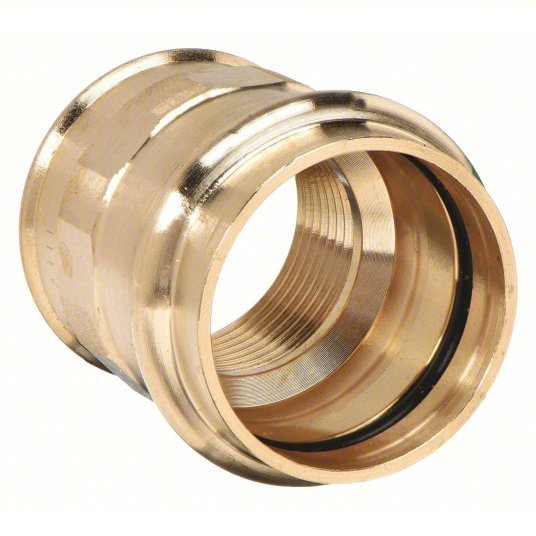

Viega 79315 Adapter Bronze, Press-Fit x FNPT, 3/4 in Copper Tube Size, 3/4 in Pipe Size
Original price
$8.08
-
Original price
$8.08
Original price
$8.08
$8.08
-
$8.08
Current price
$8.08
Adapter, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FNPT, Fitting Side A Copper Tube Size 3/4 in, Fitting Material Bronze, Fitting Side B Pipe Size 3/4 in, O-Ring Material EPDM, Specific Fitting Shape Straight Adapter, Overall Length 1 13/16 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88
| Item | Adapter |
| Tube Fitting Material | Bronze |
| Specific Fitting Shape | Straight Adapter |
| Fitting Connection Type | Press x Female Pipe Thread |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Specific Pipe Fitting Shape | Adapter |
| Max. Pressure | 200 psi |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Basic Pipe Fitting Shape | Adapter |
| Standards | ASTM B75, ASTM B88 |
| Basic Pipe Fitting Material | Metal |
| Pipe Fitting Connection Type | Press x Female Pipe Thread |
| Connection Type | Press-Fit x FNPT |
| O-Ring Material | EPDM |
| Maximum Operating Pressure | 200 psi |
| Fitting Shape | Adapter |
| Fitting Material | Bronze |
| Minimum Operating Temperature | 0 Degrees F |
| End Connection Type | Press, Threaded |
| Fitting Side B Connection Type | FNPT |
| Fitting Side A Connection Type | Press-Fit |
| Stop and Shape | Straight Adapter |
| Application | Potable Water |
| Maximum Operating Temperature | 250 Degrees F |
