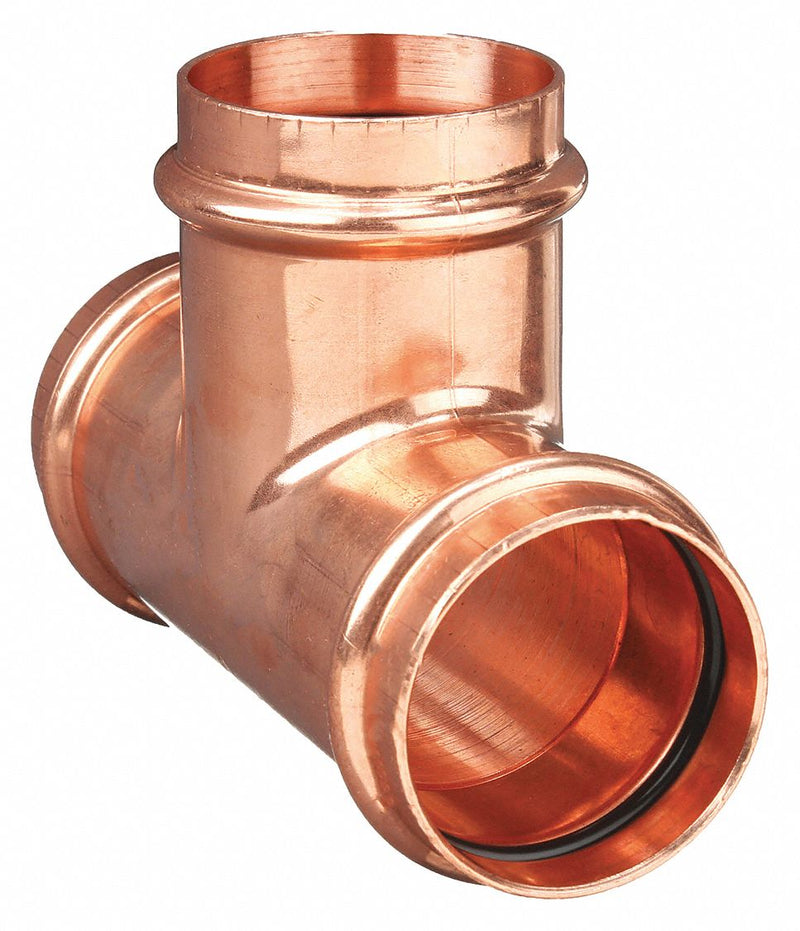

Viega Propress 2918 Crimp Tee Fitting

Viega Propress 2918 Crimp Tee Fitting, 1-1/2 x 1-1/2 x 1-1/2 in CTS

$77.45 - $77.45
$77.45
$77.45 - $77.45
$77.45

Crimp Tee Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side C Connection Type Press-Fit, Fitting Side A Copper Tube Size 1 1/2 in, Fitting Side B Copper Tube Size 1 1/2 in, Fitting Side C Copper Tube Size 1 1/2 in, Fitting Material Copper, Includes Center Stop Rolled Center Stop, O-Ring Material EPDM, Specific Fitting Shape Reducing Tee, Overall Length 5 1/8 in, Maximum Operating Pressure 200 psi

Tube Fitting Material Copper
Specific Fitting Shape Reducing Tee
Fitting Connection Type Press x Press x Press
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Pipe Fitting Connection Type Press x Press x Press
Specific Pipe Fitting Shape Tee
Standards ASTM B75, ASTM B88
Max. Pressure 200 psi
Basic Pipe Fitting Material Metal
Temp. Range 0 Degrees to 250 Degrees F
Basic Pipe Fitting Shape Tee
Compatible Tube Material Copper
Maximum Operating Temperature 250 Degrees F
Application Potable Water
Fitting Side A Connection Type Press-Fit
Minimum Operating Temperature 0 Degrees F
Maximum Operating Pressure 200 psi
Fitting Side B Connection Type Press-Fit
Fitting Side C Connection Type Press-Fit
Fitting Shape Tee
O-Ring Material EPDM
Fitting Material Copper
Operating Temperature - Minimum 0 Degrees F
Operating Temperature - Maximum 250 Degrees F
Operating Pressure - Maximum 200 psi
Fitting Side 3 Connection Type Press-fit
Connector Type Reducer
For Media Type Potable Water
Fitting Side 2 Connection Type Press-fit
Fitting Side 1 Connection Type Press-fit
Includes Center Stop Rolled Center Stop
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin Germany
