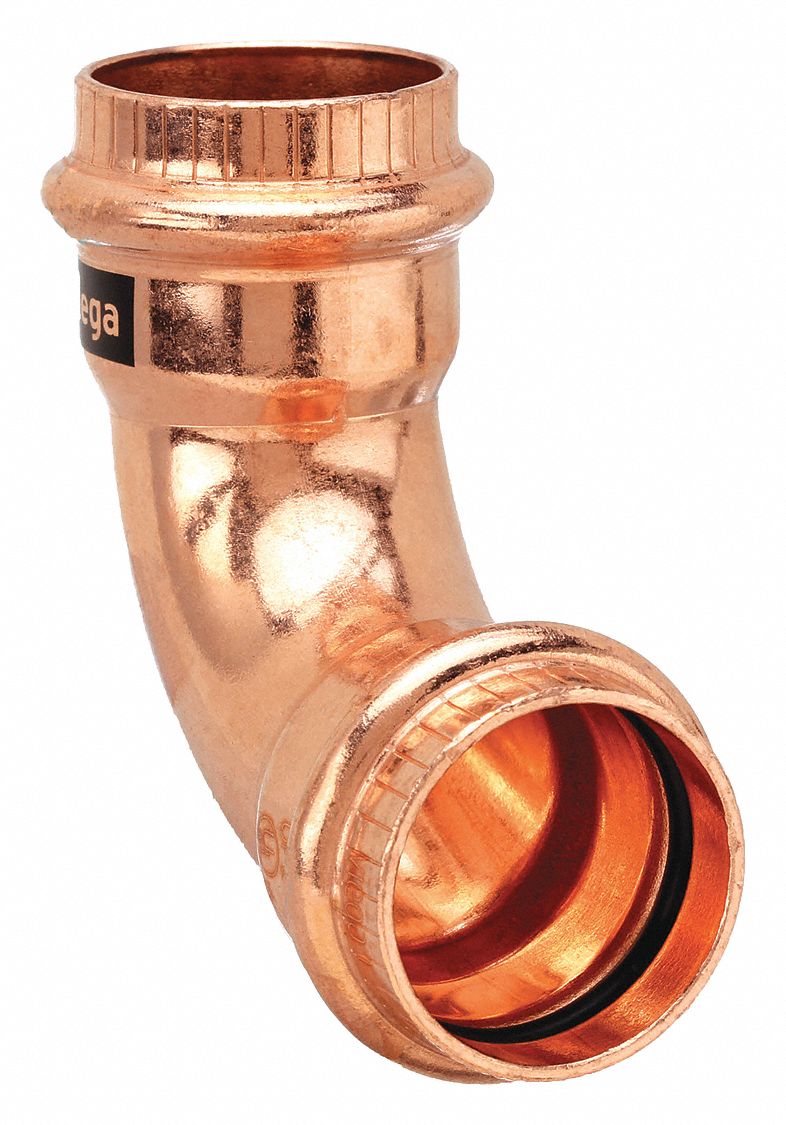

Viega Propress 77022 Crimp Elbow Fitting, 90° Elbow, 3/4 in CTS x 3/4 in CTS, Press-fit x Press-fit
Original price
$8.33
-
Original price
$8.33
Original price
$8.33
$8.33
-
$8.33
Current price
$8.33
Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 3/4 in, Fitting Side B Copper Tube Size 3/4 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Elbow, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88
| Tube Fitting Material | Copper |
|---|---|
| Specific Fitting Shape | 90 Degrees Elbow |
| Fitting Connection Type | Press x Press |
| Standards | ASTM B75, ASTM B88 |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Basic Pipe Fitting Material | Metal |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Pipe Fitting Connection Type | Press x Press |
| Specific Pipe Fitting Shape | 90 Degrees Elbow |
| Max. Pressure | 200 psi |
| Basic Pipe Fitting Shape | Elbow |
| Minimum Operating Temperature | 0 Degrees F |
| Application | Potable Water |
| Fitting Side B Connection Type | Press-Fit |
| Maximum Operating Temperature | 250 Degrees F |
| Fitting Material | Copper |
| Maximum Operating Pressure | 200 psi |
| O-Ring Material | EPDM |
| Fitting Shape | 90 Degrees Elbow |
| Fitting Side A Connection Type | Press-Fit |
| Fitting Side 1 Connection Type | Press-fit |
| Operating Pressure - Maximum | 200 psi |
| Operating Temperature - Maximum | 250 Degrees F |
| Operating Temperature - Minimum | 0 Degrees F |
| For Media Type | Potable Water |
| Fitting Side 2 Connection Type | Press-fit |
| Center Stop Type | Dimple Center Stop |
| Connector Type | Coupling |
