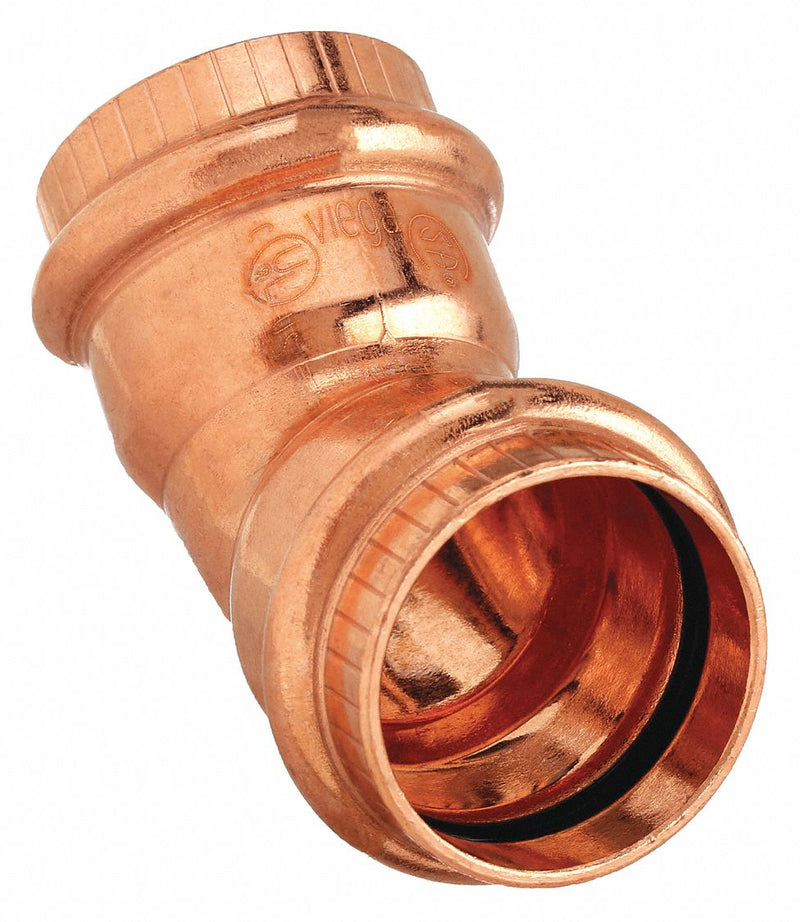

Viega ProPress 77023 Crimp Elbow Fitting, 45° Elbow, 3/4 in CTS x 3/4 in CTS size, Press-fit x Press-fit
Original price
$7.51
-
Original price
$7.51
Original price
$7.51
$7.51
-
$7.51
Current price
$7.51
These press tube fittings are suitable for plumbing applications with potable water. They crimp onto tubing and have a sealing O-ring to ensure a secure, leaktight connection.
| Tube Fitting Material | Copper |
| Specific Fitting Shape | 45 Degrees Elbow |
| Fitting Connection Type | Press x Press |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Pipe Fitting Connection Type | Press x Press |
| Standards | ASTM B75, ASTM B88 |
| Basic Pipe Fitting Material | Metal |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Specific Pipe Fitting Shape | 45 Degrees Elbow |
| Max. Pressure | 200 psi |
| Basic Pipe Fitting Shape | Elbow |
| Minimum Operating Temperature | 0 Degrees F |
| Fitting Side A Connection Type | Press-Fit |
| Fitting Shape | 45 Degrees Elbow |
| Maximum Operating Temperature | 250 Degrees F |
| Fitting Material | Copper |
| Maximum Operating Pressure | 200 psi |
| Fitting Side B Connection Type | Press-Fit |
| Application | Potable Water |
| O-Ring Material | EPDM |
| Operating Temperature - Minimum | 0 Degrees F |
| Fitting Side 1 Connection Type | Press-fit |
| Operating Pressure - Maximum | 200 psi |
| For Media Type | Potable Water |
| Fitting Side 2 Connection Type | Press-fit |
| Operating Temperature - Maximum | 250 Degrees F |
| Connector Type | Coupling |
| Center Stop Type | Dimple Center Stop |
| Country of Origin | Germany |
