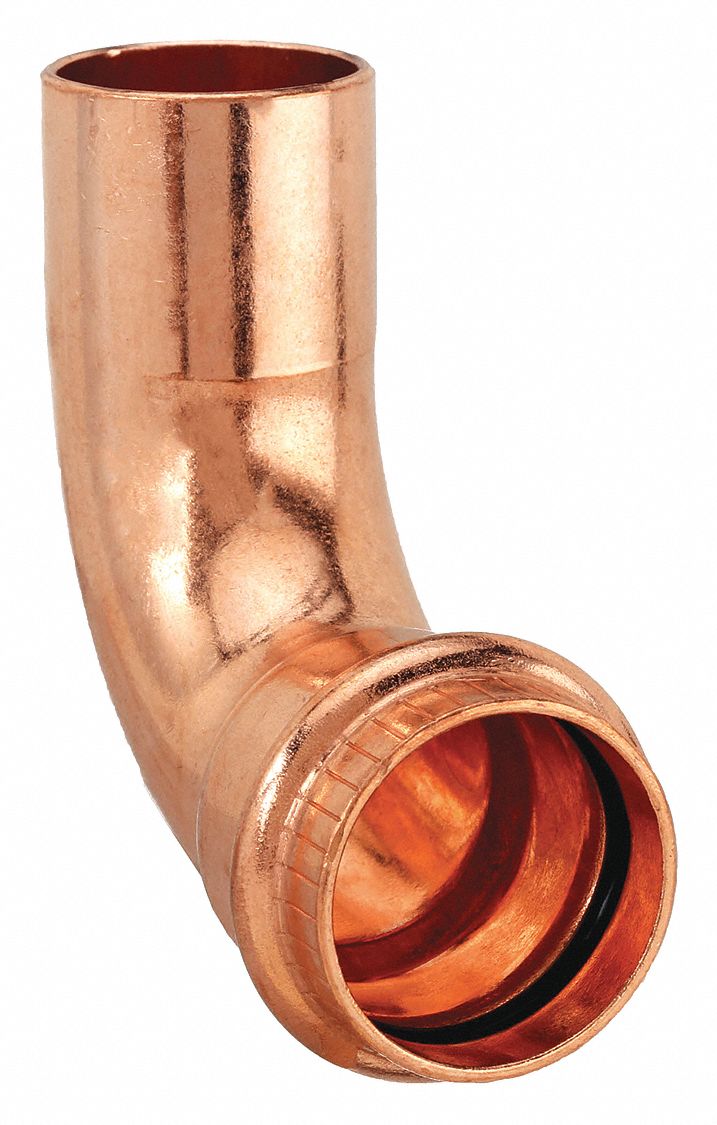

Viega Propress 77052 Crimp Elbow Fitting, 90° Elbow, 3/4 in CTS x 3/4 in CTS, Press-fit x FTG, Copper
Original price
$8.89
-
Original price
$8.89
Original price
$8.89
$8.89
-
$8.89
Current price
$8.89
Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FTG, Fitting Side A Copper Tube Size 3/4 in, Fitting Side B Copper Tube Size 3/4 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Street Elbow Adapter, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88
| Tube Fitting Material | Copper |
|---|---|
| Specific Fitting Shape | 90 Degrees Street Elbow Adapter |
| Fitting Connection Type | Press x Street |
| Pipe Fitting Connection Type | Press x Street |
| Standards | ASTM B75, ASTM B88 |
| Specific Pipe Fitting Shape | 90 Degrees Elbow |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Basic Pipe Fitting Material | Metal |
| Max. Pressure | 200 psi |
| Basic Pipe Fitting Shape | Elbow |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Maximum Operating Pressure | 200 psi |
| Fitting Shape | 90 Degrees Elbow |
| Fitting Side A Connection Type | Press-Fit |
| Maximum Operating Temperature | 250 Degrees F |
| Minimum Operating Temperature | 0 Degrees F |
| O-Ring Material | EPDM |
| Fitting Side B Connection Type | FTG |
| Application | Potable Water |
| Fitting Material | Copper |
| Operating Temperature - Maximum | 250 Degrees F |
| Connector Type | Adapter |
| Operating Temperature - Minimum | 0 Degrees F |
| For Media Type | Potable Water |
| Fitting Side 1 Connection Type | Press-fit |
| Operating Pressure - Maximum | 200 psi |
| Center Stop Type | Dimple Center Stop |
| Fitting Side 2 Connection Type | FTG |
