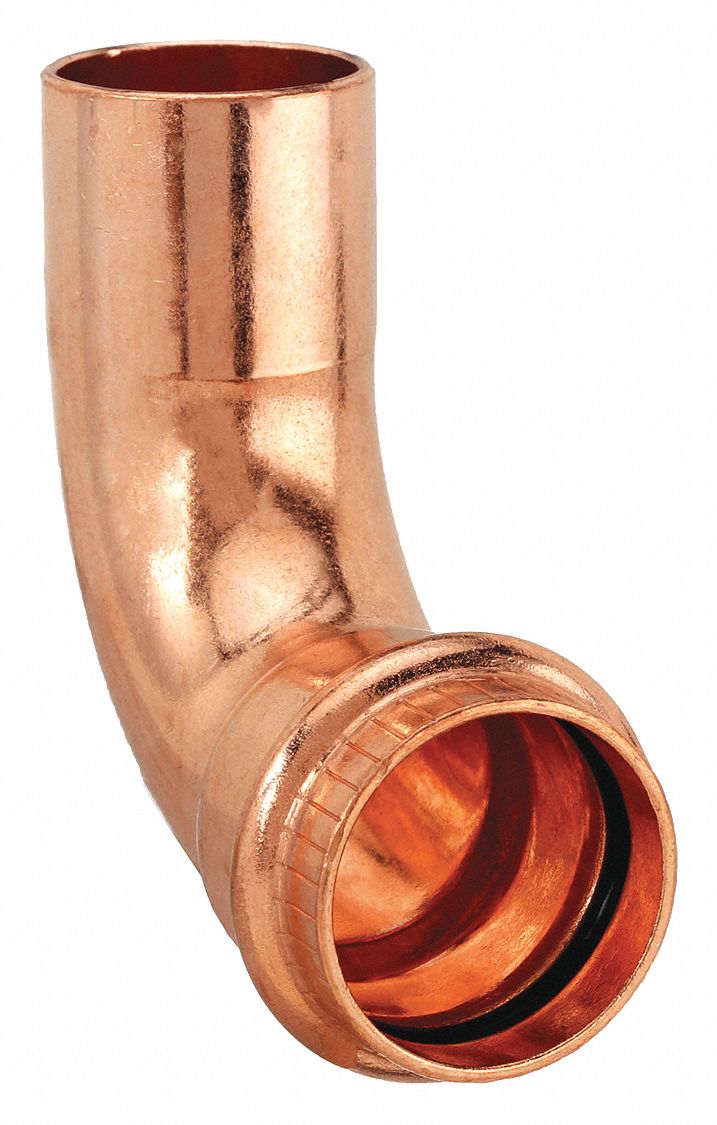

Viega Propress 77347 Crimp Elbow Fitting

Viega Propress 77347 Crimp Elbow Fitting, 90° Elbow, 1/2 in CTS x 1/2 in CTS, Press-fit x FTG, Copper

$5.58 - $5.58
$5.58
$5.58 - $5.58
$5.58

These press tube fittings are suitable for plumbing applications with potable water. They crimp onto tubing and have a sealing O-ring to ensure a secure, leaktight connection.

Country of Origin United States
Tube Size 1/2 in x 1/2 in
Pipe Size - Pipe Fitting 1/2 in x 1/2 in
Pipe Size (Fittings) 1/2" x 1/2"
Fitting Side B Copper Tube Size 1/2 in
Fitting Side A Copper Tube Size 1/2 in
Fitting Side 1 Copper Tube Size 1/2 in
Fitting Side 2 Copper Tube Size 1/2 in
Tube Fitting Material Copper
Specific Fitting Shape 90 Degrees Street Elbow Adapter
Fitting Connection Type Press x Street
Basic Pipe Fitting Shape Elbow
Basic Pipe Fitting Material Metal
Max. Pressure 200 psi
Pipe Fitting Connection Type Press x Street
Temp. Range 0 Degrees to 250 Degrees F
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Specific Pipe Fitting Shape 90 Degrees Street Elbow
Standards ASTM B75, ASTM B88
Fitting Side A Connection Type Press-Fit
Minimum Operating Temperature 0 Degrees F
O-Ring Material EPDM
Fitting Side B Connection Type FTG
Fitting Material Copper
Fitting Shape 90 Degrees Elbow
Application Potable Water
Maximum Operating Temperature 250 Degrees F
Maximum Operating Pressure 200 psi
Fitting Side 1 Connection Type Press-fit
Operating Temperature - Maximum 250 Degrees F
Connector Type Adapter
For Media Type Potable Water
Operating Temperature - Minimum 0 Degrees F
Operating Pressure - Maximum 200 psi
Fitting Side 2 Connection Type FTG
Center Stop Type Dimple Center Stop
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
