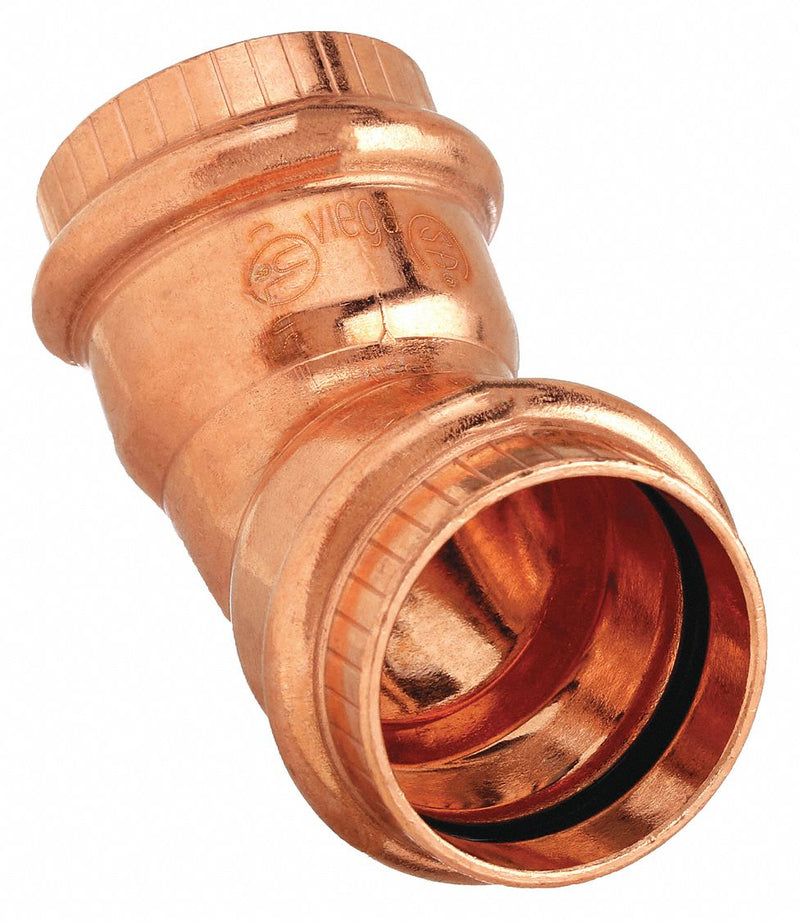

Viega Propress 77607 Crimp Elbow Fitting, 45° Elbow, 1/2 in CTS x 1/2 in CTS, Press-fit x Press-fit
Original price
$6.14
-
Original price
$6.14
Original price
$6.14
$6.14
-
$6.14
Current price
$6.14
Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 1/2 in, Fitting Side B Copper Tube Size 1/2 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape 45 Degrees Elbow, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88
| Tube Fitting Material | Copper |
|---|---|
| Specific Fitting Shape | 45 Degrees Elbow |
| Fitting Connection Type | Press x Press |
| Specific Pipe Fitting Shape | 45 Degrees Elbow |
| Basic Pipe Fitting Shape | Elbow |
| Basic Pipe Fitting Material | Metal |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Max. Pressure | 200 psi |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Standards | ASTM B75, ASTM B88 |
| Pipe Fitting Connection Type | Press x Press |
| Minimum Operating Temperature | 0 Degrees F |
| Application | Potable Water |
| Fitting Side A Connection Type | Press-Fit |
| Fitting Shape | 45 Degrees Elbow |
| O-Ring Material | EPDM |
| Fitting Material | Copper |
| Maximum Operating Temperature | 250 Degrees F |
| Fitting Side B Connection Type | Press-Fit |
| Maximum Operating Pressure | 200 psi |
| Fitting Side 2 Connection Type | Press-fit |
| Operating Temperature - Minimum | 0 Degrees F |
| Operating Temperature - Maximum | 250 Degrees F |
| For Media Type | Potable Water |
| Operating Pressure - Maximum | 200 psi |
| Fitting Side 1 Connection Type | Press-fit |
| Center Stop Type | Dimple Center Stop |
| Connector Type | Coupling |
| Restrictions | This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption). |
| Country of Origin | Germany |
