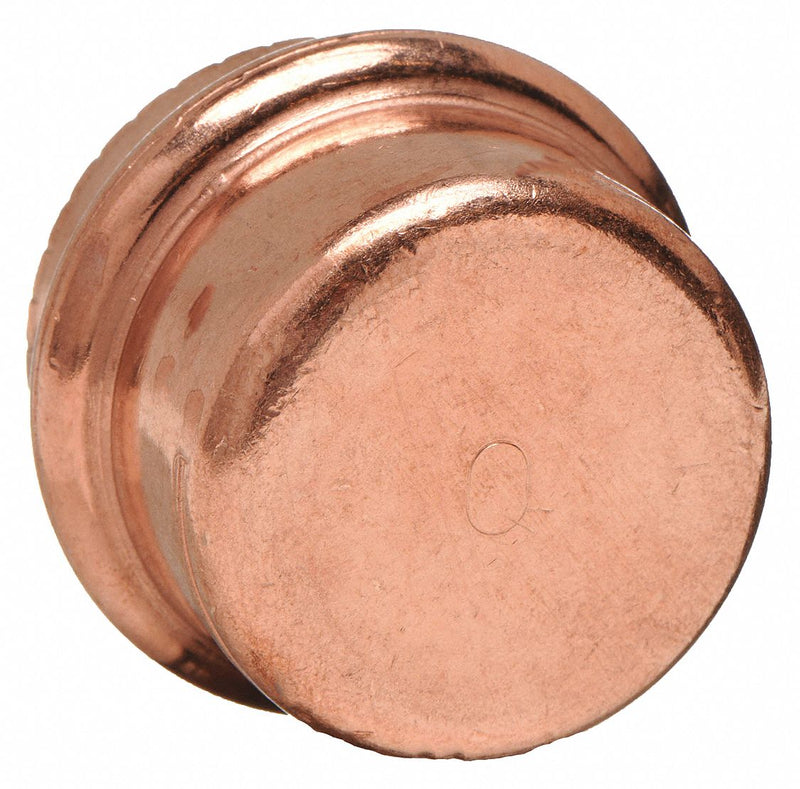

Viega Propress 77717 Crimp Fitting Cap, 3/4 in CTS, Press-fit, Copper, EPDM O-Ring
Original price
$19.96
-
Original price
$19.96
Original price
$19.96
$19.96
-
$19.96
Current price
$19.96
Crimp Fitting Cap, Application Potable Water, Compatible Copper Tube Size 3/4 in, Fitting Connection Type Press-fit, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape Cap, Overall Length 1 1/16 in, Includes Center Stop Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards CRN, CSA, FM, IAPMO (UPC), ICC, NFPA 13D, NFPA 13R, NSF/ANSI 372, NSF/ANSI 61, PHCC, UL Listed, Minimum Operating Temperature 0 Degrees F
| Tube Fitting Material | Copper |
|---|---|
| Specific Fitting Shape | Cap |
| Fitting Connection Type | Press-fit |
| Standards | CRN, CSA, FM, IAPMO (UPC), ICC, NFPA 13D, NFPA 13R, NSF/ANSI 372, NSF/ANSI 61, PHCC, UL Listed |
| Specific Pipe Fitting Shape | Cap |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Basic Pipe Fitting Shape | Cap |
| Basic Pipe Fitting Material | Metal |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Pipe Fitting Connection Type | Press |
| Max. Pressure | 200 psi |
| Fitting Shape | Cap |
| Fitting Material | Copper |
| Maximum Operating Temperature | 250 Degrees F |
| Application | Potable Water |
| Maximum Operating Pressure | 200 psi |
| Minimum Operating Temperature | 0 Degrees F |
| O-Ring Material | EPDM |
| Operating Pressure - Maximum | 200 psi |
| Operating Temperature - Maximum | 250 Degrees F |
| For Media Type | Potable Water |
| Operating Temperature - Minimum | 0 Degrees F |
| Restrictions | This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption). |
| Country of Origin | Germany |
