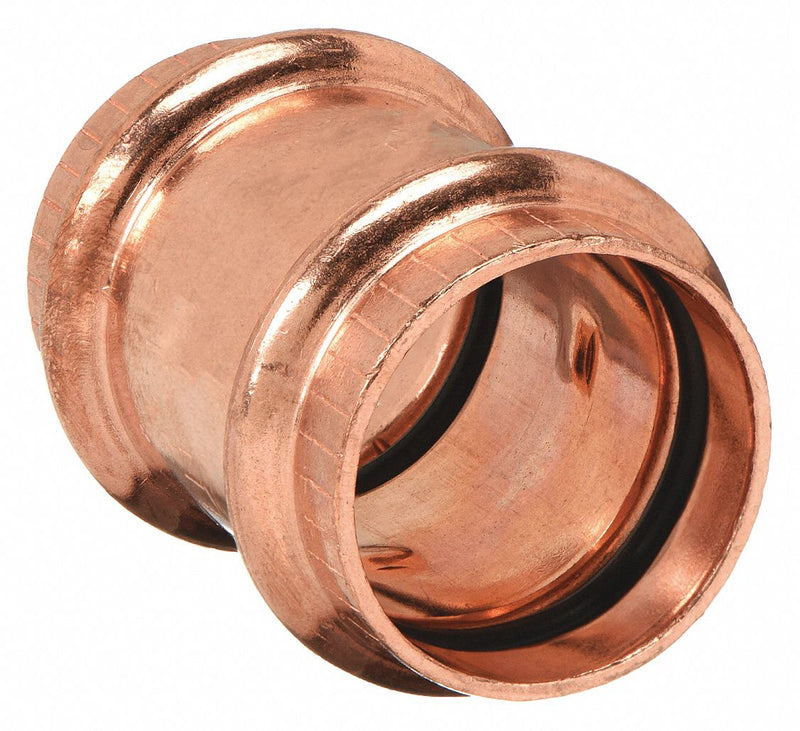

Viega Propress 78052 Crimp Coupling Fitting

Viega Propress 78052 Crimp Coupling Fitting, Straight, 3/4 in CTS x 3/4 in CTS, Press-fit x Press-fit

$7.09 - $7.09
$7.09
$7.09 - $7.09
$7.09

These press tube fittings are suitable for plumbing applications with potable water. They crimp onto tubing and have a sealing O-ring to ensure a secure, leaktight connection.

Country of Origin United States
Tube Size 3/4 in x 3/4 in
Pipe Size - Pipe Fitting 3/4 in x 3/4 in
Pipe Size (Fittings) 3/4" x 3/4"
Fitting Side A Copper Tube Size 3/4 in
Fitting Side B Copper Tube Size 3/4 in
Overall Length 2 in
Fitting Side 2 Copper Tube Size 3/4 in
Fitting Side 1 Copper Tube Size 3/4 in
Tube Fitting Material Copper
Specific Fitting Shape Straight Coupling
Fitting Connection Type Press x Press
Standards ASTM B75, ASTM B88
Temp. Range 0 Degrees to 250 Degrees F
Pipe Fitting Connection Type Press x Press
Specific Pipe Fitting Shape Coupling
Basic Pipe Fitting Shape Coupling
Basic Pipe Fitting Material Metal
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Max. Pressure 200 psi
Fitting Side B Connection Type Press-Fit
Application Potable Water
Includes Center Stop Dimple Center Stop
Maximum Operating Temperature 250 Degrees F
O-Ring Material EPDM
Fitting Side A Connection Type Press-Fit
Fitting Material Copper
Minimum Operating Temperature 0 Degrees F
Maximum Operating Pressure 200 psi
Fitting Shape Straight
Fitting Side 1 Connection Type Press-fit
For Media Type Potable Water
Operating Temperature - Maximum 250 Degrees F
Operating Temperature - Minimum 0 Degrees F
Center Stop Type Dimple Center Stop
Connector Type Coupling
Fitting Side 2 Connection Type Press-fit
Operating Pressure - Maximum 200 psi
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
