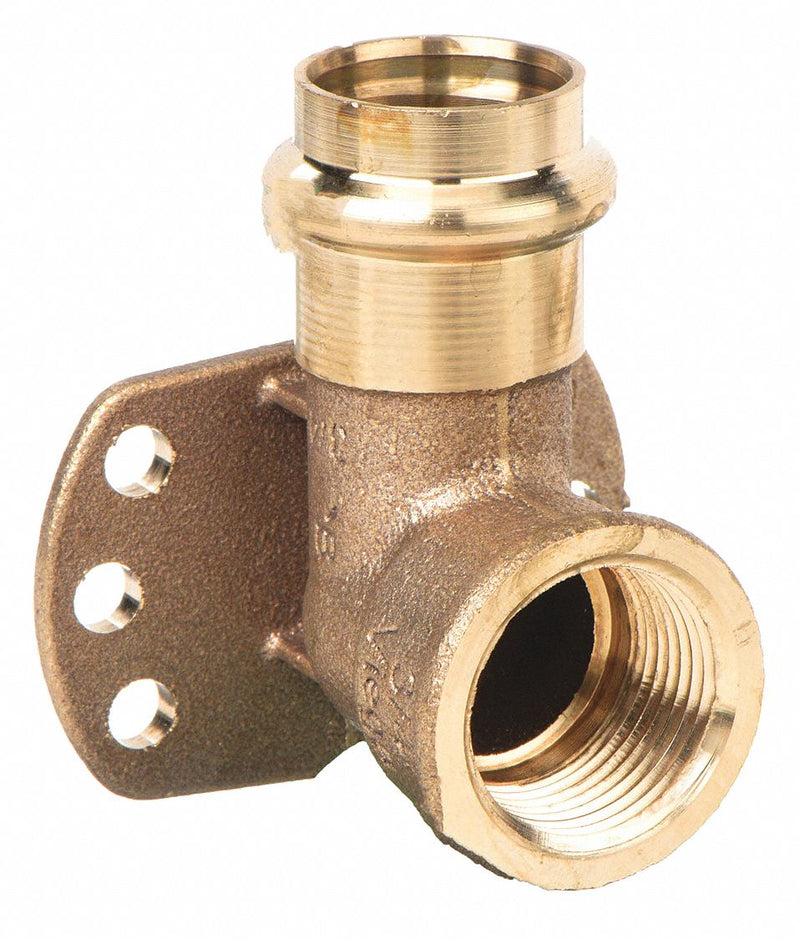

Viega Propress 79195 Crimp Elbow Fitting, 90° Drop Ear Elbow, 3/4 in CTS x 3/4 in Pipe, Press-fit x FNPT, Bronze
Original price
$49.97
-
Original price
$49.97
Original price
$49.97
$49.97
-
$49.97
Current price
$49.97
Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FNPT, Fitting Side A Copper Tube Size 3/4 in, Fitting Material Bronze, Fitting Side B Pipe Size 3/4 in, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Drop Ear Elbow Adapter, Overall Length 2 13/16 in, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
| Tube Fitting Material | Bronze |
|---|---|
| Specific Fitting Shape | 90 Degrees Drop Ear Elbow Adapter |
| Fitting Connection Type | Press x Female Pipe Thread |
| Pipe Fitting Connection Type | Press x Female Pipe Thread |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Specific Pipe Fitting Shape | 90 Degrees Elbow |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Basic Pipe Fitting Shape | Elbow |
| Max. Pressure | 200 psi |
| Basic Pipe Fitting Material | Metal |
| Standards | ASTM B75, ASTM B88 |
| Fitting Shape | 90 Degrees Elbow |
| Fitting Side A Connection Type | Press-Fit |
| Maximum Operating Pressure | 200 psi |
| Application | Potable Water |
| Minimum Operating Temperature | 0 Degrees F |
| Fitting Side B Connection Type | FNPT |
| O-Ring Material | EPDM |
| Fitting Material | Bronze |
| Maximum Operating Temperature | 250 Degrees F |
| Fitting Side 1 Connection Type | Press-fit |
| Operating Temperature - Maximum | 250 Degrees F |
| Operating Temperature - Minimum | 0 Degrees F |
| Fitting Side 2 Connection Type | FNPT |
| For Media Type | Potable Water |
| Operating Pressure - Maximum | 200 psi |
| Connector Type | Adapter |
| Center Stop Type | Dimple Center Stop |
