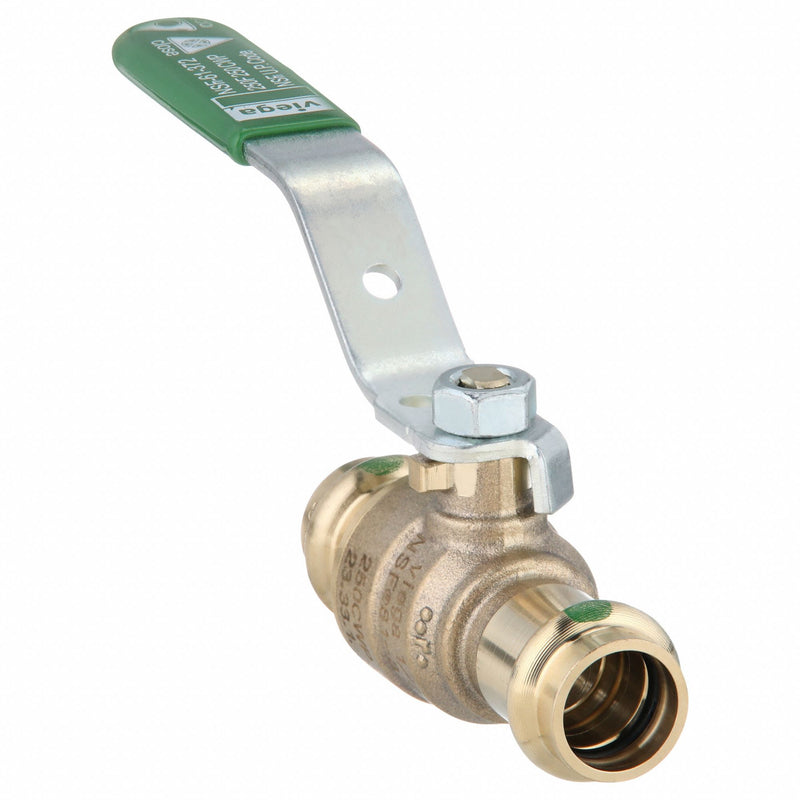

Viega Propress 79920 Manual Two-Way Ball Valve, 1/2 in, Bronze, Press x Press
Original price
$51.60
-
Original price
$51.60
Original price
$51.60
$51.60
-
$51.60
Current price
$51.60
Manual Two-Way Ball Valve, Body Material Bronze, For Media Potable Water, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 200 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.2 in Hg, Ball Material Stainless Steel, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever
| Ball Material | Stainless Steel |
|---|---|
| Body Style | Inline |
| Ball Port Style | Full Port |
| Valve Ways | 2-Way |
| Valve Structure | Two-Piece |
| For Media | Potable Water |
| Connection Type | Press x Press |
| Stem Type | Blowout Resistant |
| Standards | 13D and 13R |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Features | Smart Connect, Zero Lead |
| Seat Material | PTFE |
| Max. Pressure | 200 PSI CWP |
| Stem Material | Brass |
| Temp. Range | 0 Degrees F to 250 Degrees F |
| Handle Type | Lever |
| Handle Material | Metal |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Seal Material | EPDM |
| Products By Industry | General Approach |
| Color - Valve Handle | Green |
| Vacuum Service Rating | -29.2 in Hg |
| Maximum Pressure - Combustible Gas | Not Rated |
| Handle - Locking | Non-Locking |
| NSF Certifications for Food and Drinking Water | NSF 61 |
| Vented Ball Valve | Non-Vented |
| Connection Type - Side 1 | Press |
| Connection Type - Side 2 | Press |
| 3-A Standard Compliance | Not Rated |
| Operating Temperature - Minimum | 0 Degrees F |
| Maximum Pressure - Steam | 15 PSI WSP |
| Operating Temperature - Maximum | 250 Degrees F |
| Valve Series | ProPress |
| Restrictions | This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption). |
| Country of Origin | Germany |
