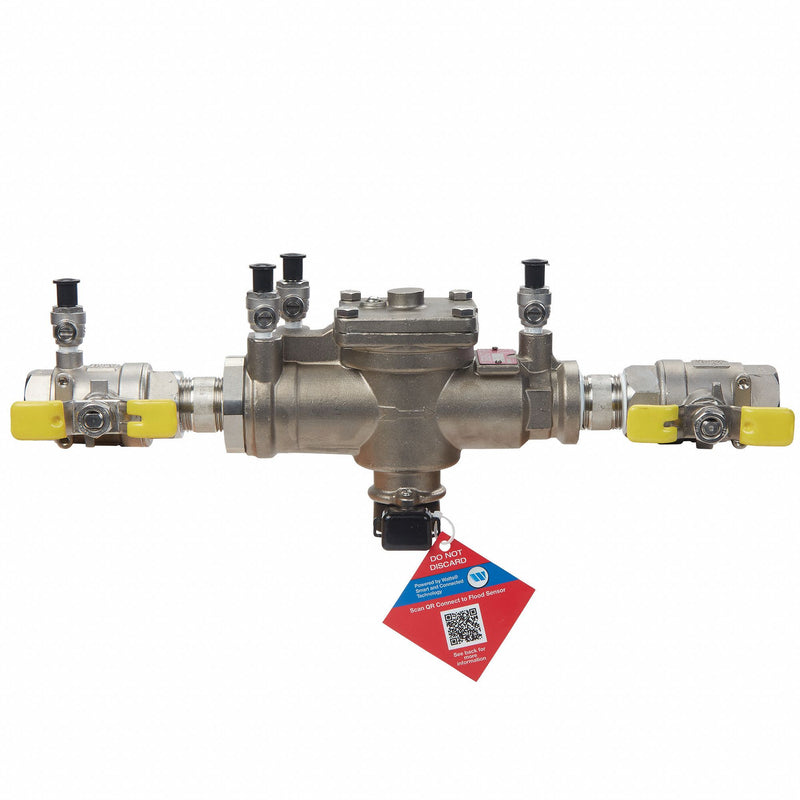

Watts 1 SS009-QT Backflow Preventer, Reduced Pressure Zone, 1 in FNPT, 175 psi, 316 Stainless Steel, SS009 Series
Original price
$5,957.89
-
Original price
$5,957.89
Original price
$5,957.89
$5,957.89
-
$5,957.89
Current price
$5,957.89
Backflow Preventer, Size 1", 175 psi
| Body Material | Stainless Steel |
| Temp. Range | 33 Degrees to 180 Degrees F |
| Max. Pressure | 175 psi |
| Standards | ASSE 1013, AWWA C511-92, NSF 61, USC Manual 9th Edition |
| Max. Temp. | 180 Degrees F |
| Connection | NPT |
| Features | All Wetted Valve Components - Test Cocks, Ball Valve Shutoffs, Pipe Nipples, Body and Cover, Check Modules and Relief Valve Assembly are Made from Lead Free Stainless Steel or Plastic Construction, Bolted On, Top Entry Single Access Cover for Ease of Maintenance, Check and Relief Valve Seats are Replaceable without the Use of Special Tools, Internal Relief Valve for Right and Left Hand Installations, Investment Cast 316 Stainless Steel Assembly for Corrosion Resistance, Modular Check Construction Featuring Nonreversible Checks with Captured Springs for Simplified Servicing, True Line-Sized Construction Allows the Check Modules to Open Further Allowing Dirt and Debris to Pass More Freely Reducing Check Fouling |
| Flow | 60 gpm |
| Seat Material | Stainless Steel |
| Shut-Off Valve Included | Ball Valve |
| Handle Material | 304 Stainless Steel |
| Operating Temperature - Maximum | 180 Degrees F |
| Includes Flow Meter | No Flow Meter |
| Handle Type | Tee |
| Includes Flood Protection | No Flood Protection |
| Connection Type - Side 2 | NPT |
| Operating Temperature - Minimum | 33 Degrees F |
| Includes Freeze Sensor | No Freeze Sensor |
| Maximum Pressure - Operating | 175 psi |
| Connection Gender - Side 1 | Female |
| Connection Type - Side 1 | NPT |
| Backflow Preventer Type | Reduced Pressure Assembly (RP) |
| Manufacturer Warranty | 1 yr |
| Number of Test Ports | 4 |
| Connection Gender - Side 2 | Female |
| Includes Strainer | No Strainer |
| Hazard Protection Level | High Health Hazard |
| For Media | Water |
| Valve Series | SS009 |
