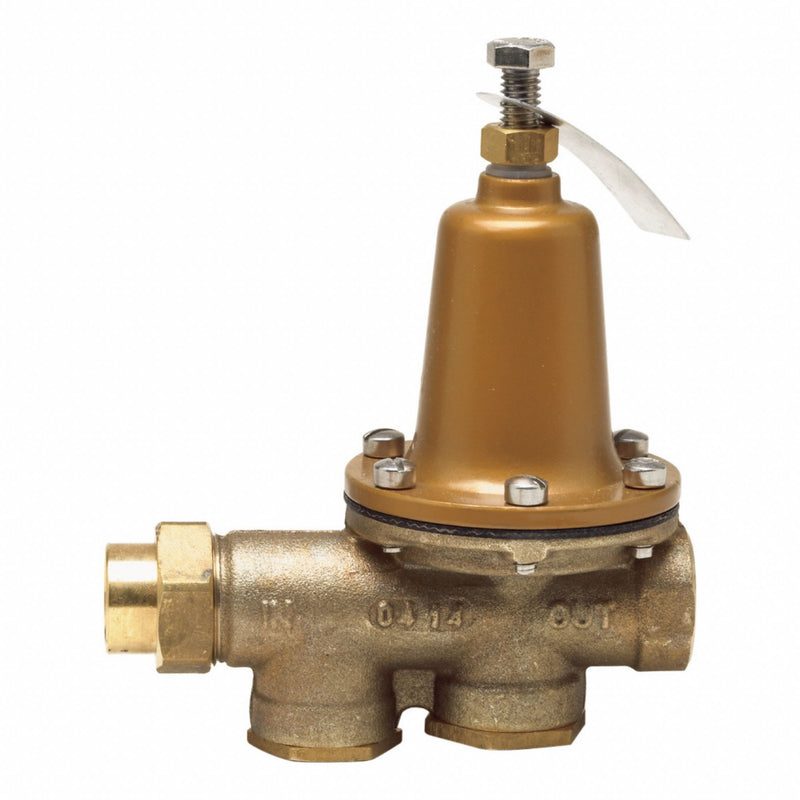

Watts 3/4 LF 25 AUB-Z3 Water Pressure Reducing Valve, 3/4 in, FNPT Union x FNPT, Lead Free Brass, 25-75 psi
Original price
$453.01
-
Original price
$453.01
Original price
$453.01
$453.01
-
$453.01
Current price
$453.01
Water Pressure Reducing Valve, Valve Type Standard, Strainer Yes, Material Lead Free Brass, Pipe Size 3/4 In., Preset Pressure Settings 50 psi, Pressure Adjustment Range 25 to 75 psi, Connection Type FNPT Union x FNPT, Height 8 In., Length 6-7/8 In., Max. Temp. 160 Degrees F, Max. Pressure 300 psi, Standards ASSE 1003, ANSI A112.26.2, CSA B356, Standard Plumbing Code Military Standard MIL-V-18146B Type 1, IAPMO
| Connection Type | FNPT Union x FNPT |
|---|---|
| Body Material | Lead Free Copper Silicon Alloy |
| Max. Pressure | 300 psi |
| Max. Temp. | 160 Degrees F |
| Material | Lead Free Brass |
| Pressure Adjustment Range | 25 to 75 psi |
| Valve Type | Standard |
| Application | Commercial Use, Residential Use |
| Preset Pressure Settings | 50 psi |
| Standards | ANSI A112.26.2, ASSE 1003, CSA B356, IAPMO, Standard Plumbing Code Military Standard MIL-V-18146B Type 1 |
| Strainer | Yes |
| Connection | NPT Threaded Female Union Inlet x NPT Female Outlet |
| Material of Construction | Lead-Free Brass |
| Seat Material | Polymer |
| Disc Material | EPDM |
| Factory Set Pressure | 50 psi |
| NSF Certifications for Food and Drinking Water | NSF 61G |
| Pilot Adjustment - Minimum | 25 psi |
| Port Design | Full Port |
| Coating/Lining | NSF Listed Fusion Bonded Epoxy Lining and Coating |
| Outlet Connection Type | NPT |
| Inlet Connection Type | NPT |
| Pilot Adjustment - Maximum | 75 psi |
| For Media | Water |
| Operating Pressure - Maximum | 300 psi |
| Includes Strainer | Strainer Included |
| Fluid Temperature - Maximum | 180 Degrees F |
| Country of Origin | United States |
